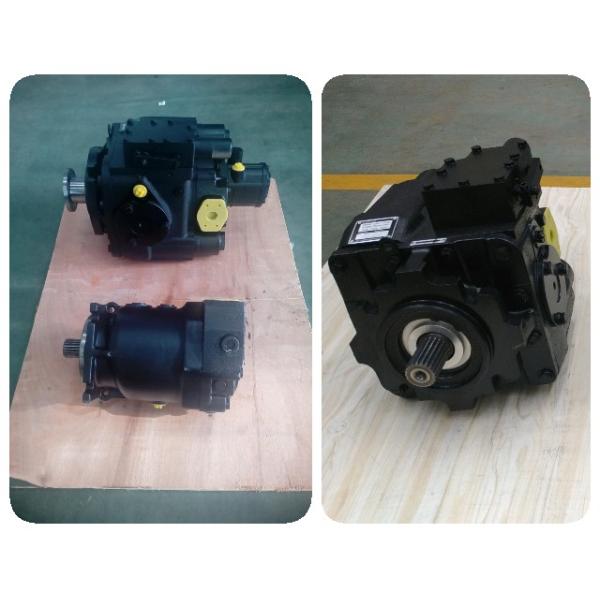

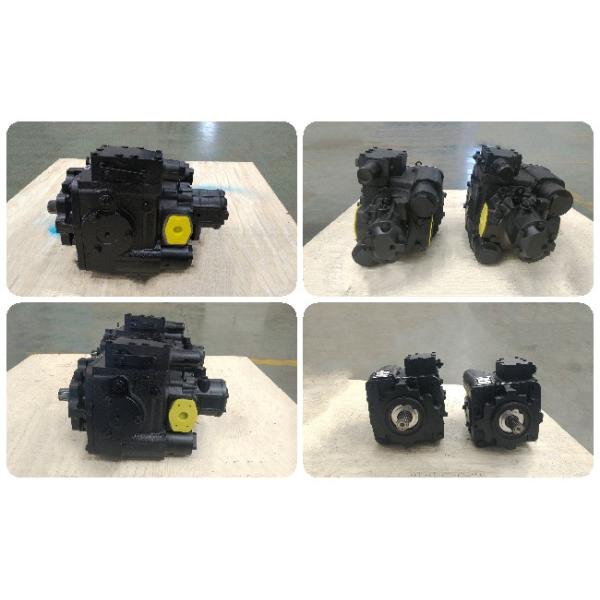

Concrete Mixer Truck Hydraulic Pump 420 Bar transient pressure
Concrete Mixer Truck Hydraulic Pump 420 Bar transient pressure
Concrete Mixer Truck Hydraulic Pump 420 Bar transient pressure
Concrete Mixer Truck Hydraulic Pump 420 Bar transient pressure
Concrete Mixer Truck Hydraulic Pump 420 Bar transient pressure
Concrete Mixer Truck Hydraulic Pump 420 Bar transient pressure
Specifications
Brand Name :
HIGHLAND
Model Number :
PV22
Certification :
PATENT CERTIFICATE
Place of Origin :
CHINA DEZHOU
MOQ :
1 set
Price :
USD720~USD950/set
Payment Terms :
T/T
Supply Ability :
200 sets per month
Delivery Time :
7 workind days
Packaging Details :
Plywood case
Product name :
China Highland Concrete Mixer Truck Hydraulic Pump manufacturer
Max displacement :
69.8cc/r PV22
Type :
Hydraulic system components
Max pressure :
420 Bar transient pressure
Material :
Cast iron
Color :
Black, blue or according to customer request
Medium :
Hydraulic oil
Warranty :
1 year
Function :
Hydraulic system components
Package :
Plywood case
Description

China Highland Concrete Mixer Truck Hydraulic Pump Manufacturer

Concrete Mixer Truck Hydraulic Pump Manufacturer based introduction:

Highland hydraulic is a famouse manufacturer making hydraulic pumps motors in China, which is mostly used for concrete mixer truck. The function of concrete mixer truck hydraulic pump is to convert the mechanical energy of power machine into the pressure energy of liquid. The output flow can be adjusted according to need is called variable displacement hydraulic pump, the flow can not be adjusted is called fixed displacement hydraulic pump. Our concrete mixer truck hydraulic pump is variable displacement axial flow piston pump.

Concrete Mixer Truck Hydraulic Pump performance:

  • Concrete Mixer Truck Hydraulic Pump with very long service life.
  • Concrete Mixer Truck Hydraulic Pump with Low operating noise.
  • Flow direction changes when the swash plate is moved through the neutral position
  • Hydraulic pumps have strong load capacity of axial drive shaft.
  • Control lever with short response times.
  • Axial flow piston pumps swash plate design.

Concrete Mixer Truck Hydraulic Pump 420 Bar transient pressure

Concrete Mixer Truck Hydraulic Pump technical specifications:

20 series PV hydraulic pump and MF hydraulic motor 20 21 22 23
Displacement Max displacement ml/r 33.3 51.6 69.8 89.0
Speed Max continuous working speed
(Full load condition)		 r/min 3500 3500 3200 3200
Rated speed r/min 2500
Min continuous working speed r/min 500
Pressure Rated working pressure Mpa 35
Max working pressure (transient) Mpa 42
Continuous working pressure Mpa 30
Allowable shell pressure (Absolute) Mpa Constant0.25, Peak value0.5
Torque Continuous output torque
(Under continuous working pressure)		 Nm 162.3 252.3 342.6 432.9
Max output torque Nm 227 353 480 606
Power Continuous output power KW 45 79 107 139
Max power KW 62 95 114 150
Temperature Allowable shell temperature ℃ 80
Max working temperature of oil tank ℃ 70
Weight

PV series hydraulic pump

hydraulic oil emptying

 kg 45 53 63 78

MF series hydraulic motor

hydraulic oil emptying

 kg 30 34 40 47

Concrete Mixer Truck Hydraulic Pump 420 Bar transient pressure

Highland service for Concrete Mixer Truck Hydraulic Pump:

Quick response within 24 hours.

Provide technical guidance.

Help customer solve hydraulic confusion.

Excellent after-sale service.

100% factory testing before shipment.

Preferential factory price, short delivery time.

FAQ for Concrete Mixer Truck Hydraulic Pump:

1. Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

2. What is your payment term ?

We accept T/T, Western Union etc.

3. How long is the validity of quotation ?

Generally, our price is valid within 7 working days from the date of quotation.The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market.

4. What is your delivery time ?

Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time depend on the order quantity.
