Specifications
Brand Name :
HIGHLAND
Model Number :
HPV110
Place of Origin :
CHINA DEZHOU
Certification :
PATENT CERTIFICATE
MOQ :
5 Sets
Price :
USD900-1400/Set
Packaging Details :
Plywood Case
Delivery Time :
10 Working Days
Payment Terms :
T/T, Western Union
Supply Ability :
200 Sets/Month
Principle :
Hydraulic Transmission
Standard Export Package :
Plywood Case
Structure :
Variable Displacement Piston Pump
Max Pressure :
42Mpa
Color :
Black
Function :
Hydraulic System Components
Rated Pressure :
35Mpa
Warranty :
1 Year
Description

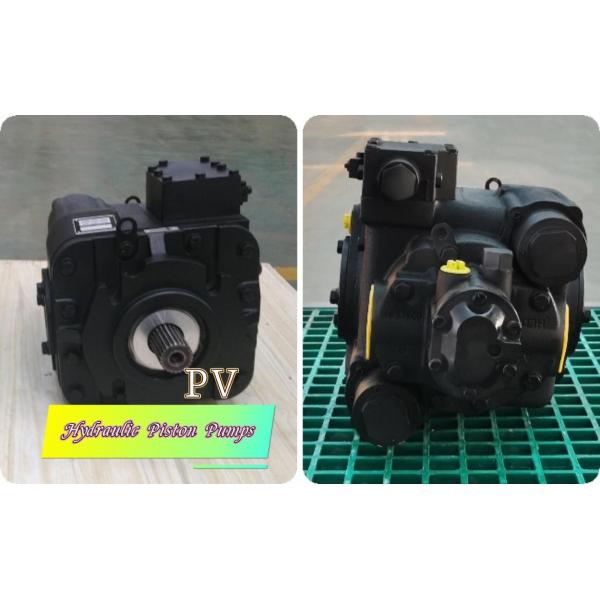

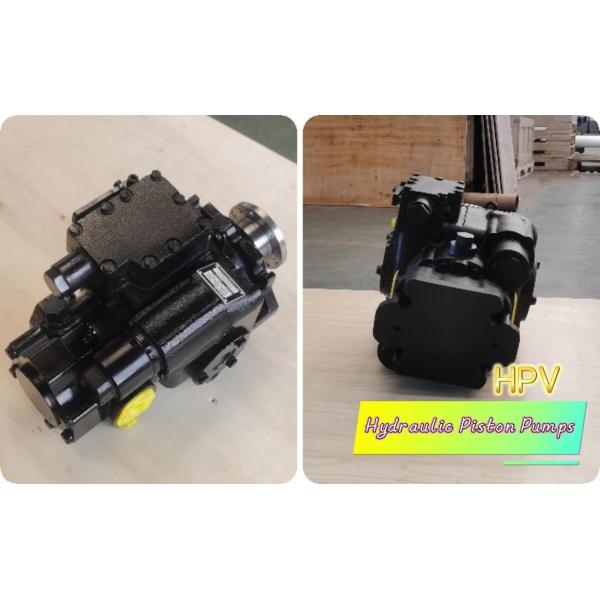

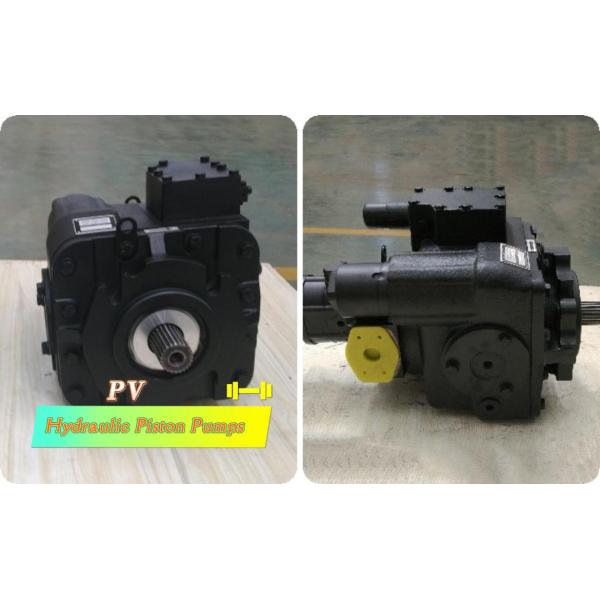

35Mpa Rated Pressure High Pressure Piston Pump for Heavy Duty Needs

Product Description:

Hydraulic Piston Pumps

Hydraulic Piston Pumps, also known as HPV110 hydraulic pump, are high-pressure hydraulic pumps designed for use in various industrial and commercial applications. These pumps are widely used in hydraulic systems to transfer power and control the flow of fluids.

Product Overview

Hydraulic Piston Pumps are an essential component of hydraulic systems and are used in a wide range of industries including construction, manufacturing, agriculture, and mining. These pumps are designed to convert mechanical energy into hydraulic energy, which is then used to operate various hydraulic equipment.

Standard Export Package

All our Hydraulic Piston Pumps come in a sturdy and durable plywood case, ensuring safe and secure transportation to our customers worldwide. The packaging is designed to withstand rough handling and extreme weather conditions, providing maximum protection to the pump during transit.

Pressure Range and Maximum Pressure

Our Hydraulic Piston Pumps are designed to operate at high pressure, making them suitable for heavy-duty applications. The pressure range of our pumps is between 0-42Mpa, making them ideal for use in demanding environments.

Function and Principle

The main function of Hydraulic Piston Pumps is to provide the necessary power for hydraulic systems. These pumps work on the principle of hydraulic transmission, where mechanical energy is converted into hydraulic energy through the movement of pistons.

Piston Pump for Sale

If you are looking for a reliable and high-performance hydraulic piston pump, look no further. Our HPV110 hydraulic pump is available for sale at competitive prices. With its robust design and efficient performance, it is the perfect choice for your hydraulic system needs.

Conclusion

In conclusion, Hydraulic Piston Pumps are a vital component of hydraulic systems, providing the necessary power and control for a wide range of industrial and commercial applications. With our standard export packaging, high-pressure range, and robust design, our HPV110 hydraulic pump is the ideal choice for your hydraulic system needs.

35Mpa Rated Pressure High Pressure Piston Pump for Heavy Duty Needs

Features:

  • Product Name: Hydraulic Piston Pumps
  • Application: Agricultural Harvester And Tractor
  • Pressure Range: High Pressure
  • Hydraulic System: Closed Loop Axial Hydraulic Pump
  • Principle: Hydraulic Transmission
  • Warranty: 1 Year
  • Hydraulic Piston Pump
  • HPV110 Hydraulic Pump
  • Piston Pump for Sale
  • High Pressure Pump

Technical Parameters:

HPV hydraulic pump and HMF hydraulic motor series 30 50 70 90 110 130
Displacement Max displacement ml/r 30 50 70 90 110 130
Speed Max continuous working speed
(Full load condition)
r/min 3500 3500 3200 3200 2900 2900
Rated speed r/min 2500
Min continuous working speed r/min 500
Pressure Rated working pressure Mpa 35
Max working pressure (transient) Mpa 42
Continuous working pressure Mpa 30
Allowable shell pressure (Absolute) Mpa Constant0.25, Peak value0.5
Torque Continuous output torque
(Under continuous working pressure)
Nm 162.3 252.3 342.6 432.9 535.3 632.4
Max output torque Nm 227 353 480 606 749 885
Power Continuous output power KW 45 79 107 139 149 176
Max power KW 62 95 114 150 173 205
Temperature Allowable shell temperature 80
Max working temperature of oil tank 70
Weight HPV series hydraulic pump
hydraulic oil emptying
kg 45 46 63 64 82 88
HMF series hydraulic motor
hydraulic oil emptying
kg 30 30 36 36 36 38

Technical Parameters Hydraulic Piston Pumps
Rated Pressure 35Mpa
Power Source Hydraulic
Standard Export Package Plywood Case
Color Black
Hydraulic System Closed Loop Axial Hydraulic Pump
Principle Hydraulic Transmission
Type Piston Pump
Max Pressure 42Mpa
Warranty 1 Year
Package Plywood Case

35Mpa Rated Pressure High Pressure Piston Pump for Heavy Duty Needs

Applications:

Hydraulic Piston Pumps - HIGHLAND HPV110

HIGHLAND is a well-known brand for high-quality hydraulic pumps, and their HPV110 model is one of their best products. This hydraulic piston pump is designed for heavy-duty applications and is widely used in the agricultural industry. Made of high-quality cast iron, this pump is durable and can withstand high pressure and harsh conditions.

Product Specifications

Brand Name: HIGHLAND

Model Number: HPV110

Place of Origin: CHINA DEZHOU

Certification: PATENT CERTIFICATE

Minimum Order Quantity: 5 Sets

Price: USD900-1400/Set

Packaging Details: Plywood Case

Delivery Time: 10 Working Days

Payment Terms: T/T, Western Union

Supply Ability: 200 Sets/Month

Power Source: Hydraulic

Rated Pressure: 35Mpa

Type: Piston Pump

Material: Cast Iron

Application: Agricultural Harvester and Tractor

Application

The HIGHLAND HPV110 hydraulic piston pump is designed for use in agricultural machinery, specifically in harvesters and tractors. These machines require a powerful and reliable pump to operate their various mechanisms, and the HPV110 is the perfect fit. Its high pressure capabilities and durable material make it suitable for heavy-duty tasks in the field.

Scene

Imagine a large farm with acres of land dedicated to growing crops. The harvest season is approaching, and the farm owner needs to ensure that their harvester and tractor are in top condition. This is where the HIGHLAND HPV110 hydraulic pump comes in. It is installed in the machinery, providing the necessary power to operate the cutting blades, conveyor belts, and other mechanisms. With its high pressure capabilities, it can easily handle the tough and demanding tasks of harvesting.

The durable cast iron material also ensures that the pump can withstand the harsh conditions of the farm, including exposure to dirt, dust, and moisture. It can also handle the constant use and heavy loads of the machinery without breaking down. This makes it a reliable and long-lasting choice for farmers.

Conclusion

The HIGHLAND HPV110 hydraulic piston pump is a top-of-the-line product that is perfect for agricultural applications. With its high-quality construction, high pressure capabilities, and reliable performance, it is a must-have for any farmer looking to improve the efficiency and productivity of their machinery. So if you need a hydraulic pump for your agricultural needs, look no further than the HIGHLAND HPV110.

FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is HIGHLAND.
  • Q: What is the model number of this product?
    A: The model number of this product is HPV110.
  • Q: Where is this product manufactured?
    A: This product is manufactured in CHINA DEZHOU.
  • Q: Is this product certified?
    A: Yes, this product has a PATENT CERTIFICATE.
  • Q: What is the minimum order quantity for this product?
    A: The minimum order quantity for this product is 5 sets.
  • Q: What is the price range for this product?
    A: The price for this product ranges from USD900 to USD1400 per set.
  • Q: How is this product packaged?
    A: This product is packaged in a Plywood Case.
  • Q: What is the estimated delivery time for this product?
    A: The estimated delivery time for this product is 10 working days.
  • Q: What are the accepted payment terms for this product?
    A: The accepted payment terms for this product are T/T and Western Union.
  • Q: What is the supply ability of this product?
    A: The supply ability of this product is 200 sets per month.

35Mpa Rated Pressure High Pressure Piston Pump for Heavy Duty Needs

Tags: High pressure piston pump, 35Mpa rated pressure piston pump, heavy duty piston pump
