High Pressure Hydraulic Piston Pump For Construction Machinery Mixer Truck
High Pressure Hydraulic Piston Pump For Construction Machinery Mixer Truck
High Pressure Hydraulic Piston Pump For Construction Machinery Mixer Truck
High Pressure Hydraulic Piston Pump For Construction Machinery Mixer Truck
High Pressure Hydraulic Piston Pump For Construction Machinery Mixer Truck
High Pressure Hydraulic Piston Pump For Construction Machinery Mixer Truck
Specifications
Brand Name :
HIGHLAND
Model Number :
PV23
Place of Origin :
CHINA DEZHOU
Certification :
PATENT AND ISO CERTIFICATE
MOQ :
5 PCS
Price :
NEGOTIATED PRICE
Packaging Details :
PLYWOOD CASE
Delivery Time :
ACCORDING TO CUSTOMER'S QUANTITY
Payment Terms :
T/T
Supply Ability :
300 SETS/MONTH
Medium :
Hydraulic Oil
Warranty :
1 Year
Material :
Cast Iron
Type :
Variable Displacement Closed Loop Piston Pump
Peak Pressure :
42Mpa
Rated Pressure :
35Mpa
Principle :
Hydraulic Transmission
Pressure :
High Pressure
Description

High Pressure Hydraulic Piston Pump For Construction Machinery Mixer Truck

Product Description:

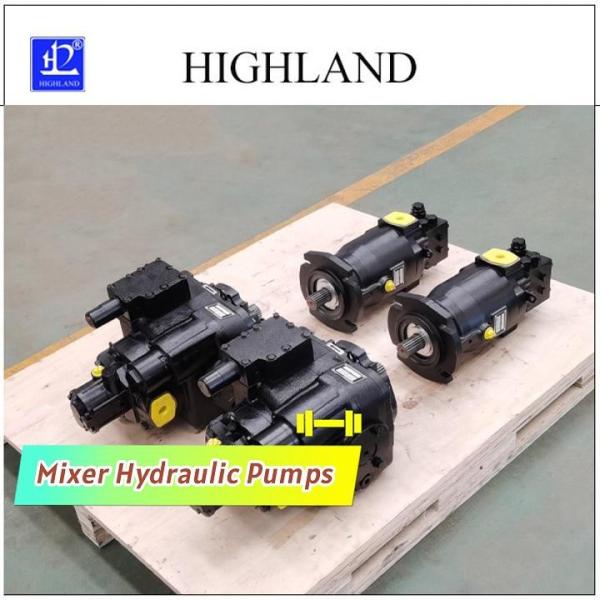

Highland hydraulic pump of the mixer truck is a closed hydraulic transmission system composed of components that interact with each other. The engine power in the mixer is transmitted to the hydraulic pump through the transmission shaft. The force of the hydraulic pump then propels the hydraulic motor, which energizes the reducer to rotates the mixing tank. In turn, this produces the desired functions such as loading, mixing, and unloading.

Features:

The Mixer Truck Hydraulic Pumps have been designed to robustly meet the demands of harsh working conditions. It has an efficient swash plate structure, and is well suited to the closed loop circuit system of mixer hydraulic pumps. It can facilitate a manual servo and hydraulic variable control mode and, what's more, is variable displacement with an integrated charging oil pump.

High Pressure Hydraulic Piston Pump For Construction Machinery Mixer Truck

Technical Parameters:

PV hydraulic pump and MF hydraulic motor series 20 21 22 23
Displacement Max displacement ml/r 33.3 51.6 69.8 90.5
Speed Max continuous working speed
(Full load condition)		 r/min 3500 3500 3200 3200
Rated speed r/min 2500
Min continuous working speed r/min 500
Pressure Rated working pressure Mpa 35
Max working pressure (transient) Mpa 42
Continuous working pressure Mpa 30
Allowable shell pressure (Absolute) Mpa Constant0.25, Peak value0.5
Torque Continuous output torque
(Under continuous working pressure)		 Nm 162.3 252.3 342.6 432.9
Max output torque Nm 227 353 480 606
Power Continuous output power KW 45 79 107 139
Max power KW 62 95 114 150
Temperature Allowable shell temperature ℃ 80
Max working temperature of oil tank ℃ 70
Weight PV series hydraulic pump
hydraulic oil emptying		 kg 45 53 63 78
MF series hydraulic motor
hydraulic oil emptying		 kg 30 34 40 47

High Pressure Hydraulic Piston Pump For Construction Machinery Mixer Truck

Applications:

The mixer truck hydraulic pump motor hydraulic transmission system is an ideal choice due to its various features. It enjoys reliability, lightness, small size, and attractive appearance. In addition, it also has stable rotation, reliable performance, and simple operation. The long service life is another benefit of this system. It can be used to both mix concrete and to transport with agitating, both of which can ensure the quality of the concrete.

Support and Services:

Mixer Hydraulic Pump Technical Support and Service

We provide complete technical support and service for our Mixer Hydraulic Pump products. Our technical support team is available to answer your questions and assist with troubleshooting.

FAQ:

Q1: What is the brand name of the Mixer Hydraulic Pump?

A1: The brand name of the Mixer Hydraulic Pump is HIGHLAND.

Q2: What is the model number of the Mixer Hydraulic Pump?

A2: The model number of the Mixer Hydraulic Pump is PV23.

Q3: Where is the Mixer Hydraulic Pump made?

A3: The Mixer Hydraulic Pump is made in CHINA DEZHOU.

Q4: What kind of certifications does the Mixer Hydraulic Pump have?

A4: The Mixer Hydraulic Pump has PATENT AND ISO CERTIFICATE.

Q5: What is the minimum order quantity for the Mixer Hydraulic Pump?

A5: The minimum order quantity for the Mixer Hydraulic Pump is 5 PCS.

High Pressure Hydraulic Piston Pump For Construction Machinery Mixer Truck
