Specifications
Brand Name :
Helm Tower Hydraulic
Model Number :
MCR10
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C
Supply Ability :
450 sets per month
Delivery Time :
10days
Packaging Details :
wooden case
Warranty :
1 year
Color :
Follow customer's requirement
Application :
Machinery
Pressure :
High Pressure
Delivery time :
5-7 days
Package :
Wooden case
Description

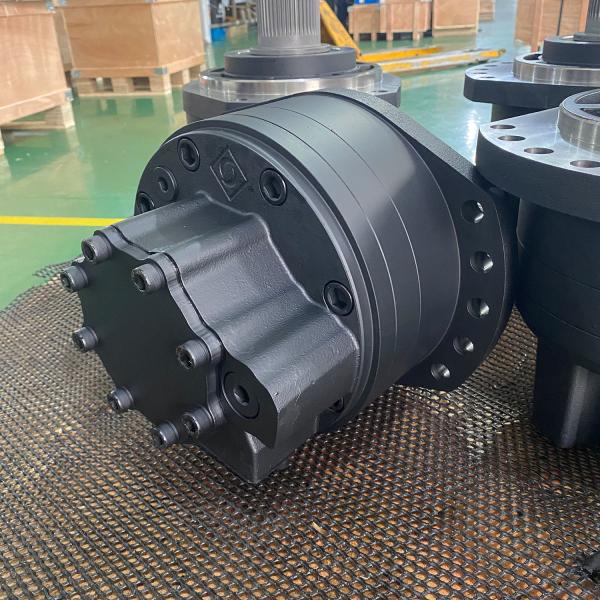

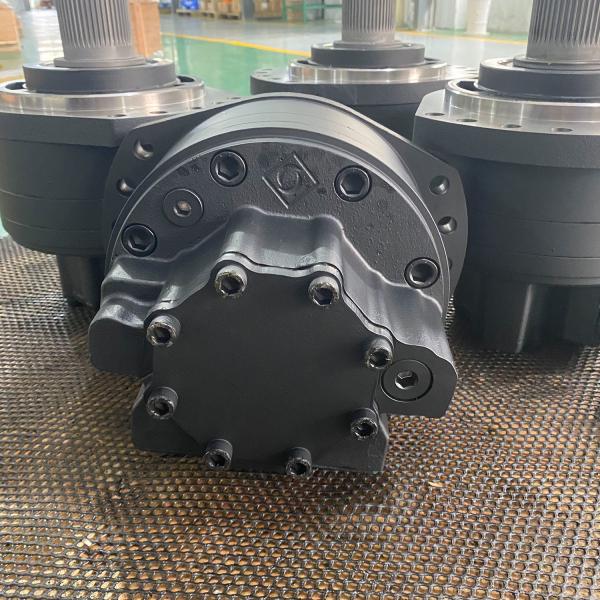

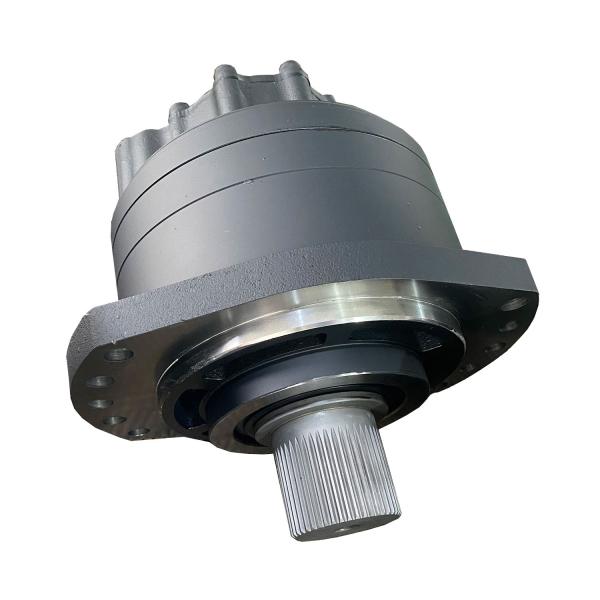

Rexroth MCR10 Hydraulic Motor Final Drive Motor for Skid Steer Loader

1. Radial piston design.
2. Higher output torques, lower output speed, smoother output speed at low speeds.
3. Optimized and modular design capable of delivering high performance.
4. Highly efficient at any speed or operating pressure.
5. Withstand the most extreme operating conditions and require very little maintenance.

Code HMCR10 HMCRE10
Displacement Group 0 1 2 0 1 2
Displacement(ml/r) 780 860 940 1120 1250 1340
Theoretical torque at 10Mpa(N.m) 1240 1367 1494 1780 1987 2130
Rated speed(r/min) 125 100 100 100 80 80
Rated pressure(Mpa) 25 25 25 25 25 25
Rated torque(N.M) 2560 2820 3090 3680 4110 4400
Max.pressure(Mpa) 31.5 31.5 31.5 31.5 31.5 31.5
Max.torque(N.m) 3160 3480 3810 4540 5060 5430
Speed range(r/min) 0-215 0-195 0-180 0-150 0-135 0-125
Max.power(kW) 44 44 44 50 50

50

Radial Piston Design Hydraulic Piston Motor For Skid Steer Loader High Efficiency

Application:

Mining Machinery: Coal Winning Machine,Road Header,Heavy Duty Handling Car, Coal Mine Drill

Engineering Machinery:Skid Steer Loader,Break Machine
