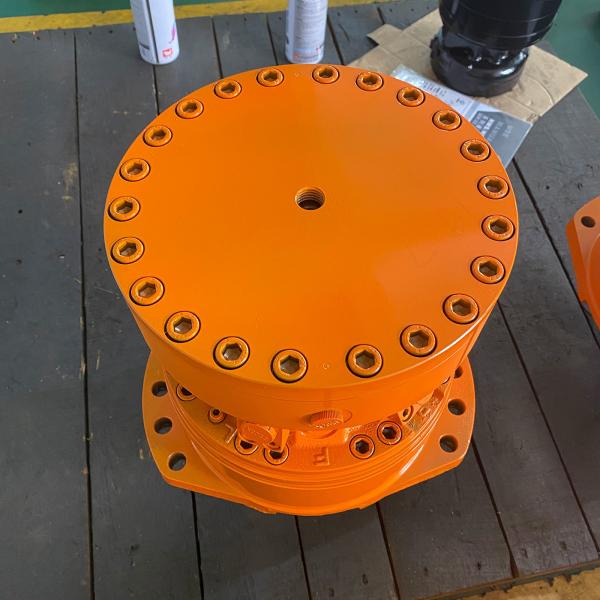

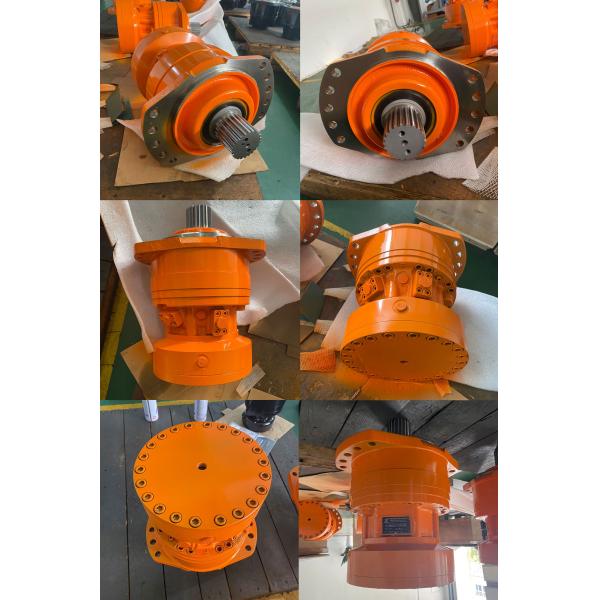

31.5Mpa Axial Piston Hydraulic Motor With Multi Disc Brake
31.5Mpa Axial Piston Hydraulic Motor With Multi Disc Brake
31.5Mpa Axial Piston Hydraulic Motor With Multi Disc Brake
31.5Mpa Axial Piston Hydraulic Motor With Multi Disc Brake
31.5Mpa Axial Piston Hydraulic Motor With Multi Disc Brake
31.5Mpa Axial Piston Hydraulic Motor With Multi Disc Brake
Specifications
Brand Name :
Helm Tower Hydraulic
Model Number :
Poclain MS08
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
5 days
Packaging Details :
Wooden case
Warranty :
1 year
Color :
Follow customer's requirement
Type :
Hydraulic piston motor
Package :
Wooden case
Material :
Steel
Feature :
Low speed high torque
Rated pressure :
25 Mpa
Max pressure :
31.5 Mpa
Condition :
New
Application :
Agriculture/Engineering/Coal mining/Marine /Construction Machinery
Description

MS08 Hydraulic Piston Motor:

Low speed Large torque Hydraulic motor,

Radial piston type,

Adopt Imported Bearing and Oil Seal,

Modular design, High efficiency, High pressure and smooth running even at very low speeds,

Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.


Type

Displacement

 MS08-8 MS08-9 MS08-0 MS08-1 MS08-2
Full/Semi Full/Semi Full/Semi Full/Semi Full/Semi
Displacement(ml/r) 627 313 702 351 780 390 857 428 934 467
Max power(kw) 36 24 36 24 36 24 36 24 36 24

Pressure discrepancy

10MPa Torque (N.m)

 937 459 1049 514 1166 571 1281 628 1396 684
Rated torque(N.m) 2343 2623 2914 3202 3490
Rated pressure(MPa) 25 25 25 25 25
Max pressure(MPa) 40 40 40 35 35
Rated speed(r/min) 70 70 70 65 65
Speed range(r/min) 0-170 0-170 0-170 0-155 0-140

Our company belongs to Wenkui Group Company, which is a professional manufacturer for hydraulic systems, motors,pumps and parts,including:

Japanese IHI vane motor with three series of HVK,HVN,HVL total 10 size which can used in ship crane and port crane.
Poclain MS series Motors and Parts:MS02,MS05,MS08,MS11,MS18,MS25,MS35,MS50,MS83,MS125
Rexroth Motors and Parts:MCR03,MCR05,MCR10,
Hydraulic drum cutter.HDC05,HDC08,HDC11,HDC18,HDC50..
Rexroth Pumps and Parts:A10VSO,A2F,A2FE,A2FO,A6V,A7V,A4VSO,
Danfoss Orbit Motor: OMP,OMR,OMS,OMT,OMV,OMM,
Vickers: PVB,PVQ,PVH,V,Cartridge kits,
Komatsu pumps:705,704series
Daikin pump:V8,V15,V38 etc.
Hydraulic radial piston pump: YCY/MCY/SCY/PCY series ,RK series
Hydraulic Winch, Rexroth GFT,GFB Series Gearbox..
