0-170 R/Min Hyd Drive Motor , 2343-3490 N.M Hydraulic Wheel Drive Motor
0-170 R/Min Hyd Drive Motor , 2343-3490 N.M Hydraulic Wheel Drive Motor
0-170 R/Min Hyd Drive Motor , 2343-3490 N.M Hydraulic Wheel Drive Motor
0-170 R/Min Hyd Drive Motor , 2343-3490 N.M Hydraulic Wheel Drive Motor
0-170 R/Min Hyd Drive Motor , 2343-3490 N.M Hydraulic Wheel Drive Motor
0-170 R/Min Hyd Drive Motor , 2343-3490 N.M Hydraulic Wheel Drive Motor
Specifications
Brand Name :
Helm Tower
Model Number :
MS08
Certification :
ISO 9001
Place of Origin :
Ningbo
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
7-15 working days
Packaging Details :
Standard Export Wooden Case
Type :
piston motor
Color :
customized
Speed :
0-170 r/min
Torque :
2343-3490 N.m
Rated pressure :
25 MPa
Max. pressure :
40 MPa
Description

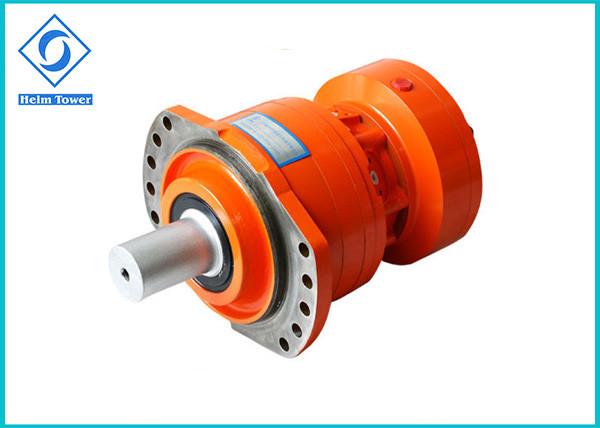

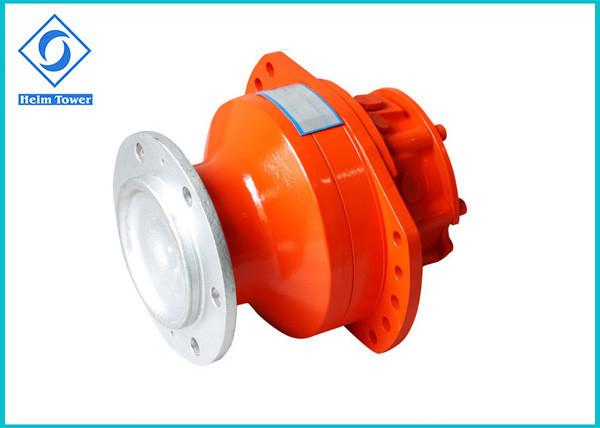

0-170 R/Min Hyd Drive Motor , 2343-3490 N.M Hydraulic Wheel Drive Motor

Features:

MS08 series hydraulic motor:

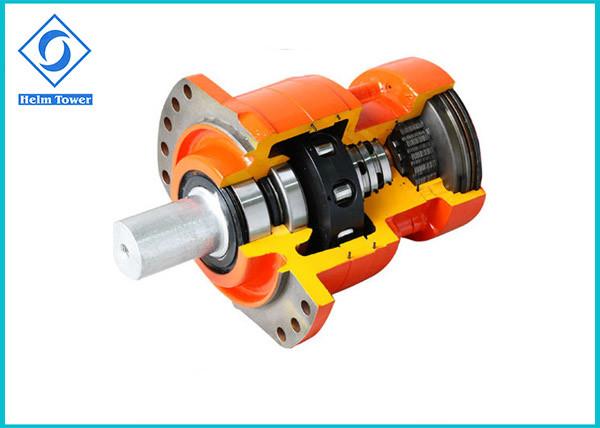

This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.

It is widely applied in Construction Machinery( skid steer loader,down-the-hole drill,rotary drill,mini and midi excavator,mixer truck, cutting machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), Marine Machinery(gantry crane), etc.

MS08 Displacement Diagram

Type

Displacement

 MS08-8 MS08-9 MS08-0 MS08-1 MS08-2
Full/Semi Full/Semi Full/Semi Full/Semi Full/Semi
Displacement(ml/r) 627 313 702 351 780 390 857 428 934 467
Max power(kw) 36 24 36 24 36 24 36 24 36 24

Pressure discrepancy

10MPa Torque (N.m)

 937 459 1049 514 1166 571 1281 628 1396 684
Rated torque(N.m) 2343 2623 2914 3202 3490
Rated pressure(MPa) 25 25 25 25 25
Max pressure(MPa) 40 40 40 35 35
Rated speed(r/min) 70 70 70 65 65
Speed range(r/min) 0-170 0-170 0-170 0-155 0-140

0-170 R/Min Hyd Drive Motor , 2343-3490 N.M Hydraulic Wheel Drive Motor 0-170 R/Min Hyd Drive Motor , 2343-3490 N.M Hydraulic Wheel Drive Motor

0-170 R/Min Hyd Drive Motor , 2343-3490 N.M Hydraulic Wheel Drive Motor

Applications:

Engineering Machinery: Road Roller, Beam Carrier/Hoisting Machine, Milling Machine, Backhoe loader, Cinder.

Farming Machinery: Spray Machine.

Mining Machinery: Road Header, Scraper, Heavy Duty Handing Car, Excavator, Coal Mine Drill.

Special Vehicles: Fire Engine.

Forest Machinery: Stumper, Loader, Forest Felling Machine.

0-170 R/Min Hyd Drive Motor , 2343-3490 N.M Hydraulic Wheel Drive Motor 0-170 R/Min Hyd Drive Motor , 2343-3490 N.M Hydraulic Wheel Drive Motor

MS08 Connection Dimension

0-170 R/Min Hyd Drive Motor , 2343-3490 N.M Hydraulic Wheel Drive Motor

High precision testing facilities and experienced inspectors.

0-170 R/Min Hyd Drive Motor , 2343-3490 N.M Hydraulic Wheel Drive Motor
