Description

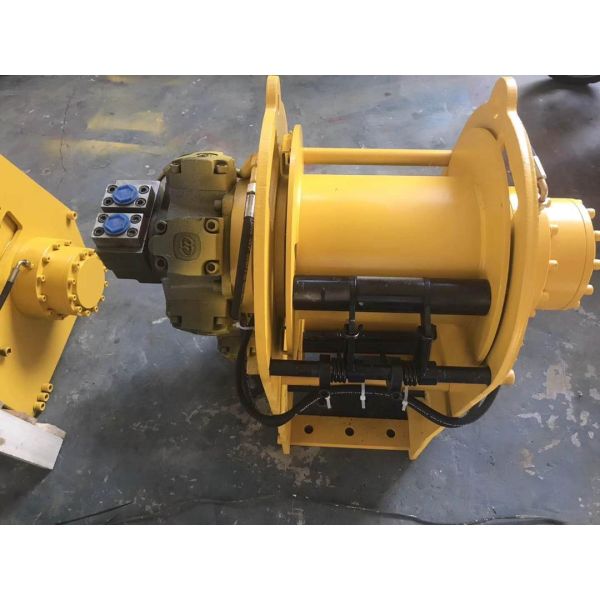

Professional Lifting Equipment Industrial Hydraulic Winch With Stepless Speed

Features:

WENKUI hydraulic winch is made up of hydraulic motor, multi-disc friction brake, planet gearbox decelerator, spool and bracket as a whole. There are shuttle valve and balance valve in the lifting weight from dropping also it can keep loading and unloading stable. Stepless speed, high starting efficiency, reliable, easy to install and control. Widely applied in all kinds of cane for railway transport, shipping, mining, port, etc.

5T/ 10T/ 15T/ 20T/25T/30T Hydraulic winch
With Hydraulic Motor, Gearbox, Brake, Valve, Baseplate, etc;
Capacity 5T/ 10T/ 15T/ 20T/ 30T, etc;
Cable diameter 20MM/ 28MM/ 32MM, etc;
Cable lenth 50M/ 100M/ 300M/ 500M, etc;
Speed 40/ 20/ 10MPM, etc;
Working pressure 30MPa/ 25MPa/ 20Mpa/ 16.3Mpa, etc

High starting and working efficiency, Low energy consuming,

Low noise, Compact size.

By the way, we also can offer the UMC and NABRICA original manual winch, made in china.
Linepull(1st layer)F(kN) Whole displacement(ml/r) Working pressureP( Mpa) Rope diameterD(mm) Layers
Type
EHW10 10 610 15 10 4
EHW20 20 1442 14 12 4
EHW30 30 2455 14.5 15 4
EHW40 40 3267 14.5 16 4
EHW50 50 4961 13.6 20 4
EHW60 60 6138 14.2 21.5 4
EHW80 80 9983 14.5 24 4
EHW100 100 14113 13 28 4
EHW120 120 16714 17 30 4
EHW150 150 19904 18 34 4
EHW180 180 23430 18 38 4

Linepull(1st layer)F(kN) Whole displacement(L/r) Working pressureP( Mpa) Rope diameterD(mm) Layers
Type
MHW-2 18 0.56 20.6 Φ11 4
MHW-3.5 34 1.747 18.7 Φ16 4
MHW-5 48 2.498 21.4 Φ19 4
MHW-7 69 4.198 20.7 Φ22 4
MHW-10 98 6.012 23.6 Φ26 4
MHW-12 119 9.16 21.3 Φ30 4
MHW-15 148 12.5 21.1 Φ32.5 4
MHW-18 184 16.656 21.5 Φ37 4
MHW-22 220 22.5 20.5 Φ40 4
MHW-30 315 40 19.7 Φ47 4
MHW-40 408 60 19.5 Φ55 4
MHW-55 566 90 19.6 Φ65 4
MHW-65 660 115 20 Φ70 4
MHW-80 787 150 20.2 Φ75 4
MHW-100 1075 240 20.1 Φ90 4

Professional Lifting Equipment Industrial Hydraulic Winch With Stepless Speed

Applications:

Our winches are mainly used for many kinds of cranes, ship machinery and so on.
