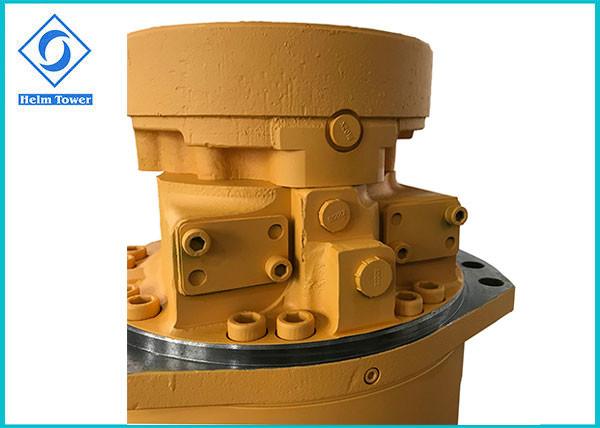

Customized Color Double Speed Hydraulic Piston Motor Replacement For Poclain MS18
Customized Color Double Speed Hydraulic Piston Motor Replacement For Poclain MS18
Customized Color Double Speed Hydraulic Piston Motor Replacement For Poclain MS18
Customized Color Double Speed Hydraulic Piston Motor Replacement For Poclain MS18
Specifications
Brand Name :
Helm Tower
Model Number :
MS18
Certification :
ISO 9001
Place of Origin :
Ningbo
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
7-15 working days
Packaging Details :
Standard Export Wooden Case
Type :
piston motor
Color :
customized
Speed :
0-100 r/min
Torque :
8343-8500 N.m
Rated pressure :
25 MPa
Max. pressure :
31.5 MPa
Description

Wheel Hydraulic Piston Motor Poclain MS18 Double Speed For BOMAG 213-D-2 Compactor 1995 Mode

Product description

Incurve radial piston low speed large toque hydraulic motor
Long service life robust rolling bearing
High power density
Optional mounting position
Adopt Imported Bearing and Oil Seal, etc
Modular design, High efficiency, High pressure tolerance and smooth running even at very low speed
Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control

Applications

1). This motor has been widely used in all kinds of engineering machinery, construction machinery, agricultural machinery, hoisting and conveying machinery, marine deck machinery and military special vehicle.

2). Wheel shaft motor widely used in BOMAG and Ingersoll-Rand road rollers.

Type MS18-8 MS18-9 MS18-0 MS18-1 MS18-2
Displacement(ml/r) Full Semi Full Semi Full Semi Full Semi Full Semi
1395 697 1571 785 1747 873 1911 955 2099 1049
Max power(kw) 62 42 62 42 62 42 62 42 62 42

Pressure discrepancy

10MPa Torque (N. m)

 2085 1022 2348 1151 2611 1279 2856 1400 3137 1537
Rated torque(N. m) 5212 5870 6528 7140 7843
Rated pressure(MPa) 25 25 25 25 25
Max pressure(MPa) 40 40 40 35 35
Rated speed(r/min) 55 55 55 55 50
Speed range(r/min) 0-150 0-150 0-150 0-135 0-125

Customized Color Double Speed Hydraulic Piston Motor Replacement For Poclain MS18

Applications:

Consturction Machinery: Backhoe Loader, Explosion - Proof Fprklift, Forklift

Mining Machinery: Mini Road Header, Heavy Duty Handing Car, Coal Mine Drill

Marine Machinery: Wildlass, Crane
