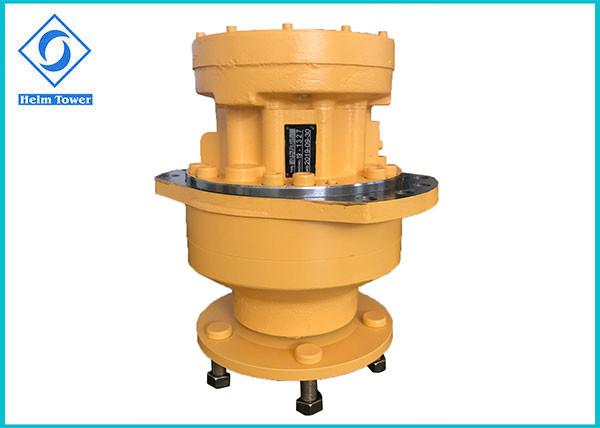

Hydraulic Low Speed High Torque Drive Motor Piston Motor For Marine Machinery
Hydraulic Low Speed High Torque Drive Motor Piston Motor For Marine Machinery
Specifications
Brand Name :
Helm Tower
Model Number :
MS11
Certification :
ISO 9001
Place of Origin :
Ningbo
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
7-15 working days
Packaging Details :
Standard Export Wooden Case
Type :
piston motor
Color :
customized
Speed :
0-160 r/min
Torque :
3127-4704 N.m
Rated pressure :
25 MPa
Max. pressure :
40 MPa
Description

Poclain MS11 Hydraulic Low Speed High Torque Drive Motor For Marine Machinery

1). Radial piston type;

2). Adopt Imported Bearing and Oil Seal, etc.

3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.

4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.

5). Motor with multi-disc brake.

6). Motor emission control.

Type MS11-8 MS11-9 MS11-0 MS11-1 MS11-2
Displacement(ml/r) Full Semi Full Semi Full Semi Full Semi Full Semi
837 418 943 471 1048 524 1147 573 1259 629
Max power(kw) 44 29 44 29 44 29 44 29 44 29

Pressure discrepancy

10MPa Torque (N.m)

 1251 613 1409 391 1566 768 1714 840 1882 922
Rated torque(N.m) 3127 3524 3916 4286 4704
Rated pressure(MPa) 25 25 25 25 25
Max pressure(MPa) 40 40 40 35 35
Rated speed(r/min) 65 65 65 60 60
Speed range(r/min) 0-160 0-160 0-160 0-150 0-150

Applications:

Construction: road building and maintenance, earth moving, finishing, drilling, trenching, recycling, mining and boring machines.

Minging: mini road header, scraper, heavy duty handling car coal mine drill.

Agriculture: combine and others specialty harvesters, sprayers, forestry equipment,

Handling: forklift trucks, aerial work platforms, conveyors, aircraft loading equipment,

Industry: process, paper, foundry, food.

Marines: fishing, harbor,

Transportation: material, heavy duty, on-highway.

Hydraulic Low Speed High Torque Drive Motor Piston Motor For Marine Machinery


Hydraulic Low Speed High Torque Drive Motor Piston Motor For Marine Machinery

MS11 Connection Diagram

Hydraulic Low Speed High Torque Drive Motor Piston Motor For Marine Machinery

High precision testing facilities and experienced inspectors.

Hydraulic Low Speed High Torque Drive Motor Piston Motor For Marine Machinery
