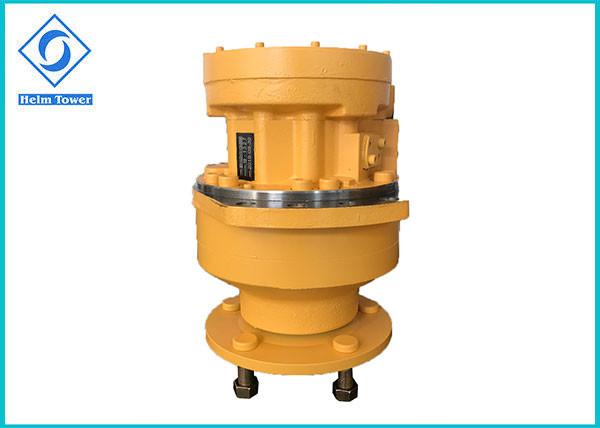

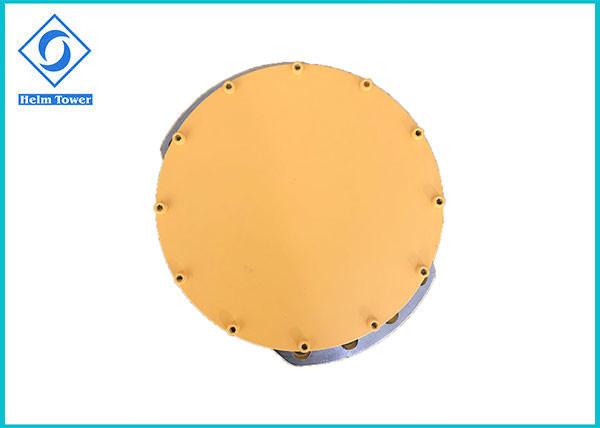

Customized Color Hydraulic Drive Motor 0 - 160 R/Min Speed For Marine Deck Crane
Customized Color Hydraulic Drive Motor 0 - 160 R/Min Speed For Marine Deck Crane
Customized Color Hydraulic Drive Motor 0 - 160 R/Min Speed For Marine Deck Crane
Customized Color Hydraulic Drive Motor 0 - 160 R/Min Speed For Marine Deck Crane
Customized Color Hydraulic Drive Motor 0 - 160 R/Min Speed For Marine Deck Crane
Customized Color Hydraulic Drive Motor 0 - 160 R/Min Speed For Marine Deck Crane
Specifications
Brand Name :
Helm Tower
Model Number :
MS11
Certification :
ISO 9001
Place of Origin :
Ningbo
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
7-15 working days
Packaging Details :
Standard Export Wooden Case
Type :
piston motor
Color :
customized
Speed :
0-160 r/min
Torque :
3127-4704 N.m
Rated pressure :
25 MPa
Max. pressure :
40 MPa
Description

Poclain MS11 Hydraulic Low Speed High Torque Drive Motor For Marine Machinery

Poclain : MS11/MSE11 radial piston hydraulic motor

Helm Tower brand MS/MSE Series Hydraulic Motor is one kind of low speed high torque radial piston motor with modular design, multi-disc brake (holding brake) ,high pressure tolerance, smooth running even at very low speeds, available with different valves.

The MS/MSE series motor can be added all kinds of hydraulic valves, mechanical brake, wheel output shaft and other components, motor can make a double displacement, multi-functions collocation can meet the needs of users in various fields.

The MS/MSE hydraulic motor is widely used in shearer, skid steer loaders, DTH drill, rotary drilling ilg, small road header, mixer, cutting machine, heavy duty handling car,cavenging machine, aircraft tractor, beam carrier,hoisting machineport crane,boring machine, scraper, mini farming vehicle, ditcher,heavy-duty truck and coal mine drilling machine.

Both the repair parts and the complete motors are 100% interchangeable with original Poclain Motors!

Customized Color Hydraulic Drive Motor 0 - 160 R/Min Speed For Marine Deck Crane

Type MS11-8 MS11-9 MS11-0 MS11-1 MS11-2
Displacement(ml/r) Full Semi Full Semi Full Semi Full Semi Full Semi
837 418 943 471 1048 524 1147 573 1259 629
Max power(kw) 44 29 44 29 44 29 44 29 44 29

Pressure discrepancy

10MPa Torque (N.m)

 1251 613 1409 391 1566 768 1714 840 1882 922
Rated torque(N.m) 3127 3524 3916 4286 4704
Rated pressure(MPa) 25 25 25 25 25
Max pressure(MPa) 40 40 40 35 35
Rated speed(r/min) 65 65 65 60 60
Speed range(r/min) 0-160 0-160 0-160 0-150 0-150

Applications:

Construction: road building and maintenance, earth moving, finishing, drilling, trenching, recycling, mining and boring machines.

Minging: mini road header, scraper, heavy duty handling car coal mine drill.

Agriculture: combine and others specialty harvesters, sprayers, forestry equipment,

Handling: forklift trucks, aerial work platforms, conveyors, aircraft loading equipment,

Industry: process, paper, foundry, food.

Marines: fishing, harbor,

Transportation: material, heavy duty, on-highway.

Customized Color Hydraulic Drive Motor 0 - 160 R/Min Speed For Marine Deck Crane

Customized Color Hydraulic Drive Motor 0 - 160 R/Min Speed For Marine Deck Crane

MS11 Connection Diagram

Customized Color Hydraulic Drive Motor 0 - 160 R/Min Speed For Marine Deck Crane

High precision testing facilities and experienced inspectors.

Customized Color Hydraulic Drive Motor 0 - 160 R/Min Speed For Marine Deck Crane
