Radial Piston Type Low Speed High Torque Hydraulic Motor Poclain MS Series
Radial Piston Type Low Speed High Torque Hydraulic Motor Poclain MS Series
Radial Piston Type Low Speed High Torque Hydraulic Motor Poclain MS Series
Radial Piston Type Low Speed High Torque Hydraulic Motor Poclain MS Series
Radial Piston Type Low Speed High Torque Hydraulic Motor Poclain MS Series
Radial Piston Type Low Speed High Torque Hydraulic Motor Poclain MS Series
Radial Piston Type Low Speed High Torque Hydraulic Motor Poclain MS Series
Radial Piston Type Low Speed High Torque Hydraulic Motor Poclain MS Series
Specifications
Brand Name :
Helm Tower
Model Number :
MS05 MSE05
Certification :
ISO 9001
Place of Origin :
Ningbo
MOQ :
1
Price :
850-1900 USD
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
10 working days
Packaging Details :
Standard Export Wooden Case
Type :
piston motor
Color :
customized
Speed :
0-200 r/min
Torque :
2000-3260N.m
Rated pressure :
25 MPa
Max. pressure :
31.5 MPa
Description

Low Speed High Torque Hydraulic Motor Poclain MS SERIES MS05 MSE05 for Construction Machinery

Features:
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Modular design, High efficiency, High pressure and smooth running even at very low speeds,

Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.

Poclain MS05/MSE05 Hydraulic Motor:

This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.

It is widely applied in mining machinery( coal mine drill, heavy duty handling car), construction machinery(scavenging machine, aircraft tractor), farming machinery( mini farming vehicle, ditcher), etc.

MSE05 Displacement Diagram

Displacement Group 8 0 1 2 3
Displacement (ml/r) 530 625 688 750 820
Theoretical Torque at 10Mpa (N.m) 843 994 1094 1193 1304
Rated Speed (r/min) 100 100 100 80 80
Rated Pressure (Mpa) 25 25 25 25 25
Rated Torque (N.m) 1700 2050 2250 2450 2650
Max. Pressure (Mpa) 31.5 31.5 31.5 31.5 31.5
Max. Torque (N.m) 2100 2500 2750 3000 3300
Speed Range (r/min) 0-160 0-160 0-160 0-125 0-125
Max. Power (kw) Standard displacement is 29KW,variable displacement priority rotation 19KW,no priority is 15KW

Application:

Engineering Machinery: Cinder,Skid steer loader, Explosion- proof Forklift,Forklift,Beam Carrier/Hoisting Machine.

Farming Machinery: Mini Farming Vehicle, Combine Harvesters and Cotton Pickers.

Mining Machinery: Scraper, Road Header, Heavy Duty Handling Car, Coal Mine Drill.

Special Vehicles: Fire Engine.

Radial Piston Type Low Speed High Torque Hydraulic Motor Poclain MS Series

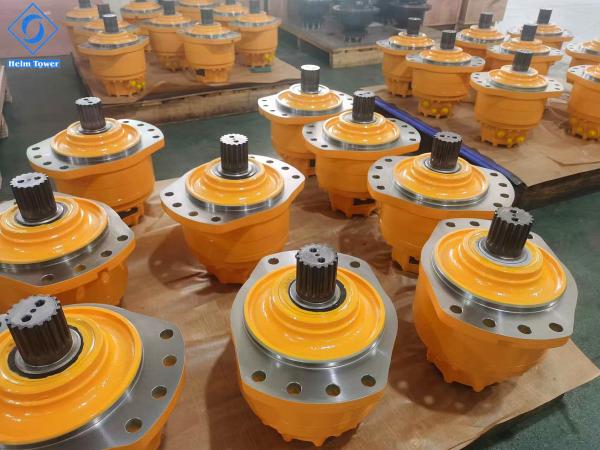

Workshop View:

Radial Piston Type Low Speed High Torque Hydraulic Motor Poclain MS Series

Radial Piston Type Low Speed High Torque Hydraulic Motor Poclain MS Series

Radial Piston Type Low Speed High Torque Hydraulic Motor Poclain MS Series

Quality Control:

Radial Piston Type Low Speed High Torque Hydraulic Motor Poclain MS Series
