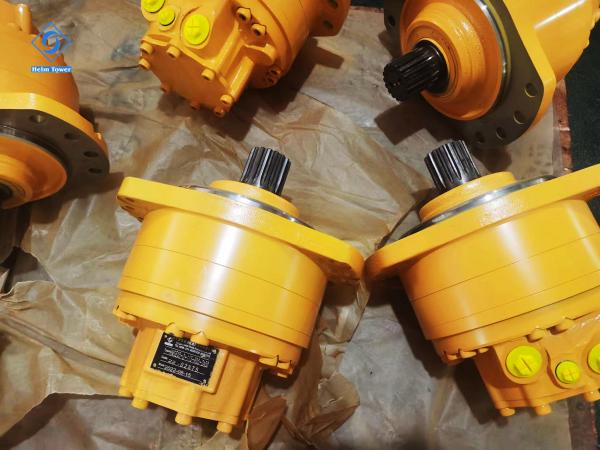

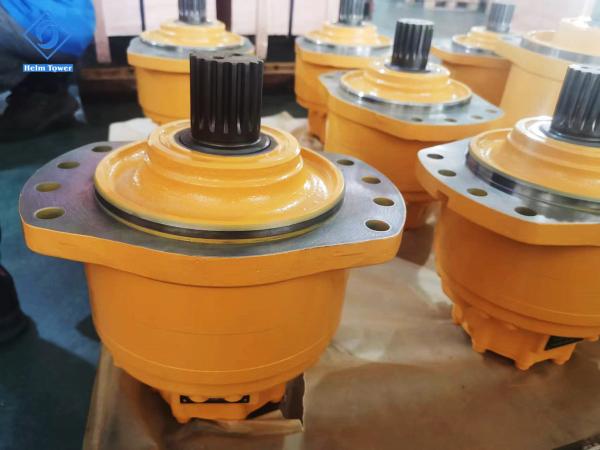

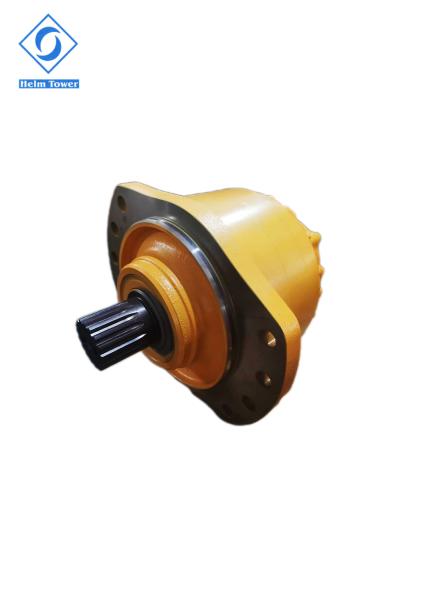

100% Replace MSE05 Poclain Hydraulic Motor Low Speed High Torque For Construction
100% Replace MSE05 Poclain Hydraulic Motor Low Speed High Torque For Construction
100% Replace MSE05 Poclain Hydraulic Motor Low Speed High Torque For Construction
100% Replace MSE05 Poclain Hydraulic Motor Low Speed High Torque For Construction
100% Replace MSE05 Poclain Hydraulic Motor Low Speed High Torque For Construction
100% Replace MSE05 Poclain Hydraulic Motor Low Speed High Torque For Construction
100% Replace MSE05 Poclain Hydraulic Motor Low Speed High Torque For Construction
100% Replace MSE05 Poclain Hydraulic Motor Low Speed High Torque For Construction
Specifications
Brand Name :
Helm Tower
Model Number :
MSE05
Certification :
ISO 9001
Place of Origin :
Ningbo
MOQ :
1
Price :
950 USD
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
7 working days
Packaging Details :
Standard Export Wooden Case
Type :
Hydraulic Drive Motor
Color :
customized
Speed Range :
0-190 r/min
Max.Torque :
2030-3300 N.m
Rated pressure :
25 MPa
Max. pressure :
40 MPa
Description

HANGZHOU MOTOR NINGBO MOTOR 100% REPLACE Poclain MSE05 Low Speed High Torque FOR CONSTRUCTION

Features:

Poclain MSE05 Hydraulic Motor:

This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.

It is widely applied in mining machinery( coal mine drill, heavy duty handling car), construction machinery(scavenging machine, aircraft tractor), farming machinery( mini farming vehicle, ditcher), etc.

100% Replace MSE05 Poclain Hydraulic Motor Low Speed High Torque For Construction

MSE05

Displacement Group 8 0 1 2 3
Displacement (ml/r) 530 625 688 750 820
Theoretical Torque at 10Mpa (N.m) 843 994 1094 1193 1304
Rated Speed (r/min) 100 100 100 80 80
Rated Pressure (Mpa) 25 25 25 25 25
Rated Torque (N.m) 1700 2050 2250 2450 2650
Max. Pressure (Mpa) 31.5 31.5 31.5 31.5 31.5
Max. Torque (N.m) 2100 2500 2750 3000 3300
Speed Range (r/min) 0-160 0-160 0-160 0-125 0-125
Max. Power (kw)

Standard displacement is 29KW,variable displacement priority rotation 19KW,no priority is 15KW

Application:

Engineering Machinery: Cinder,Skid steer loader, Explosion- proof Forklift,Forklift,Beam Carrier/Hoisting Machine.

Farming Machinery: Mini Farming Vehicle, Combine Harvesters and Cotton Pickers.

Mining Machinery: Scraper, Road Header, Heavy Duty Handling Car, Coal Mine Drill.

Special Vehicles: Fire Engine.

100% Replace MSE05 Poclain Hydraulic Motor Low Speed High Torque For Construction

Workshop View:

100% Replace MSE05 Poclain Hydraulic Motor Low Speed High Torque For Construction

100% Replace MSE05 Poclain Hydraulic Motor Low Speed High Torque For Construction

100% Replace MSE05 Poclain Hydraulic Motor Low Speed High Torque For Construction

Quality Control:

100% Replace MSE05 Poclain Hydraulic Motor Low Speed High Torque For Construction
