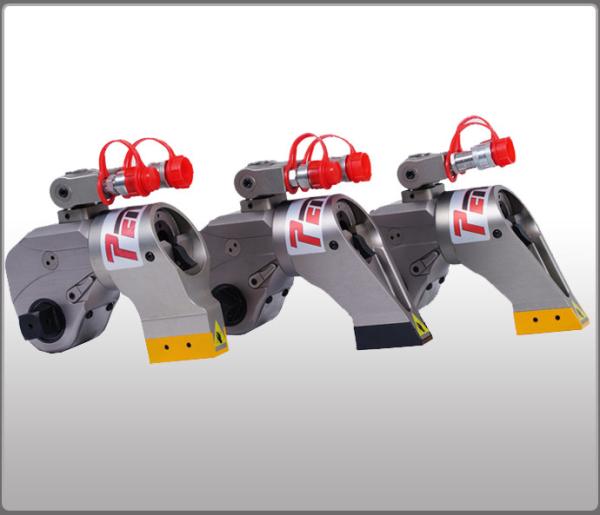

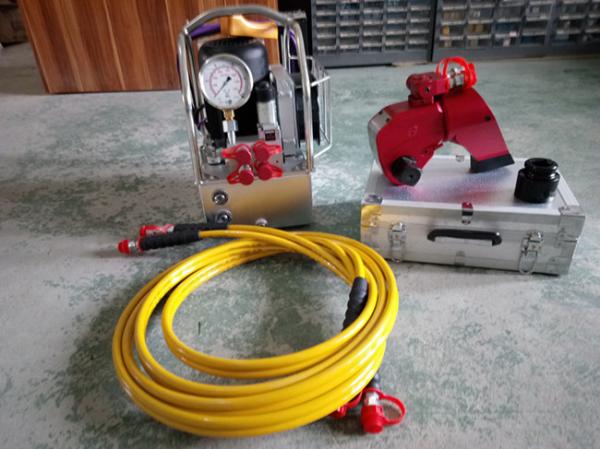

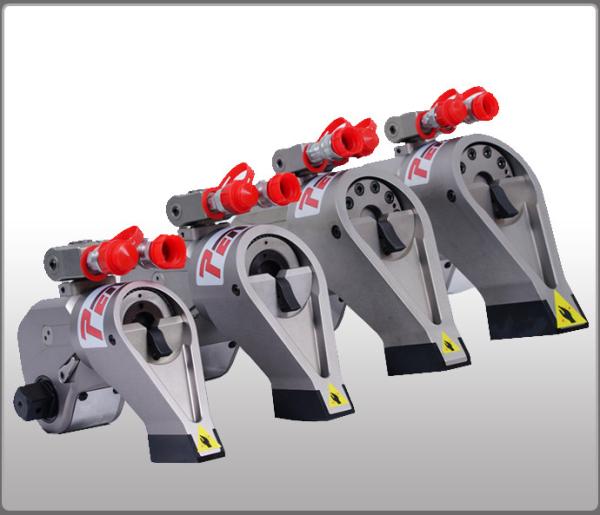

Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket
Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket
Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket
Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket
Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket
Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket
Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket
Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket
Specifications
Brand Name :
PENAD
Model Number :
PDTA
Certification :
ISO, CE/TUV
Place of Origin :
China
MOQ :
1set
Price :
USD /1000-5000 /SET
Supply Ability :
3000/SET/YEAR
Delivery Time :
3-4 Working days
Packaging Details :
Carton
Material :
Aliuminium-Titanium alloy
Color :
Red, Silver, Blue, Black
Model :
PDTA
Torque :
183-48666
Certificate :
CE
OEM :
Avallable
Description

Square drive hydraulic torque wrench manufacturer with CE authentication

Hydraulic torque wrench is one kind of power tool designed to exert torque on a faster to achieve proper tightening or loosening of a connection through the use of hydraulics. Hydraulic torque wrench is applied to the nut either directly or in conjunction with an impact socket. Hydraulic torque wrenches apply a predetermined, controlled amount of torque to a properly lubricated fastener.

Characters:

1. Square hydraulic torque wrench, high quality with good performance, works with impact socket.

2. Precision Machined - Increases accuracy, durability and repeatability.

3. 360° Swivel Fittings (Patented) , it is very convenient during the operation.

4. Surface coated - All exposed parts to resist corrosion.

5. Calibrated - Every tool is function tested and calibrated to ±0.03 accuracy.

Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket

Products Drawings:

Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket

Technical Data:

SELECTION CHART OF PDTA SERIES HYDRAULIC TORQUE WRENCH
MODEL 07PDTA 1PDTA 3PDTA 5PDTA 8PDTA 10PDTA 15PDTA 20PDTA 25PDTA 35PDTA 50PDTA
TORQUE(N.m) 112-1120 183-1837 451-4512 752-7528 1078-10780 1551-15516 2062-20627 2666-26664 3572-34725 4866-48666 7200-72000
BOLT SIZE(M) 14-30 16-36 22-48 27-56 30-64 36-72 39-80 42-90 48-100 64-120 72-125
WEIGH(KGS) 1.8 2 4 7 9.1 13.1 18 25 31 45 87
L1(mm) 110.8 130 166 198 213 231 270 295 314 355 400
L2(mm) 139.3 182 241 281 308 336 400 443 464 489 516
H1(mm) 42 50 68 80 90 100 110 120 137 153 160
H2(mm) 65.8 72 95 123 130 141 179 182 200 217 223
H3(mm) 76.2 99 130 155 171 187 201 228 255 290 291
H4(mm) 108.1 144 176 198 216 230 244 268 295 330 341
R1(mm) 20.5 26 34 39 47 51 55 59 67 79 81
R2(mm) 68.3 99 134 152 171 174 195 250 251 271 259
SQUARE DRIVE 3/4" 3/4″ 1″ 1-1/2″ 1-1/2″ 1-1/2″ 2-1/2" 2-1/2″ 2-1/2″ 2-1/2″ 2-1/2″

Application field:

Hydraulic wrenches are widely used. Hydraulic torque wrench is an important tool for the installation and disassembly of large-sized bolts in the construction, maintenance and repair of shipbuilding, petrochemical, wind power, hydropower, thermoelectric, mining, machinery, steel mills, rubber, pipelines and other industries. There is no substitute for other tools, which is not only convenient to use, but also provides very accurate torque, and the torque repetition accuracy reaches about ±3 %.

Square Drive Hydraulic Torque Wrench Tool Work With Impact Socket
