PDCT Low Profile Hydraulic Torque Wrench For BOP / Mining / Petroleum Platform
PDCT Low Profile Hydraulic Torque Wrench For BOP / Mining / Petroleum Platform
PDCT Low Profile Hydraulic Torque Wrench For BOP / Mining / Petroleum Platform
PDCT Low Profile Hydraulic Torque Wrench For BOP / Mining / Petroleum Platform
PDCT Low Profile Hydraulic Torque Wrench For BOP / Mining / Petroleum Platform
PDCT Low Profile Hydraulic Torque Wrench For BOP / Mining / Petroleum Platform
PDCT Low Profile Hydraulic Torque Wrench For BOP / Mining / Petroleum Platform
PDCT Low Profile Hydraulic Torque Wrench For BOP / Mining / Petroleum Platform
Specifications
Brand Name :
PENAD
Model Number :
2PDCT
Certification :
ISO, CE/TUV
Place of Origin :
China
MOQ :
1set
Supply Ability :
3000/SET/YEAR
Delivery Time :
3-4 working days
Packaging Details :
Carton
Material :
Aluminium-Titanium alloy
Color :
Red, silver, blue, black
OEM :
Available
Brand :
Penad
Model :
2PDCT
Torque :
241-2414N.m
Suitable nut size :
60mm
Origin :
China
Description

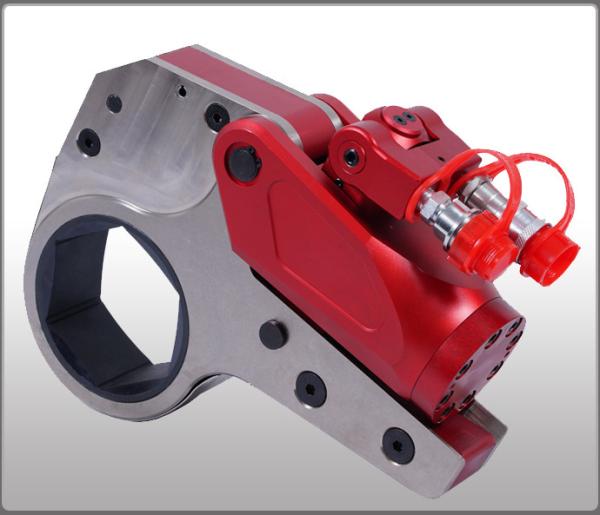

PDCT low profile hydraulic torque wrench for BOP , mining , petroleum platform

Characters:

1. Hydraulic torque wrench, made of ultra-high strength aluminum-titanium alloy, thin design, double - acting, high speed and big corner;
2. clamping type, interchangeable plug - ins, no need of special tools, torque repetition accuracy as high as ±3%;

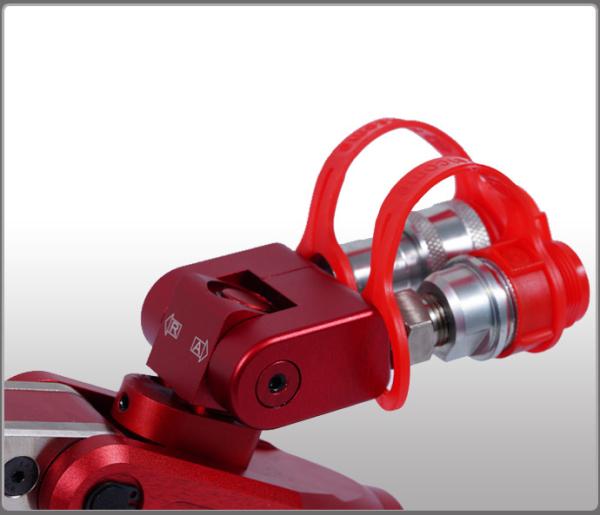

3, 360°×360° and 180°X360° rotary hose connectors, which are suitable for compact occasions and convenient for positioning.
4, wrench strength design is sufficient, the overall reaction arm, fewer movable parts, durable and reliable;

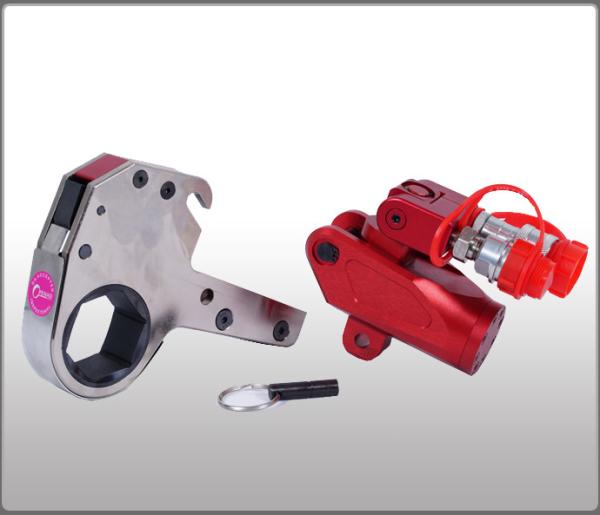

5. Can work with metric and imperial hexagonal insert socket, which can realize that one power head is equipped with multiple insert socket for simultaneous use;
6. Most of them are used in special working conditions: double nuts, bolts are too close to the equipment wall, bolts are too long, nut spacing is too small, etc.

7. If needed, can work with our back-up wrench, more convenient.

PDCT Low Profile Hydraulic Torque Wrench For BOP / Mining / Petroleum Platform

Product Drawings:

PDCT Low Profile Hydraulic Torque Wrench For BOP / Mining / Petroleum Platform

Technical Data:

SELECTION CHART OF PDCT SERIES ULTRO THIN HOLLOW HYDRAULIC WRENCH
MODEL 2PDCT 4PDCT 8PDCT 14PDCT 18PDCT 30PDCT 50PDCT
TORQUE(N.m) 232-2328 241-2414 585-5858 647-6474 1094-10941 1177-11774 1852-18521 2695-26958 488-41882 4459-44593 7081-70813
NUT SIZE(S) 19-55 60 34-65 70-80 41-95 100-105 50-117 65-130 110-155 160-175 105-225
POWER HEAD WEIGHT(KG) 0.9 0.9 1.7 1.7 3 3.1 4.6 6.5 10.4 10.4 35.5
WORKING HEAD WEIGHT(KG) 1.5 1.5 3.4 3.4 6.3 6.3 11.4 14.3 20.5 20.5 42
L 196 196 258 263 30 311 360 388 430 441 493
H1 126 129 163 173 192 201 225 264 303 315 328
H2 102 105 136 146 168 177 2045 231 272 285 295
W1 32 32 42 42 53 53 64 71 85 85 102
W2 51 51 66 66 83 83 99 109 131 131 160

FAQ:

1, How to choose the correct model?

a. according to your required max. torque force.

b. your nuts size.

2. Package

Usually, packed in metal case, then in carton, easily to move, protect the wrench from damage.

3. Warranty.

We provide one year quality warranty from the shipping date. except the artificial damage

4. Delivery time

Usually we have stock, can be send out 2-3 working days, big quantity, we need to confirm the delivery time.
