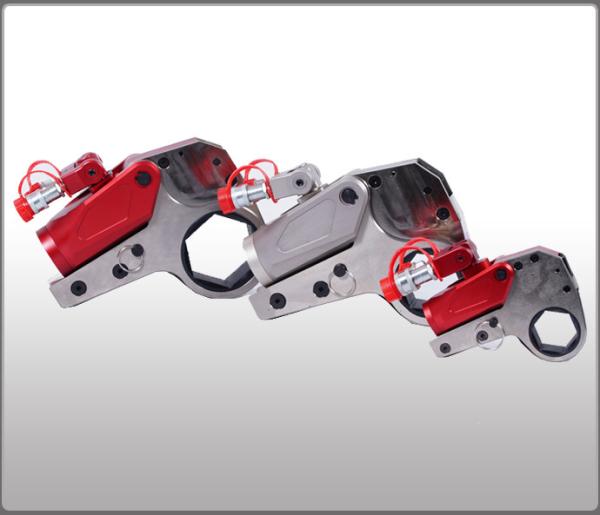

High Strength Hydraulic Hexagon Cassette Torque Wrench For Huge Nut Tightening
High Strength Hydraulic Hexagon Cassette Torque Wrench For Huge Nut Tightening
High Strength Hydraulic Hexagon Cassette Torque Wrench For Huge Nut Tightening
High Strength Hydraulic Hexagon Cassette Torque Wrench For Huge Nut Tightening
High Strength Hydraulic Hexagon Cassette Torque Wrench For Huge Nut Tightening
High Strength Hydraulic Hexagon Cassette Torque Wrench For Huge Nut Tightening
High Strength Hydraulic Hexagon Cassette Torque Wrench For Huge Nut Tightening
High Strength Hydraulic Hexagon Cassette Torque Wrench For Huge Nut Tightening
Specifications
Brand Name :
PENAD
Model Number :
30PDCT
Certification :
ISO, CE/TUV
Place of Origin :
China
MOQ :
1set
Supply Ability :
3000/SET/YEAR
Delivery Time :
3-4 working days
Packaging Details :
Carton
Material :
Aluminium-Titanium alloy
Color :
Red, silver, blue, black
OEM :
Available
Brand :
Penad
Model :
30PDCT
Torque :
4459-44593N.m
Suitable nut size :
160-175mm
Origin :
China
Description

Huge torque force hydraulic torque wrench for mining bolt use , 4459-44593N.m

Characters:

1. Low profile hydraulic torque wrench manufacturer, high quality with good performance.
2. High strengthen aluminium-titanium alloy body.
3. 700 bar maximum working pressure, Repeat accuracy ±3%
4. 360° multi-positional swivel quick release couplings
5. Can work with the high resistance sockets, suitable for more size of nuts.

High Strength Hydraulic Hexagon Cassette Torque Wrench For Huge Nut Tightening


Product Drawings:

High Strength Hydraulic Hexagon Cassette Torque Wrench For Huge Nut Tightening

Technical Data:

SELECTION CHART OF PDCT SERIES ULTRO THIN HOLLOW HYDRAULIC WRENCH
MODEL2PDCT4PDCT8PDCT14PDCT18PDCT30PDCT50PDCT
TORQUE(N.m)232-2328241-2414585-5858647-64741094-109411177-117741852-185212695-26958488-418824459-445937081-70813
NUT SIZE(S)19-556034-6570-8041-95100-10550-11765-130110-155160-175105-225
POWER HEAD WEIGHT(KG)0.90.91.71.733.14.66.510.410.435.5
WORKING HEAD WEIGHT(KG)1.51.53.43.46.36.311.414.320.520.542
L19619625826330311360388430441493
H1126129163173192201225264303315328
H21021051361461681772045231272285295
W132324242535364718585102
W251516666838399109131131160




Application field:

Our hydraulic torque wrenches are wildely used in mining , wind power plant , petroleum , chemical and many other field
High Strength Hydraulic Hexagon Cassette Torque Wrench For Huge Nut Tightening

The selection of hydraulic wrench is determined by bolt size, torque requirements and space range.

  1. Bolt size, firstly, need to confirm the specification of the bolt, metric or imperial, and the bolt size. If including many different size of nuts, we suggest choose different model of hydraulic torque wrench according to nuts size and torque force.
  2. The specification and strength grade of bolts are the most critical parameters of hydraulic torque wrench selection.
  3. Space position of bolts and nuts, if the space permitted, PDTA square drive hydraulic torque wrench and PDCT low profile hydraulic torque wrench are suitable, if the space is narrow, we suggest to adopt the PDCT series of wrench.
  4. 1 ) One model of hydraulic wrench can only solve several similar bolts, usually with 1 - 10 impact sockets;
    2 ) it is best for qualified manufacturers to use an electric pump with two wrench heads, and use it diagonally, which can improve efficiency and torque more accurately.
    3 ) hydraulic wrenches must be used by special personnel, kept by special personnel and often maintained, such as oil change and cleaning.
