Convenient Operate Bolt Tightening Torque Machine Easily Pressed Trigger Lock Catch
Convenient Operate Bolt Tightening Torque Machine Easily Pressed Trigger Lock Catch
Convenient Operate Bolt Tightening Torque Machine Easily Pressed Trigger Lock Catch
Convenient Operate Bolt Tightening Torque Machine Easily Pressed Trigger Lock Catch
Specifications
Brand Name :
PENAD
Model Number :
3PDTA
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1
Supply Ability :
3000set/year
Delivery Time :
2-3 working days
Packaging Details :
carton
Material :
Al-Ti alloy
Model :
3PDTA
Torque :
451-4512N.m
Color :
Red or Silver
Nut size :
34-75mm
Origin :
China
Description

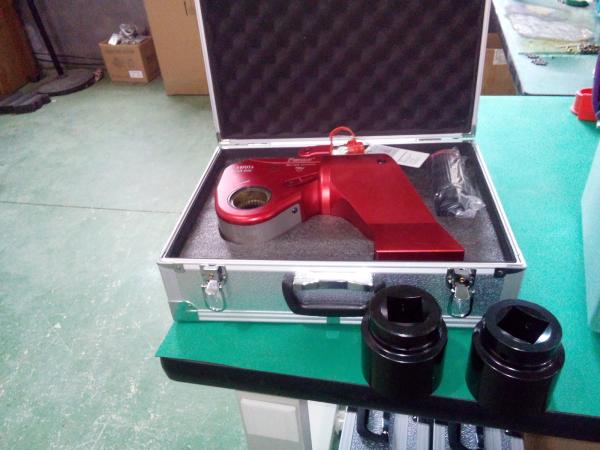

Square drive hydraulic torque wrench manufacturer for bolt solution

Penad Square drive hydraulic torque wrench with such charactors:

1. The hydraulic torque wrench main body, made of high-tech aerospace materials and ultra-high strength aluminum-titanium alloy steel to integrally form the fuselage, thus comprehensively strengthening the strength and toughness of the fuselage;
2. The wrench coupling which can rotate 360°×360°, is convenient to operate without using space restrictions;
3. The trigger lock catch can be easily pressed, and the 360° fine-tuning reaction arm can be set on a solid fulcrum at will.
4. Large teeth ratchet wheel is adopted, and the accuracy is up to ±3%

Our wrench selection chart:

SELECTION CHART OF PDTA SERIES HYDRAULIC TORQUE WRENCH 　 　
MODEL 07PDTA 1PDTA 3PDTA 5PDTA 8PDTA 10PDTA 15PDTA 20PDTA 25PDTA 35PDTA
TORQUE(N.m) 112-1120 183-1837 451-4512 752-7528 1078-10780 1551-15516 2062-20627 2666-26664 3572-34725 4866-48666
BOLT SIZE(M) 14-30 16-36 22-48 27-56 30-64 36-72 39-80 42-90 48-100 64-120
WEIGH(KGS) 1.8 2 4 7 9.1 13.1 18 25 31 45
L1(mm) 110.8 130 166 198 213 231 270 295 314 355
L2(mm) 139.3 182 241 281 308 336 400 443 464 489
H1(mm) 42 50 68 80 90 100 110 120 137 153
H2(mm) 65.8 72 95 123 130 141 179 182 200 217
H3(mm) 76.2 99 130 155 171 187 201 228 255 290
H4(mm) 108.1 144 176 198 216 230 244 268 295 330
R1(mm) 20.5 26 34 39 47 51 55 59 67 79
R2(mm) 68.3 99 134 152 171 174 195 250 251 271
SQUARE DRIVE 3/4" 3/4″ 1″ 1-1/2″ 1-1/2″ 1-1/2″ 2-1/2" 2-1/2″ 2-1/2″ 2-1/2″

About us and our service:

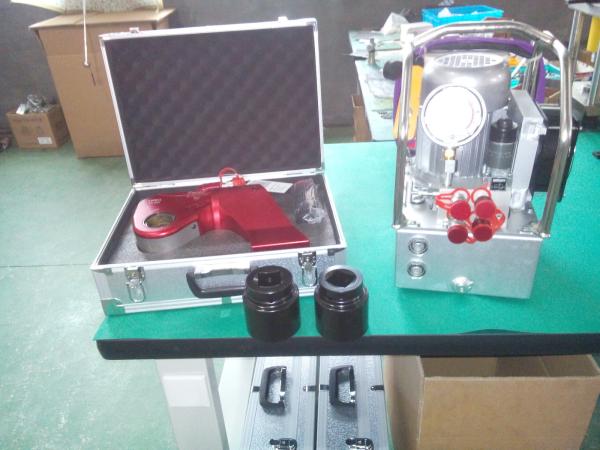

Hangzhou Penad machinery co.,ltd. specialized in hydraulic tools manufacturing and marketing, our main products including PDTA series of square drive hydraulic torque wrench, PDCT series of low profile hydraulic torque wrench, PE200 series of electric hydraulic pump, PE200Q sereis of penumatic hydraulic pump, sorts of cylinder, HTS series of hydraulic bolt tensioner. we provide useful bolt solution.

FAQ:

Q: Can you do OEM?
A: Yes, we can.
Q: How about the MOQ?
A: 1set
Q: How about the delivery time?
A: Normally, 2-3 workings days. But it depends on your order quantity.
Q: How about the warranty?
A: 1 year.
Q: What certificate do your product have?
A: We have CE, ISO 9001:2000
Q: Where is your loading port?
A: Ningbo or Shanghai , China port.
Q: Are you a manufactuer or trading company?
A: We are a manufacturer specialize in hydraulic tools for more than 10 years.
