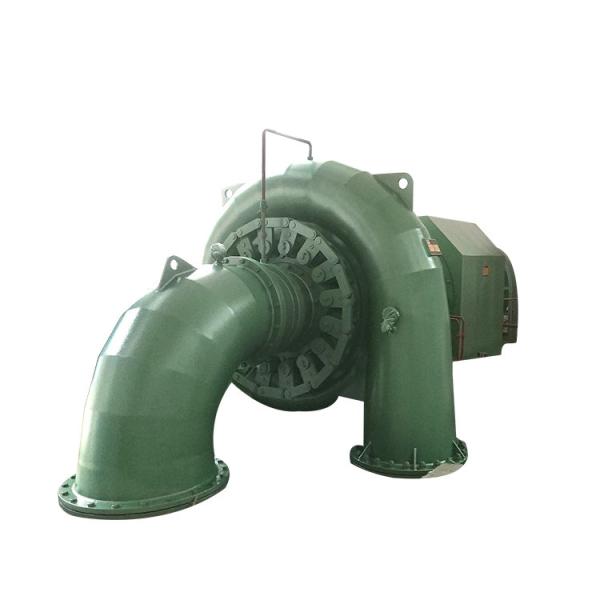

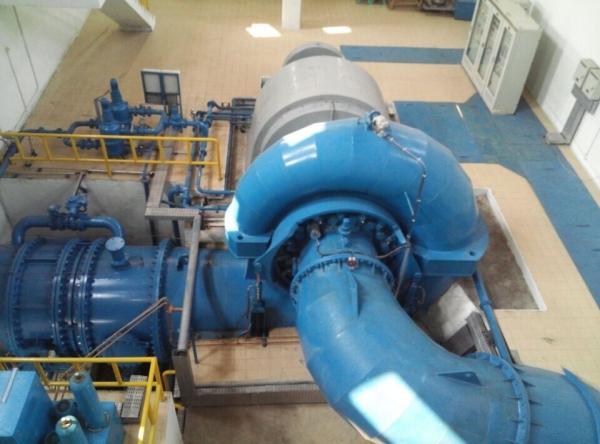

4.5MW Francis Hydro Turbine Generator For Hydro Power Plant

Overview

The Francis turbine fills a large gap between the Pelton and Kaplan and it is widely used. They operate in water head from 10 to 600 meters, and are primarily used for electric power generation. Their power output can be calculated from the water head and flow rate and typically range from 10 to more than 700 megawatts. One of the distinct advantages of the Francis turbine with respect to other water turbines is that they can also be used as water pump. This makes them ideal for a pumped storage systems.

1. Water inlet part

Water inlet part consists of valve. The valve is used to close the unit in static water when need stop, it is also used to close the unit and cut the water flow in dynamic water when the unit is in emergency and turbine distributor break down.

2. Spiral case

Spiral case is welding part, equipped with fixed guide vane in it. Spiral case shall make the water become number of swirl of water flow and guide water to flow regularly into guide vane apparatus and runner along circumference. It is equipped with an air relieve valve on the top of spiral case to exhaust air when filling water initially.

3. Turbine distributor

It consists of guide vane, guide vane lever, shaft sleeve, front cover, back cover, etc. It can form or change number of swirls of water flow to adjust turbine discharge according to variation of load. It is also used to normal and emergency shut down. The guide vane shaft sleeve has O ring for sealing. The control ring is welded by steel plate as a whole. Circular guiding rail and wiring plate with lubricating performance are located on the bottom surface of the control ring. The control ring has enough strength and rigidity, won’t occur excessive bending due to unbalance stress of servomotor. Counterweight is located on counterweight support. In case the servomotor is in fault, counterweight will close the guide vane by action of gravity.

4. Runner

Runner is the heart of turbine to change the water energy to mechanical energy. It is casted and welded as a whole, crown, band and blade is made of stainless steel ZG06Cr13Ni4Mo which has perfect performance of anti-cavitation, anti- corrosion and weldable. The runner is subject to static balance testing after machining. Holes on runner crown can reduce the pressure applied on runner by the water.

5. Draft tube assembly

Draft tube assembly consists of draft tube elbow and draft tube cone, guide the water flow into lower stream, make use of the potential energy of water flow at suction height, recycle major kinetic energy of the flow at runner outlet by its diffusion. All connecting flange shall be sealed, immersed depth of draft tube shall not be less than 30cm to prevent air into draft tube.

6. Pressure gauge and vacuum gauge

Pressure gauge is located on spiral case for observing the pressure in spiral case.

Vacuum gauge is located on draft tube elbow for observing the degree of vacuum. Valves shall be equipped on pressure gauge and vacuum gauge piping for close and open the piping.

Specification

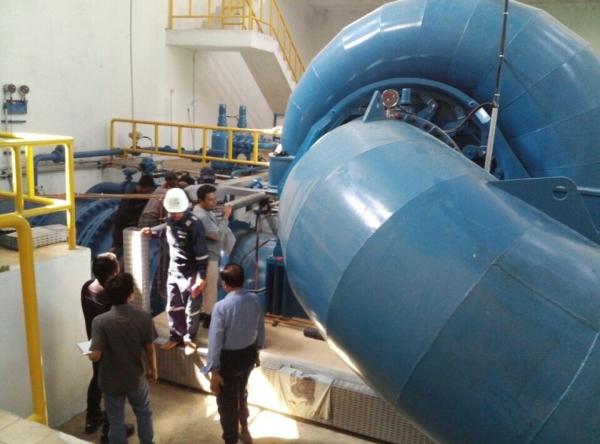

Why choose us?

1. More than 20 years of industry experience, install commissioning more than 150 equipment each year

2. Provide complete proposal for hydro power plant from water to wire

3. Abundant foreign power plant project implementation experience such as France, Japan, USA, South Africa, Sri Lanka, Iran, Southeast Asia

4. Design and manufacture of hydro power generator with voltage 400V,6.3KV . capacity exceed 1000kw with 400V

FAQ

1.You are a trading company or a manufacture?

We are a hydro turbine generator manufacture with over 20 years of experiences, Our factory is in the Sichuan you will take 2 hours driving after you reach Shuangliu Airport, pay a visit to our factory you will know more about us.

2.What Kind of water turbine should I choose?

We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution

3: Can you do the EPC for the hydro power plant?

Yes, We can design, producing and install the equipment, we will dispatch technologist and workers to install the equipment.
