Easy Install Orbit Hydraulic Motor , BMR Hydraulic Motor With Spool Valve
Easy Install Orbit Hydraulic Motor , BMR Hydraulic Motor With Spool Valve
Easy Install Orbit Hydraulic Motor , BMR Hydraulic Motor With Spool Valve
Easy Install Orbit Hydraulic Motor , BMR Hydraulic Motor With Spool Valve
Easy Install Orbit Hydraulic Motor , BMR Hydraulic Motor With Spool Valve
Easy Install Orbit Hydraulic Motor , BMR Hydraulic Motor With Spool Valve
Easy Install Orbit Hydraulic Motor , BMR Hydraulic Motor With Spool Valve
Easy Install Orbit Hydraulic Motor , BMR Hydraulic Motor With Spool Valve
Specifications
Model Number :
BMR Series
Brand Name :
RENOWELL
Place of Origin :
Jiangsu, China (Mainland)
Supply Ability :
50000 Piece/Pieces per Month
Packaging Details :
Standard package for export, wooden box
MOQ :
1 - 9999 Pieces
Price :
Negotiable
Type :
Hydraulic Motors
Port :
shanghai
Description

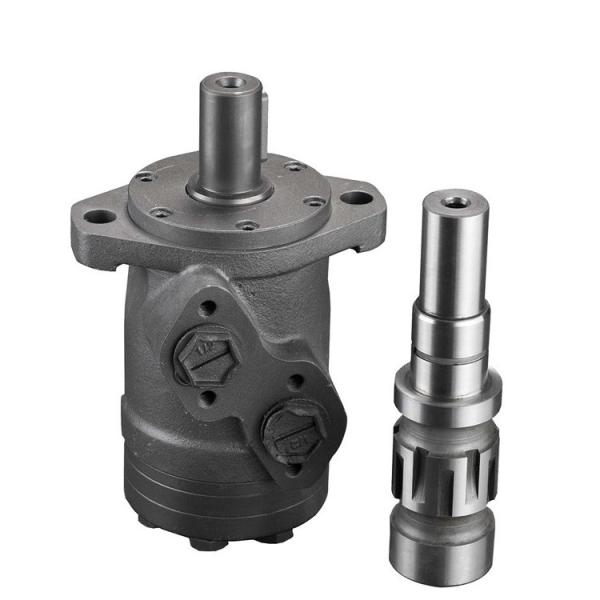

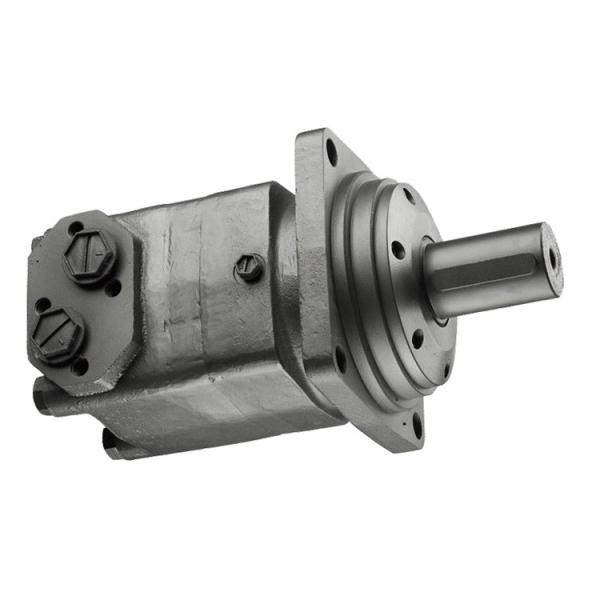

BMR Orbit Hydraulic Motor With Spool Valve

Product Description

This series of motor,with its shell made of ductile cast iron of adequate intensity, can be applied to situations with less load and interval operation, widely to agriculture, forestry, plastics, machine tools and min machines, such as the mould height adjustment of the injection molding machine, the cleaner, the saw the worktable etc.

Features

1 The output shaft, with the deep groove ball bearing, can bear certain axial force and radial force.

2 With the axial oil distribution structur, it is of smaller size and less weight.

3 With two inner check valves, no drain connection.
4 With cycoid group with the roller, it has a small friction nd high mechanical efficiency.

Model Designation


TYPE

BMR-50
BMRW-50
BMRS-50

BMR-80
BMRW-80
BMRS-80

BMR-100
BMRW-100
BMRS-100

BMR-125
BMRW-125
BMRS-125

BMR-160
BMRW-160
BMRS-160

BMR-200
BMRW-200
BMRS-200

BMR-250
BMRW-250
BMRS-250

BMR-315
BMRW-315
BMRS-315

BMR-400
BMRW-400
BMRS-400

Flow (ml/r)
Displacement

51.7

80.5

100.5

126.3

160.8

200.9

252.6

321.5

401.9


Max.Pressure.Drop(Mpa)

cont.

14

14

14

14

14

14

11

9

7

int.

17.5

17.5

17.5

17.5

17.5

17.5

14

11

9

peak.

20

20

20

20

20

20

16

13

11

Max.Torque(N.m)

cont.

93

152

194

237

310

369

380

380

380

int.

118

189

236

296

378

450

470

470

470

peak.

135

216

270

338

433

509

540

540

540

Speed.Range(cont.)(r/min)

10-775

10-750

10-600

10-475

10-375

10-300

10-240

10-190

10-160

Max.Flow(cont.)(L/min)

40

60

60

60

60

60

60

60

60

Max.Output.Power(cont.)(Kw)

7

10

10

10

10

8

6

5

4


Weight(kg)

6.5

6.9

7.0

7.3

7.5

8.0

8.5

9.0

11

Company Information

Suzhou Renowell Hydraulic Pump Co.,Ltd specialize in research and development, production and sales of high-end hydraulic pump products. Our company is located in a long history and beautiful modern industrial city - Suzhou. It is about 2 hours drive from Shanghai Pudong International Airport and 45 minutes from Wuxi Shuofang Airport. The transportation is very convenient and location is very superior.


The main products of our company are: Dennison T6, T7 series vane pumps; Vickers V, VQ series, V10, V20 series vane pumps; Tokimec SQP series vane pumps; Yuken PV2R series hydraulic vane pumps; PGH4, PGH5 series gear pumps; high pressure piston pumps and parts. After detected by the authoritative state department, the performance, technical indicators of our products have reached or exceeded the similar products made by the domestic and foreign top manufacturers, and can be interchangeable, instead of imported original products. Lower noise, higher volume efficiency, longer life and reasonable price make our products have been praised by all of our domestic and overseas customers, now our products have been exported to five continents more than 30 countries and regions.
