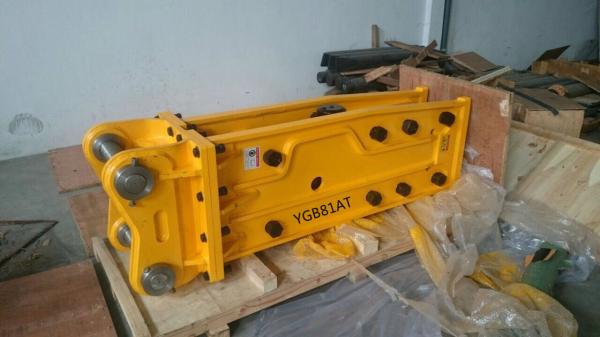

Durable Material Cylinder Hydraulic Breaker Hammer For Backhoe Loader and Excavator
Durable Material Cylinder Hydraulic Breaker Hammer For Backhoe Loader and Excavator
Durable Material Cylinder Hydraulic Breaker Hammer For Backhoe Loader and Excavator
Durable Material Cylinder Hydraulic Breaker Hammer For Backhoe Loader and Excavator
Specifications
Brand Name :
Wakestone
Model Number :
WSTB10 WSTB20 WSTB30 WSTB40 WSTB43
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
5-8 workdays
Packaging Details :
wooden case
Certification :
CE,ISO
Length :
2089 mm
Width :
508 mm
Impact frequency :
350-650 bpm
Diameter of chisel :
125 mm
Length of tool :
1130 mm
Body weight :
620 kgs
Description

Durable Material Cylinder Hydraulic Breaker Hammer For Backhoe Loader and Excavator

"broken hammer" or ''breaker".Hydraulic breaker's power source is excavators,loaders or pumping stations' pressure.It can break stones and rocks more effectively in the engineering construction.Selection of hydraulic breaker principle is according to the operation environment and excavator type.

Description Unit WSTB10 WSTB20 WSTB30 WSTB35 WSTB40 WSTB43
Applicable Carrier ton 0.8~2.5 1.2~3.0 2.5~4.5 3.0~5.5 4.0~7.0 6~9
Overall Weight lb 154 198 265 397 551 838
kg 70 90 120 180 250 380
Overall Length in 38.3 42.2 45.2 48.8 53.1 63.7
mm 972 1071 1147 1239 1349 1618
Required Oil Flow gal/min 4~8 5.3~10.6 6.6~13.2 7.9~16 10.6~18.5 13.2~23.8
ℓ/min 15~30 20~40 25~50 30~60 40~70 50~90
Operating Pressure psi 1,280~1,707 1,280~1,707 1,280~1,707 1,422~1,849 1,565~1,991 1,707~2,134
㎏/㎠ 90~120 90~120 90~120 100~130 110~140 120~150
Impact Rate bpm 800~1400 700~1200 600~1100 500~1000 500~900 400~800
Hose Diameter in 3/8,1/2 3/8,1/2 1/2 1/2 1/2 1/2
Tool Diameter in 1.6 1.8 2.1 2.4 2.7 3
mm 40 45 53 60 68 75

Durable Material Cylinder Hydraulic Breaker Hammer For Backhoe Loader and Excavator

  • Air-check Valve:being to the top location enables operators to underwater hammering
  • Back Head: steel ingot adopts the furnace refining outside and vacuum degassing, through forging(ensure the forging ratio),normalizing,Ultrasonic flaw detection to check internal organization loose and crack
  • Inward Valve:Strong strick force
  • Outward Valve:Normal strick force,easy to maintain
  • Cylinder:Good grinding process, CNC vertical mill to ensure the process human factors
  • Piston: Made by good quality material,accumulated heat treatment know-how and korean manufacturing technologe
  • Front Head:Protecting the whole breaker from the chisel's shock
  • Chisel:The specially heat-treated toll is directly applied to break rocks

Durable Material Cylinder Hydraulic Breaker Hammer For Backhoe Loader and Excavator
