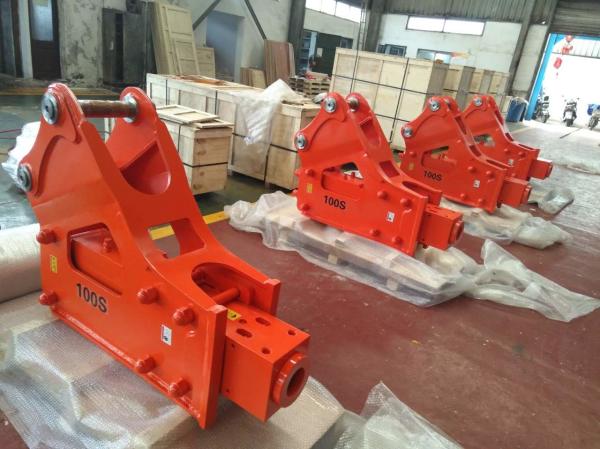

SB50 SB60 Hydraulic Hammer For Excavator Lower Oil Consumption
SB50 SB60 Hydraulic Hammer For Excavator Lower Oil Consumption
SB50 SB60 Hydraulic Hammer For Excavator Lower Oil Consumption
SB50 SB60 Hydraulic Hammer For Excavator Lower Oil Consumption
Specifications
Brand Name :
Wakestone
Model Number :
WSTB100 WSTB120 SB50 SB60
Place of Origin :
China
MOQ :
1 PCS
Payment Terms :
L/C, T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-7 workdays
Packaging Details :
Wooden Case
Certification :
CE,ISO
Warranty :
12 Months
Application :
Crawler Excavator
Color :
Customer's Request
Suitable Excavator :
10-15TON
Flow Rate :
180-250 L/Min
Description

Hydraulic Crawler Excavator Concrete Rock Road Breaker Hammer Lower Oil Consumption

Hydraulic Rock Breaker, Rock breaker, Excavator hammer, Side type breaker, Top type breaker, Box type breaker for excavator

Our breakers are compatible with various brand of excavators including: DOOSAN, KOMATSU, CAT, SNAY, HYUNDAI R, CAT PALLET, VOLVO, KOBELCO, KATO, KUBOTA, JCB, CASE, etc.

Our hydraulic breaker (hydraulic hammer) are applicable to a wide rang of weight class of excavators which from1.2 to100 ton

Hydraulic rock breaker is powered by an excavator or loader pump provides pressure oil, it can dig a fundamental role in building a more efficient clean up floating rock crevice in the rocks and soil. Optional hydraulic hammer excavator model is based on the principle of the operating environment to choose the most suitable hydraulic rock breaker.
Hydraulic breaker has become an important tool for the job, it was installed in the hydraulic breaker backhoe loaders (also known as two busy) or wheel loader for crushing operations. Excavator Hydraulic Breaker, also known as hydraulic breaker or hydraulic rock breaker (Excavator Hydraulic Breaker).

Specification

Description Unit WSTB135 Side WSTB140Side WSTB100 Side WSTB155 Side
Applicable Carrier lbs 40,000~58,000 40,000~58,000 55,000~66,000 62,000~77,000
ton 18~26 18~26 25~30 28~35
Overall Weight Lb 3836 3847 4727 5320
Kg 1740 1745 2144 2413
Overall Length in 95.6 92 103.3 109.3
mm 2429 2327 2623 2776
Required Oil Flow gal/min 31.7~47.6 31.7~47.6 39.6~55.5 47.6~63.4
ℓ/min 120~180 120~180 150~210 180~240
Operating Pressure psi 2276~2560 2276~2987 2276~2560 2,276~2,560
㎏/㎠ 160~180 160~210 160~180 160~180
Impact Rate bpm 350~500 400~550 300~450 300~450
Horse Diameter in 1 1 1 1¼
Tool Diameter in 5.5 5.3 5.9 6.1
mm 140 135 150 155


Features:
A. Incorporate much leading edge technology in hydraulic rock breaker. (Lower oil consumption, leading heat treatment, lower noise, long lifespan etc)
B. Suitable with a wide range of excavator.
C. Versatile application including rock broken, paving road, building demolition etc.
D. Top type breaker is applied to special operation that in large elevation angle.
E. Box type breaker namely silent breaker, which is sued in special project that noise is limited.
F one-stop service.
G easy use and easy maintenance.
