A hydraulic breaker for your excavator is a unique tool that is fixed in place of the excavator’s digger bucket. It uses hydraulics, meaning that you can control its strike rate from within the excavator cab. It is also known as the percussion hammer.
Product model and relevant data
Model | Weight(KG) | Length(MM) | Operating Flux | Work Pressure | Lmpact Frequency | Hose Dia | Chisel Dia | Applicable excavator | |||||
Box Type | Top Type | Side Type | Box Type | Top Type | Side Type | L/MIN | KG/CM M2 | BPM | BPM | MM | Bucket Capacity(M3) | Weight (Ton) | |
WSTB45 | 135 | 130 | 120 | 1280 | 1265 | 760 | 20-40 | 150 | 700-1200 | 1/2“ | 45 | 0.03-0.1 | 1.2-3 |
WSTB53 | 200 | 200 | 200 | 1400 | 1342 | 1140 | 20-50 | 160 | 600-1100 | 1/2“ | 53 | 0.06-0.2 | 2.5-4.5 |
WSTB68 | 330 | 330 | 327 | 1610 | 1590 | 1360 | 40-70 | 160 | 500-900 | 1/2“ | 680 | 0.15-0.3 | 4.5-6 |
WSTB75 | 468 | 450 | 450 | 1859 | 1822 | 1560 | 50-90 | 160 | 400-800 | 1/2“ | 75 | 0.2-0.35 | 6-9 |
WSTB85 | 680 | 680 | 650 | 2101 | 2096 | 1774 | 60-100 | 180 | 400-800 | 1/2“ | 85 | 0.25-0.5 | 7-14 |
WSTB100 | 1000 | 1000 | 887 | 2401 | 2351 | 1981 | 80-110 | 190 | 350-700 | 3/4” | 100 | 0.4-0.6 | 11-16 |
WSTB125 | 1320 | 1300 | 1250 | 2600 | 2592 | 2300 | 90-120 | 200 | 350-650 | 1“ | 125 | 0.5-0.7 | 15-18 |
WSTB135 | 2000 | 2000 | 1800 | 2822 | 2760 | 2322 | 100-150 | 200 | 350-650 | 1“ | 135 | 0.7-0.8 | 18-21 |
WSTB135G | 2000 | 2000 | 1800 | 2822 | 2760 | 2322 | 100-150 | 200 | 350-650 | 1“ | 135 | 0.7-0.8 | 18-21 |
WSTB135F | 2000 | 2000 | 1800 | 2822 | 2760 | 2322 | 100-150 | 200 | 350-650 | 1“ | 135 | 0.7-0.8 | 18-21 |
WSTB140 | 2050 | 2050 | 1960 | 2828 | 2363 | 2040 | 120-180 | 200 | 350-650 | 1“ | 140 | 0.7-0.9 | 18-26 |
WSTB150 | 2800 | 2670 | 2300 | 3052 | 3047 | 2616 | 150-210 | 220 | 300-450 | 1.2” | 150 | 0.3-1.2 | 25-30 |
WSTB150G | 2800 | 2670 | 2300 | 3052 | 3047 | 2616 | 150-210 | 220 | 300-450 | 1.2” | 150 | 0.3-1.2 | 25-30 |
WSTB155 | 2800 | 2670 | 2300 | 3254 | 3083 | 2776 | 18O-240 | 220 | 300-450 | 1.2” | 155 | 1.1-1.4 | 28-35 |
WSTB155F | 2800 | 2670 | 2300 | 3254 | 3083 | 2776 | 18O-240 | 220 | 300-450 | 1.2” | 155 | 1.1-1.4 | 28-35 |
WSTB165 | 3400 | 3350 | 3200 | 3500 | 3450 | 3000 | 200-260 | 220 | 250-400 | 1.2” | 165 | 1.2-1.7 | 30-35 |
WSTB175 | 4200 | 4200 | 3500 | 3709 | 3617 | 3200 | 210-290 | 220 | 200-350 | 1.2” | 175 | 1_4-2.0 | 40-55 |
WSTB180 | 4500 | 4500 | 4200 | 3800 | 3800 | 3300 | 250-340 | 220 | 250-320 | 1.2” | 180 | 1.9-3.5 | 45-60 |
WSTB185 | 4500 | 4500 | 4200 | 3800 | 3800 | 3300 | 250-340 | 220 | 250-320 | 1.2” | 185 | 1.9-3.5 | 45-60 |
WSTB190 | 4650 | 4650 | 4350 | 3750 | 3750 | 3260 | 260-320 | 250 | 200-300 | 1.2” | 190 | 1.9-4.5 | 45-75 |
WSTB195 | 4650 | 4650 | 4350 | 3750 | 3750 | 3260 | 260-320 | 250 | 200-300 | 1.2” | 195 | 1.9-4.5 | 45-75 |

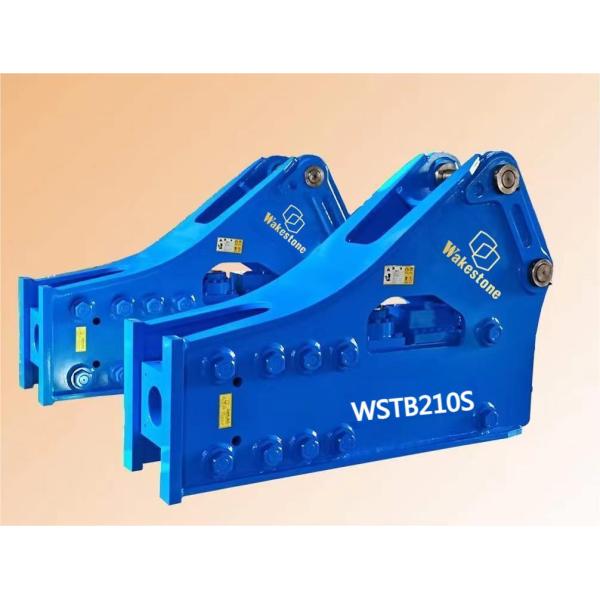

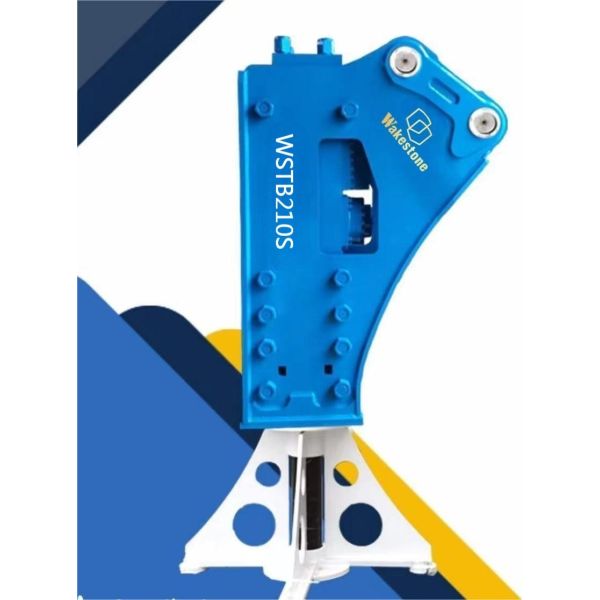

WSTB210S | 6350 | 6200 | 6100 | 4550 | 4500 | 4350 | 280-390 | 250 | 200-300 | 1.5“ | 210 | 3.8-7.5 | 70-100 |
Product application range
