OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81
OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81
OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81
OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81
OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81
OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81
OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81
OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81
OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81
OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81
Specifications
Brand Name :
Hanyun
Model Number :
HY140
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1 set/Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 sets per year
Delivery Time :
3-15 working days
Packaging Details :
Exported plywood box
Type :
Side type/top type/ box silence type hydraulic breaker hammer
Application :
Minin, Demilation, Bridge, Construction, Road
Material :
Q345B, 42CrMo, 20CrNiMo3, 20CrMo
Suitable excavator :
1-80tons
Condition :
new
Packing :
export pallet
Chiesel diameter :
45mm/68mm/75mm/85mm/100mm/135mm/140mm
OEM :
Avaliable
Color :
Customized color
Warranty :
1 year
Description

factory price OEM hydraulic demolition hammer rock breaker for 20 tons excavator SB81 hydraulic rock jack hammer

HANYUN HYDRAULIC BREAKER MAIN FEATURES

1. Through bolt: The front head, the cylinder and the back head of the main body are tightly fixed with four through bolts.

2. Valve: The cylindrical compensates for pressure in the hydraulic circuit piston reciprocation.

3. Piston: Kinetic energy of the piston is converted into hammering energy after hitting the chisel. The raw material:20CrNiMoA(best),35CrNiMoA, 40CrNiMoA,and other suppliers use the only GCr15 to decrease the cost.

4. Main Body: Including Front head, cylinder and back head. Ensure your breaker will be in best performance

5. Chisel: The specially heat treated chisel is directly applied to break rocks. There are four types for choosing: Moil, Blunt,

Flat, Conical Point. The material is 42Crmo.

6. Ring Bush & Front Cover: Guiding the chisel while they are working. Using 20CrMo steel as raw materials, which are provided by domestic famous manufacturer; forging again and again to make forming, to make internal organization more tight, and increase products’ wear-resistance.

7. Seal Kit: We can supply seal kit which are most famous brand in the business line.

OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81

OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81

Three types of hydraulic breaker hammers

OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81

Parameter of HANYUN top type hydraulic breaker

HANYUN Top type Hydraulic breaker
Model Total weight (KG) Diameter of chisel(MM) Weight of chisel(KG) Operating pressure(BAR) Hydraulic flow range(L/MIN) Impact frequency(BPM) Carrier weight (ton) Valve Ass'y Position
HY400 72 40 4 90-120 15-25 800-1400 0.8-2.5 Internal
HY450 95 45 8 90-120 20-30 700-1200 1.2-3.0 Internal
HY530 158 53 9 90-120 25-50 600-1100 2.5-4.5 Internal
HY680 343 68 18 110-140 40-70 500-900 4-7 Internal
HY750 409 75 22 120-150 50-90 400-800 6-9 Internal
HY850 591 85 29 130-160 60-100 400-800 7-14 Internal
HY1000 880 100 57 150-170 80-110 350-700 10-15 Internal
HY1200 1420 120 89 150-170 90-120 350-650 15-18 Internal
HY1350 1847 135 115 160-180 130-150 400-600 18-26 Internal
HY1400 2059 140 135 160-180 120-180 350-5000 18-26 Internal
HY1500 2380 150 164 160-180 150-190 350-700 27-35 Internal
HY1550 2745 155 183 160-180 180-240 300-450 28-35 Internal
HY1600 3007 160 200 160-180 200-260 250-400 30-40 Internal
HY1650A 3156 165 224 160-180 200-260 250-400 30-40 Internal
HY1650B 3447 165 215 170-200 200-260 250-400 30-40 Internal
HY1750 4057 175 247 260-270 250-300 200-300 45-50 Internal
HY1850 4877 185 269 270-280 220-290 150-250 45-50 Internal
HY1950 5374 185 269 270-280 250-320 150-250 50-60 Internal

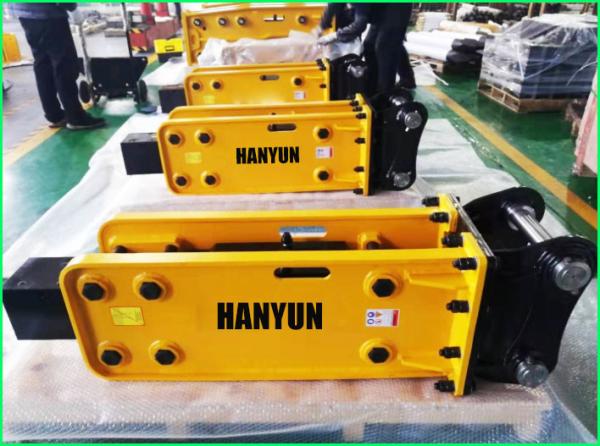

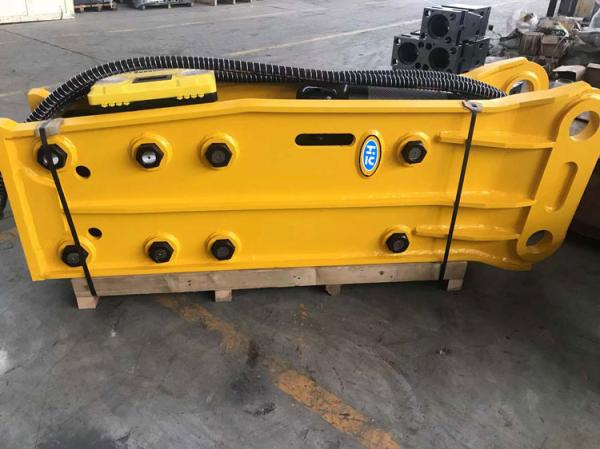

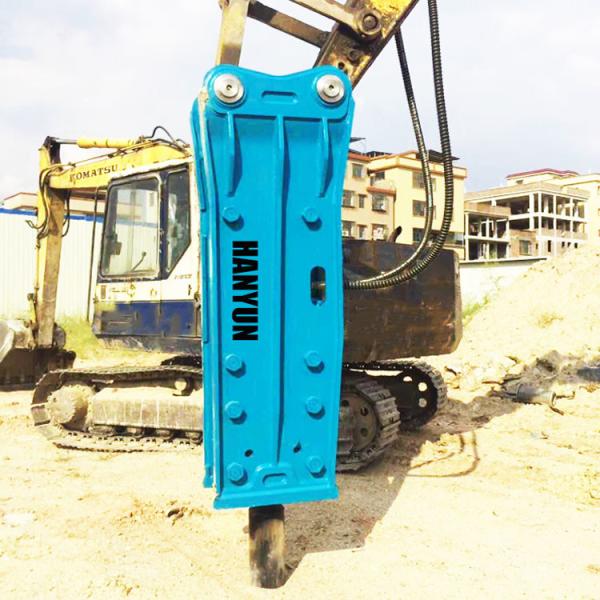

Picture of HANYUN breaker

OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81

OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81

HANYUN FACTORY

OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81

CERTIFICATE

OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81

PACKING AND SHIPPING

OEM Hydraulic Demolition Hammer Rock Breaker For 20 Tons Excavator SB81

FAQ

Q: Are you a manufacturer?
A: Yes, our factory was established in 2011.
Q: Are you sure your product will fit my excavator?
A: Our machines are suitable for most excavators.Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breaker6 months warranty for spare parts beyond the warranty period.
Q: Can you produce according to customers design?
A: Sure, OEM/ODM service available.We are professional manufacturer in Jiangsu.
Q: What's the MOQ and payment terms?
A: MOQ of hydraulic breaker is 1set.Payment via T/T, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment
Q: Which country have you exported?
A:Saudi Arabia, Korea,Thailand, Indonesia, India, Canada,Switzerland ,Vietnam , Iran, Turkey, Peru, Egypt, Brazil, Mexico, South Africa etc.
Q: How about the package?
A: Our machines wrapped by stretch film packed by pallet or poly wood case or as requested.
