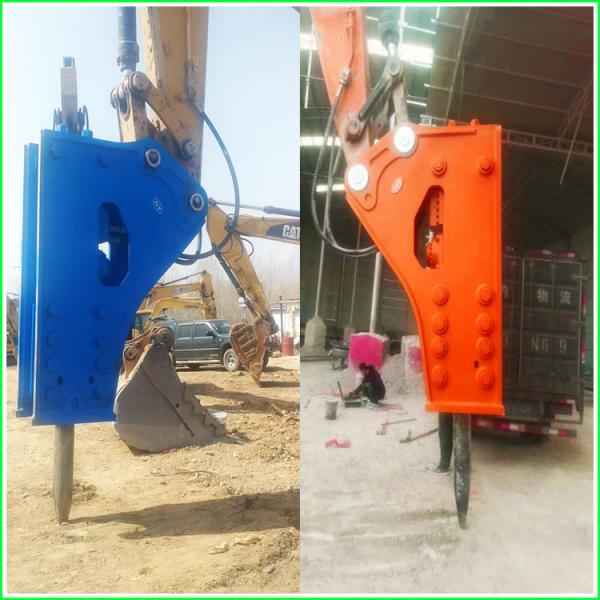

Q345B Crawler Hydraulic Excavator Hammers Concrete Breaker Pits 165mm Rod
Q345B Crawler Hydraulic Excavator Hammers Concrete Breaker Pits 165mm Rod
Specifications
Brand Name :
Hanyun
Model Number :
SB140
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
5000 sets per year
Delivery Time :
3-20working days
Packaging Details :
Plywood pallets or other exported packages
Keyword :
Hydraulic Crawler Loader Breaker Pits
Applicable carrier models :
Complete models on excavator, loaders and skid steers
Breaker materials :
Q345B
Hydraulic hammer drill rod diameter :
165mm
Color :
Blue, yellow, black or other colors
Loading port :
Qingdao port, Tianjin port, Shanghai port, Guangzhou port
Description

Heavy Duty Hydraulic Crawler Loader Breaker Pits Breaking Hammer​

(1) About Heavy Duty Hydraulic Crawler Loader Breaker Pits Breaking Hammer

Heavy duty hydraulic crawler loader refers to machine weight >30t in the market

Usually heavy duty hydraulic breaking hammer with chisels diameter >150mm will be selected.

(2) Main technical details on hydraulic excavator hammers SB140

Model: SB140

Hydraulic excavator hammers size: 2010*650*1420mm

Total weight: 3350kgs

Applicable excavator weight: 30-36t

Front head/cylinder size: 856*300*328mm

Back head/cylinder size: 405*300*410mm

Matched hammer chisel diameter: 165mm

(3) Main technical details on Hanyun hydraulic excavator hammers with heavy duty

Model HY165 HY175 HY185 HY195
Breaker shell weight (KGS) 1500 1700 2100 2300
Total weight(KG) 3350 4102 4950 5260
Size (MM) 2010*650*1420 2310*715*1630 2240*750*1620 2460*750*1670
Driving oil pressure (KG/CM2) 260-280 260-280 280-300 280-320
Hydraulic oil flow (L/MIN) 190-250 210-290 220-270 230-280
Striking frequency (BPM) 300-450 200-350 180-220 180-200
Soft hose diameter (INCH) 1.2 1.2 1.2 1.2
Drill rod diameter (MM) 165 175 185 195
Drill rod weight (KG) 220 260 300 340
Applicable carrier weight (T) 30-36 36-42 42-48 48-55
