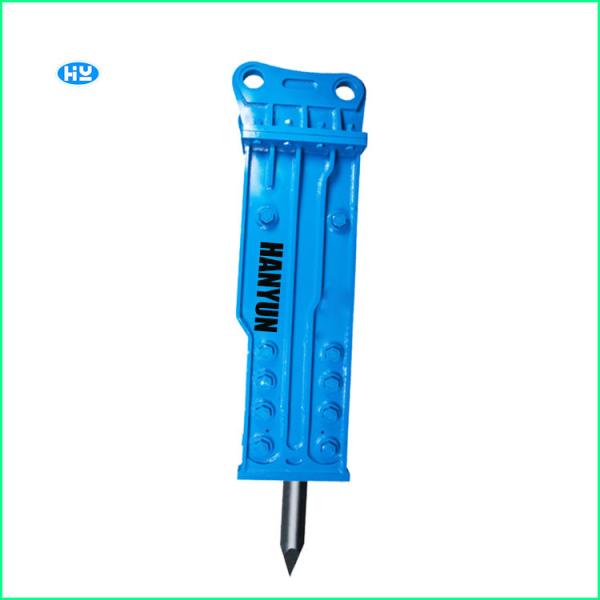

Blue 85mm Chisel Hydraulic Rock Breaker Skid Steer Excavator Hydraulic Hammer
Blue 85mm Chisel Hydraulic Rock Breaker Skid Steer Excavator Hydraulic Hammer
Specifications
Brand Name :
HANYUN
Model Number :
85mm breaker chisels
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 set/Negotiable
Price :
Negotiable
Payment Terms :
L/C, , T/T
Supply Ability :
5000 sets per year
Delivery Time :
5-20 working days
Packaging Details :
fumigation-free plywood box/ exported packages
Item 1 :
Hydraulic Rock Breaker
Item 2 :
Concrete Breaker Attachment For Skid Steer
Breaker chisel diameter :
85 mm
Breaker chisel feature :
High strength and anti-wearing
Breaker chisel materials :
40CR
Near port :
Qingdao/Tianjin/Shanghai Port
Applicable excavator weight :
<14t
Applicable skid steer weight :
<14t
Description

Blue Hydraulic Rock Breaker Concrete Breaker Attachment For Skid Steer​

(1) Main technical parameters on Hydraulic Rock Breaker

Model HY75 HY85
Breaker shell (KGS) 200 400
Total weight (KG) 345 493
Size (MM) 1140*370*740 1270*370*800
Driving oil pressure (KG/CM2) 120-150 130-160
Driving oil flow (L/MIN) 50-90 60-100
Striking(BPM) 400-800 400-800
Soft hose diameter (INCH) 1/2 3/4
Breaker chisel diameter (MM) 75 85
Breaker chisel weight (KG) 22 48
Applicable carrier weight (T) 6-9 7-14

(2) How to select one suitable hydraulic demolition breaker?

1. According to excavator model/ hydraulic oil pressure

2. According to working environment

3. Hydraulic rock breaker weight shall be suitable for the carrier

(3) One complete hydraulic rock breaker include:

1. Hydraulic breaker shell * 1 set

2. Breaker chisels * 2 pieces

3. Nitrogen bottle & meter * 1 set

4. Soft hose * 2 pieces

5. Tool set * 1 set

(4) FAQ

1. Q: Are you one factory?

A: Yes, we are one direct factory for producing hydraulic breaker hammers with 10 years experience;

2. Q: How do you control the quality?

A: As purchasing raw materials, we will check effective components of steel; in production, physical testing

and UT testing also used; after production, testing work of the complete machine;

3. Q: What is your quality warranty policy?

A: For complete machine, usually 6 months to 12 months quality warranty period;

For breaker chisels, they will be in quality warranty range when the breaker head damage <20cm;

For any damaged caused by improper operation will not be included in quality warranty policy

4. Q: What is the delivery period of one complete hydraulic demolition breaker?

A: For hydraulic demolition breaker with standard size, 3-7 days delivery period to China ports;

For breaker with customized size: 7-15 days delivery period to China ports

Blue 85mm Chisel Hydraulic Rock Breaker Skid Steer Excavator Hydraulic Hammer
