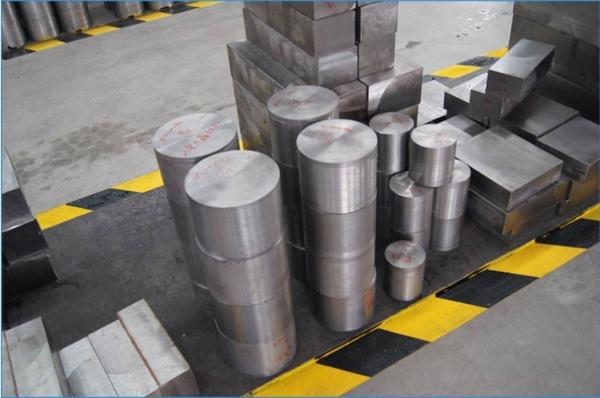

16mncr5 Grade Hot Forged Alloy Steel Round Bar With Length 1000mm - 12000mm
16mncr5 Grade Hot Forged Alloy Steel Round Bar With Length 1000mm - 12000mm
Specifications
Brand Name :
ust
Model Number :
80-850mm
Certification :
iso
Place of Origin :
China
MOQ :
2-3 tons
Price :
800-1000usd per ton
Supply Ability :
1000 per month
Delivery Time :
4-6 weeks
Packaging Details :
in bundles
Dimensions :
max 250mm
Special Use: :
Mold Steel
Length: :
1000mm-12000mm
Description

16mncr5 Hot Forged Alloy Steel Round Bar with competitive prices

Product Description


1. Steel Grade:16mncr5+Fp
2. Product name: Hot Forged Bar, Alloy Steel Round Bar 16mncr5+Fp/16mncrs5+Fp
3. Length: 1000mm-12000mm
4. Diameter: 4mm~600mm

Chemical composition:

C Si Mn P S Cr Ni Mo Cu V Al

0.15/0.19
0.15/0.35
1.0/1.3
<=0.025
<=0.03
0.85/1.1
<=0.25
<=0.1
<=0.25
<=0.05
0.02/0.05

Material: 16MnCr5 forged steel round bar Or square bar
Process: Forged from vacuum degassed ingots.
Diameter: 4mm-600mm (optional)
Length: 1000mm-12000mm Straightness: 3mm/M max(optional)
Process: EAF + LF + VD + Forged + Heat Treatment (optional)
Delivery condition: Hot forged +Rough machined (black surface after Q/T)+ Turned (optional)
Delivery Time: 7 days
MOQ: 20 tons
Heat treatment: Normalized / Annealed / Quenched / tempered (optional)
Technical Data: According to the customer's requirement of Chemical Composition, Physical Properties and Mechanical Testing
Properties: As your request
Test: Ultrasonic test according to SEP 1921-84 Class C/c and D/d (optional)
Marking: Grade, heat NO. length will be stamped one each bar with required color
Payment: 30% advance by TT; Balance pay before the shipment against shipping documents or irrevocable LC at sight
similar steel grade 20MnCR5
Application:

Statically and dynamically stressed components for vehicles, engines and machines. For parts of larger cross-sections, crankshafts, gears.

Below inspection will be done in the production.

(1) ray detection---RT;

(2) ultrasonic testing---UT;

(3) Magnetic Particle Testing-MT;

(4) penetration testing-PT;

(5) eddy current flaw detection-ET
