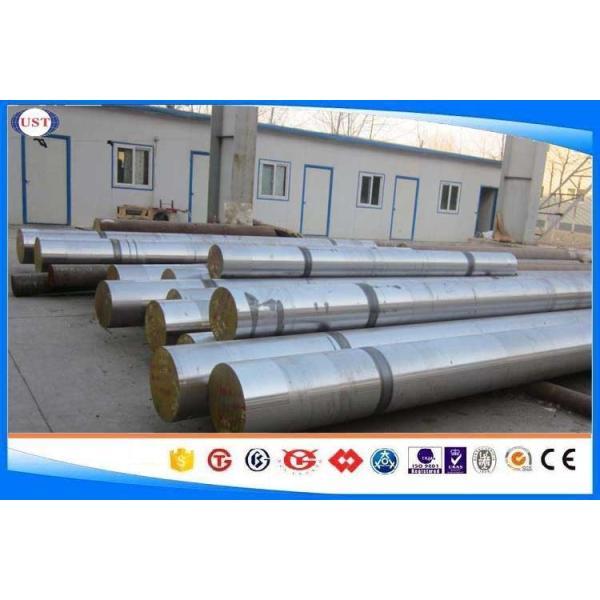

O2 / SKS9 / DIN1.2482 / 9Mn2V Tool Steel Bar For Cold Work Diameter 16-550 Mm
O2 / SKS9 / DIN1.2482 / 9Mn2V Tool Steel Bar For Cold Work Diameter 16-550 Mm
O2 / SKS9 / DIN1.2482 / 9Mn2V Tool Steel Bar For Cold Work Diameter 16-550 Mm
O2 / SKS9 / DIN1.2482 / 9Mn2V Tool Steel Bar For Cold Work Diameter 16-550 Mm
O2 / SKS9 / DIN1.2482 / 9Mn2V Tool Steel Bar For Cold Work Diameter 16-550 Mm
O2 / SKS9 / DIN1.2482 / 9Mn2V Tool Steel Bar For Cold Work Diameter 16-550 Mm
O2 / SKS9 / DIN1.2482 / 9Mn2V Tool Steel Bar For Cold Work Diameter 16-550 Mm
O2 / SKS9 / DIN1.2482 / 9Mn2V Tool Steel Bar For Cold Work Diameter 16-550 Mm
Specifications
Brand Name :
UST
Model Number :
Dia16-550mm
Certification :
ISO9001
Place of Origin :
China
MOQ :
MOQ: 3 ton
Price :
USD 1500- 2300/ton
Payment Terms :
L/C, T/T
Supply Ability :
1200 ton/month
Delivery Time :
Within 5-35 days
Packaging Details :
Plastic plugs in both ends, Hexagonal bundles of max 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips.
Production Technique :
Hot forged, hot rolled
Delivery condition :
Annealed
Shape :
High-quality Round Bar
Length :
as customer's requirement
Inspection :
The third party is acceptable
certificate :
ISO9001-2008
Description

O2/SKS9/DIN1.2482/9Mn2V Cold work special tool steel, tool steel bar, Dia16-550mm, Small MOQ

Applications:

Tool Steel for universal use , cutting tools, blanking and stamping dies , thread cutting tools, machine knives for the

wood paper and metal working industries, broaches, measuring tools, plastic moulds.

Steel Grade:

GB 9Mn2V

C Si Mn P S V
0,85 - 0,95 <=0.40 1.70~2.00 <=0,030 <=0,030 0,10-0.25

DIN- 1.2842 %:

C Si Mn P S Cr V
0,85 - 0,95 0,10 - 0,40 1,90 - 2,10 <=0,030 <=0,030 0,20 - 0,50 0,05 - 0,15

Similar grade: AISI-O2,SKS9. DIN 1.2482 GB 9Mn2V

Delivery Condition:

GB/T1299-2000 DIN AISI
Annealed (HB) <=229 <=220 183~212

Available sizes :

Round Bar: 16-550mm

Rolled flat bar Thickness 12-60mm width:200-610mm Rolled Round bar dia. 50-130mm

Forged flat bar Thickness:60-200mm width:100-800mm Forged round bar dia. 50-400mm

Properties

• Good wear resistance, and good hardenability

• Resistance to plastic deformation

Technique
EF/ESR + forging+hot rolled +annealed
Process

Furnce material-melting-steel ingot-forging-forging billet-heating-rolling -slow cooling-collecting-annealing-finishing-inspection-package-warehousing

Delivery condition

Annealed + black/peeled/turned/grinding/polishing surface option, Ultrosonic test accord with SEP 1921-84 class c/c
