W2Mo9Cr4VCo8 / DIN1.3207 / M42 High Speed Steel For Metal Cutting Tools Dia 2-400 Mm
W2Mo9Cr4VCo8 / DIN1.3207 / M42 High Speed Steel For Metal Cutting Tools Dia 2-400 Mm
W2Mo9Cr4VCo8 / DIN1.3207 / M42 High Speed Steel For Metal Cutting Tools Dia 2-400 Mm
W2Mo9Cr4VCo8 / DIN1.3207 / M42 High Speed Steel For Metal Cutting Tools Dia 2-400 Mm
Specifications
Brand Name :
UST
Model Number :
Dia: 2-400mm
Certification :
ISO 9001
Place of Origin :
China
MOQ :
MOQ: 300-500kg
Price :
USD 8000- 20000/ton
Supply Ability :
500 ton/month
Delivery Time :
Within 5-35 days
Packaging Details :
Plastic plugs in both ends, Hexagonal bundles of max 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips.
Quality Standard :
ASTM, DIN, GB, JIS etc
Process :
Hot Rolled, Hot Forged, Cold Drawn, Polished
Ultrasonic Test :
According with SEP 1921
Product Keyword :
high speed steel, high speed tool steel, hss, drill bit, cutting tool
Inspection :
The third party is acceptable
Straightness :
0.1/1000 (min)
Application :
metal-cutting tools
Keyword :
high speed steel
Description

M42/W2Mo9Cr4VCo8/DIN1.3207 high speed steels for metal-cutting tools, Dia: 2-400mm

Application

High-carbon, high-speed steel grade based on Mo, with high resistance to wear, red hardness and toughness. This steel grade displays good grind ability as a result of its low V content. Tools severe mechanical wear, e.g. in cases of small cross-section cuts and high cutting speeds. Particularly suitable for die-sinking cutters and one-lip cutters, and for tool bits in automatic lathes. Also suitable for non-cutting applications, e.g. cold extrusion rams, and for tools for machining aircraft materials, such as titanium alloys, etc.

Steel Grade:

GB W2Mo9Cr4VCo8 %

C Si Mn P S Cr Mo V W Co
1, 05 - 1,15 0.15 - 0,50 0.15 - 0,40 <=0,030 <=0,030 3,50 - 4,25 9.00 – 10.0 0.95 – 1.35 1.15- 1.85 7.75 – 8.75

DIN- 1.3207%

C Si Mn P S Cr Mo V W Co
1,20 - 1,35 <=0,45 <=0,40 <=0,030 <=0,030 3,80 - 4,50 3,20 - 3,90 3,00 - 3,50 9,00 - 10,00 9,50 - 10,50

Similar grade: AISI-M42

Delivery Condition:

GB/T1299-2000 DIN AISI
Annealed (HB) <=269 240~300

Size available

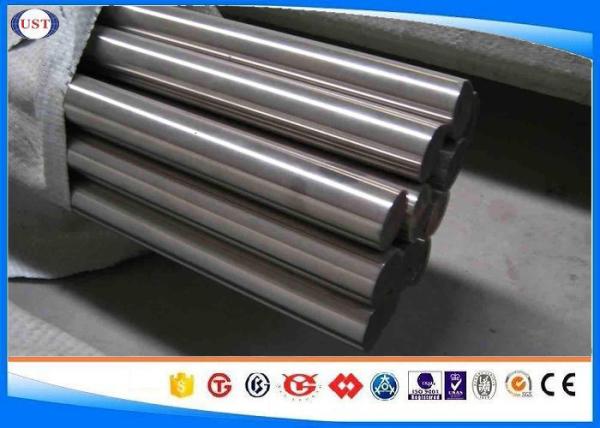

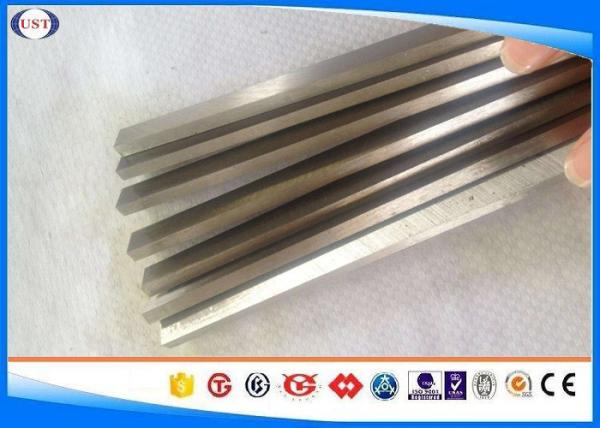

Round and Square Bar: 2mm -400mm

Flat: thickness:0.6-250mm, width:30-810mm

Length Random Length, Fixed Length, etc.

High Speed Steel got hardness method: 1. Salt bath hardening or vacuum hardening 2. the temperature 1180-1200°C, if need high hardness add 10°C 3. in the temperature 560°C, tempering more than 3 times. The most important: control hardening temperature and time.


Check below for more information on placing an order:

1.Inquiry-professional quotation.
2.Confirm the price, lead time, packing requirement, payment term etc.
3.Yongyi sales send the Proforma Invoice.
4.Customer make the payment for deposit and send us bank receipt.
5.Will inform client that we have got the payment, arrange the production & inform the estimated time.
6.End production-mass production products photos for approval. You can also arrange the third party Inspection .
7.Clients make payment for balance and Yongyi ship the goods .Also can accept payment term-Balance against B/L Copy Or L/C payment Term. Inform the tracking number and check the status for clients.
8.Order can be say "finish" when you receive the goods and satisfy with them .
9. Feedback to Yongyi about quality, service, market feedback & suggestion. and we can do better.

10.Third Party inspection acceptable, such as SGS, BV etc.

Marking: Heat No. will be cold stamped and Steel grade, diameter mm, length mm, and the manufacturer LOGO and weight kg is painted.

W2Mo9Cr4VCo8 / DIN1.3207 / M42 High Speed Steel For Metal Cutting Tools Dia 2-400 Mm

W2Mo9Cr4VCo8 / DIN1.3207 / M42 High Speed Steel For Metal Cutting Tools Dia 2-400 Mm

Please feel free to contact us again if you have any further questions. We look forward to receiving an order from you.
