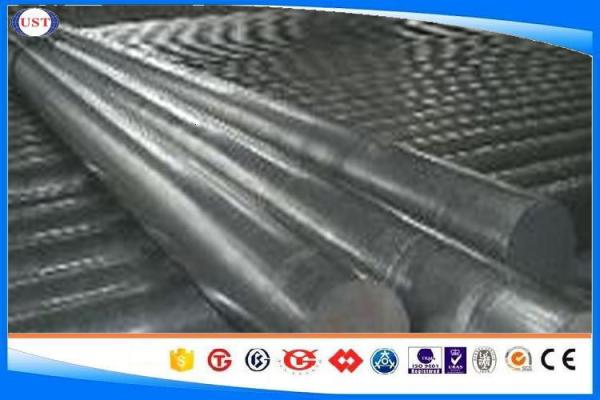

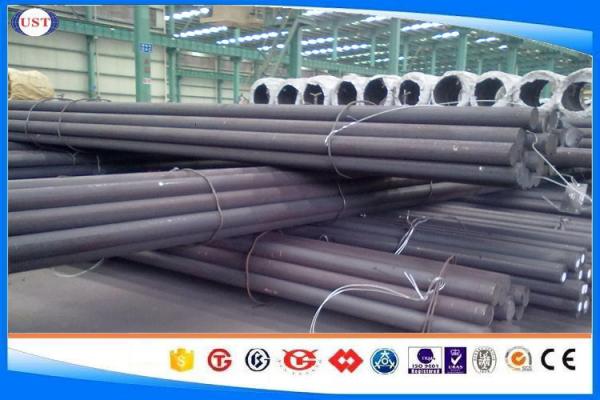

JIS SCM220 Alloy Steel Round Bar , Quenched and Tempered Steel Bar Dia 10-350mm
JIS SCM220 Alloy Steel Round Bar , Quenched and Tempered Steel Bar Dia 10-350mm
JIS SCM220 Alloy Steel Round Bar , Quenched and Tempered Steel Bar Dia 10-350mm
JIS SCM220 Alloy Steel Round Bar , Quenched and Tempered Steel Bar Dia 10-350mm
Specifications
Brand Name :
Unite Steel
Model Number :
Round bar
Certification :
MTC/SGS/BV/ISO
Place of Origin :
China
MOQ :
MOQ:2-3 Ton
Price :
USD 700-1000 per Ton
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
3000 Ton per Month
Delivery Time :
Within 15-45 days
Packaging Details :
Standard seaworthy packing or as your request
Product name :
JIS SCM220 Hot Rolled Steel Bar , Alloy Steel Round Bar , Quenched and Tempered Steel Bar , Dia 10-350mm
Material grade :
SCM220
Delivery condition :
Annealed/hot rolled/cold drawn/quenched & tempered
Surface :
Machined/peeled/polished/turned
Process :
EAF/LD+LF+VOD+Rolled+Heat Treatment(optional)
UT :
According to SEP 1921-84
Certificate :
ISO 9001:2008/SGS/BV
Shape :
Round section
Description

JIS SCM220 Alloy Steel Round Bar , Quenched and Tempered Steel Bar Dia 10-350mm

1.Specifications

Dia:10-350mm Length: as your request

2.Technique:hot rolled

Details of the product

1. Grade: ASTM:8620 /JIS SNCM220,GB:20CrNiMoA, ISO 20NiCrMo2 20NiCrMoS2

2. Surface: Black surface/Turned/Ground

3. Process:EAF+LF+VD+ hot rolled+ Heat Treatment (Annealed, Normalized, Q+T)

JIS SCM220 Alloy Steel Round Bar , Quenched and Tempered Steel Bar Dia 10-350mm

JIS SCM220 Alloy Steel Round Bar , Quenched and Tempered Steel Bar Dia 10-350mm

4. Machine Capability

Tensile strength (N/mm2Mpa): >=980(100)

Elongation: >=9

Yield strength: >=785(80)

Hardness: <=197HB

Reduction of area:>=40

Akv(J):>=47 akv(J/cm2)>=59(6)

5. Chemical Composition (%):

C Si Mn S P Cr Ni Cu Mo
0.17-0.23 0.17-0.37 0.60-0.95 0.035(max) 0.035(max) 0.40-0.70 0.35-0.75 0.030(max)

0.20-0.30
