Cold Drawn Process Cold Finished Bar ASTM A29 / EN 10083-3 / JIS G4053 Profile
Cold Drawn Process Cold Finished Bar ASTM A29 / EN 10083-3 / JIS G4053 Profile
Cold Drawn Process Cold Finished Bar ASTM A29 / EN 10083-3 / JIS G4053 Profile
Cold Drawn Process Cold Finished Bar ASTM A29 / EN 10083-3 / JIS G4053 Profile
Specifications
Brand Name :
UST
Model Number :
Round, square, flat, hex and irregular
Certification :
ISO 9001
Place of Origin :
Made In China
MOQ :
MOQ: 1-3 ton
Price :
USD 720- 1200/ton
Payment Terms :
L/C, T/T
Supply Ability :
1500 ton/month
Delivery Time :
1500 ton/month
Packaging Details :

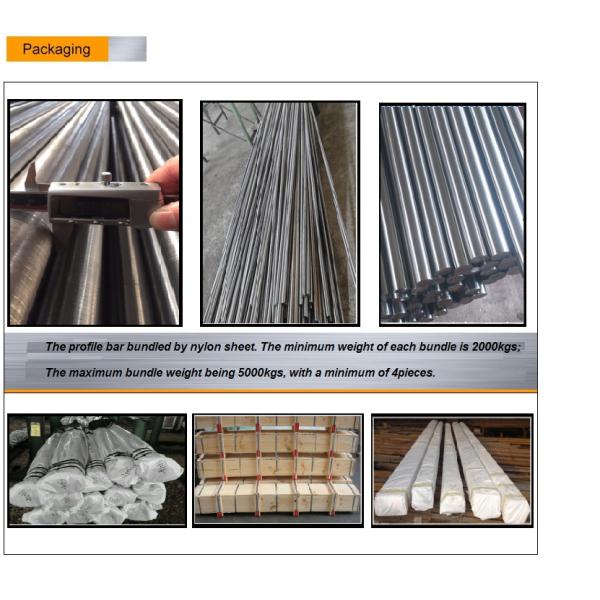

Plastic plugs in both ends, Hexagonal bundles of max 5000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips.
Shape :
Round, square, flat, hex and irregular
Surface condition :
Smooth surface, Peeled surface, Grinded and Polished surface
Delivery condition :
Hot rolled only, Stress relieved, Annealed, Normalized, Quenched and Tempered.
Quality Standard :
ASTM A29/EN 10083-3/JIS G4053
Material :
Carbon steel and alloy steel
Description

Cold Drawn Process Cold Finished Bar ASTM A29 / EN 10083-3 / JIS G4053 Profile

Standard:

ASTM A29 Standard Specification Steel Bars Carbon and Alloy Hot Wrought General Requirements.

JIS G4053 2008 Low alloyed steels for machine structural use.

Steel for quenching and tempering-Part3: Technical delivery conditions for alloy steels of EN 10083-3:2007.

BS EN 10084 2008 Case hardening steels - Technical delivery conditions.

Steel Grades:

ASTM A29: 5140,4120,4130,4135,4140,4150,8620,4340

JIS G4053: SCr440,SCM420,SCM430,SCM435,SCM440

EN10083: 41Cr4,25CrMo4,34CrMo4,42CrMo4

EN 10084: 21NiCrMo4

Delivery condition: Hot rolled only, Stress relieved, Annealed, Normalized, Quenched and Tempered.

Surface condition: Smooth surface, Peeled surface, Grinded and Polished surface.

Shape Specification(mm) Length(meter)
Round 2-100 5-8 or Random, can arbitrary cutting
Square S4-S95 5-8 or Random, can arbitrary cutting
Hex 4X4-100X100 5-8 or Random, can arbitrary cutting
Flat 2X4-10X125 5-8 or Random, can arbitrary cutting
Irregular More than 100pieces 5-8 or Random, can arbitrary cutting

Quality Assurance:
Size Allow Precision Level
H8 H9 H10 H11
Allow deciation(mm)
>2~6 0-0.18 0-0.030 0-0.048 0-0.075
>6~10 0-0.022 0-0.036 0-0.058 0-0.090
>10~18 0-0.027 0-0.043 0-0.070 0-0.110
>18~30 0-0.033 0-0.052 0-0.084 0-0.130
>30~50 0-0.039 0-0.062 0-0.100 0-0.160
>50~80 0-0.046 0-0.074 0-0.120 0-0.190
