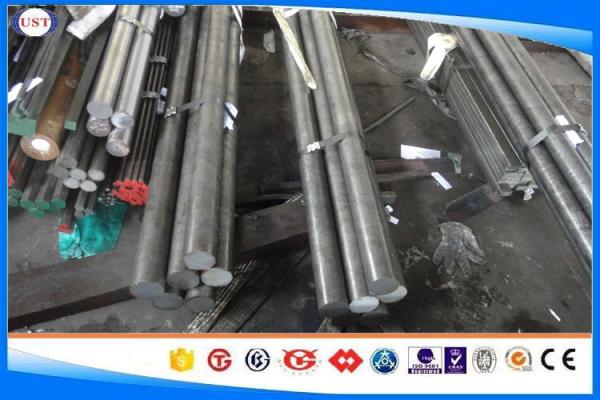

Bright Cold Finished Bar Diameter 2-100 Mm 1020 / S20C Carbon Steel
Bright Cold Finished Bar Diameter 2-100 Mm 1020 / S20C Carbon Steel
Bright Cold Finished Bar Diameter 2-100 Mm 1020 / S20C Carbon Steel
Bright Cold Finished Bar Diameter 2-100 Mm 1020 / S20C Carbon Steel
Specifications
Brand Name :
UST
Model Number :
Dia: 2-100mm
Certification :
ISO 9001
Place of Origin :
China
MOQ :
MOQ: 1-3 ton
Price :
USD 600- 800/ton
Supply Ability :
1500 ton/month
Delivery Time :
Within 5-35 days
Packaging Details :
Plastic plugs in both ends, Hexagonal bundles of max 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips.
Production Technique :
Cold drawn
Quality Standard :
ASTM A29, DIN, JIS
Surface :
Smooth or bright
Material :
carbon steel
Tolerance :
H8, H9,H10
Steel grade :
1020 / S20C
Description

1020/S20C cold drawn bright bar or cold finished bar, carbon steel, Dia: 2-100mm

APPLICATIONS:

Plain carbon steel for mechanical engineering and automotive components.

It is usually supplied untreated but can be supplied to order in the normalized or finally heat treated (quenched and tempered to "Q" or "R" properties), which is adequate for a wide range of applications.

It is a very popular grade of through-hardening medium carbon steel, which is readily machinable in any condition. It is suitable for the manufacture of parts such as general-purpose axles and shafts, gears, bolts and studs. It can be further surface-hardened typically to 50-55 HRC by induction processes, producing components with enhanced wear resistance.

In its heat treated forms possesses good homogenous metallurgical structures, giving consistent machining properties.

Size range:

Dia: 2-100mm

Length Random Length, Fixed Length, etc.

The tolerance:

Black, Peeled K12, Cold Drawn, Turned & Polished H10, H11, Precision Ground H9, H8

Chemical composition(%):

Grade C Si Mn P S Cr Mo
1020 0.18-0.25 / 0.30-0.60 0.040 max 0.050 max /

/

Certificate of Quality: issued in English, in addition the normal terms, production process, the mechanical property yield strength, tensile strength, elongation and hardness, forged ratio, UT test result, Grain size, heat treatment methods and the sample of is shown on the Certificate of Quality.
