4140 / 42CrMo4 / SCM440 Carbon Steel Shaft , OD 80-1200 Mm Rotor Shaft
4140 / 42CrMo4 / SCM440 Carbon Steel Shaft , OD 80-1200 Mm Rotor Shaft
4140 / 42CrMo4 / SCM440 Carbon Steel Shaft , OD 80-1200 Mm Rotor Shaft
4140 / 42CrMo4 / SCM440 Carbon Steel Shaft , OD 80-1200 Mm Rotor Shaft
4140 / 42CrMo4 / SCM440 Carbon Steel Shaft , OD 80-1200 Mm Rotor Shaft
4140 / 42CrMo4 / SCM440 Carbon Steel Shaft , OD 80-1200 Mm Rotor Shaft
4140 / 42CrMo4 / SCM440 Carbon Steel Shaft , OD 80-1200 Mm Rotor Shaft
4140 / 42CrMo4 / SCM440 Carbon Steel Shaft , OD 80-1200 Mm Rotor Shaft
4140 / 42CrMo4 / SCM440 Carbon Steel Shaft , OD 80-1200 Mm Rotor Shaft
4140 / 42CrMo4 / SCM440 Carbon Steel Shaft , OD 80-1200 Mm Rotor Shaft
Specifications
Model Number :
OD: 80-1200mm
Certification :
ISO 9001
Place of Origin :
China
MOQ :
MOQ: 1 pieces
Price :
USD 80- 1200/pieces
Supply Ability :
2000/pieces
Delivery Time :
Within 5-35 days
Packaging Details :
Wooden case or according to customers' requirement
Brand Name :
UST
Production Technique :
hot forged
Quality Standard :
ISO, GB, ASTM, DIN, JIS
Surface :
Black, Bright, Smooth
Product name :
Carbon Steel, Alloy steel,Stainless steel
Inspection :
The third party is acceptable
Testing :
Eddy test
Description

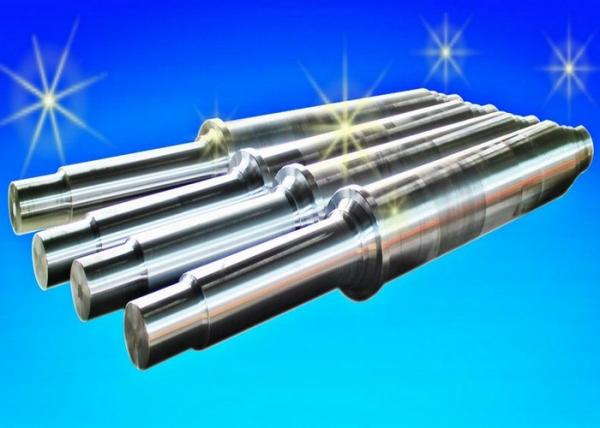

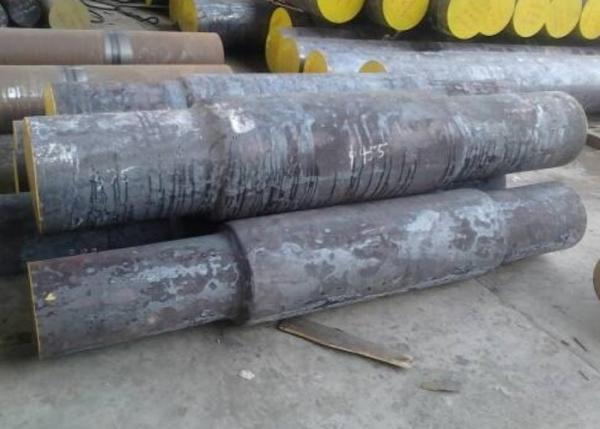

4140/42CrMo4/SCM440 forged steel shaft for mechnical purpose, OD: 80-1200mm

Application: Oil exploration, automobiles, machinery, etc

Service Drawings or samples processing/OEM/ODM service provided

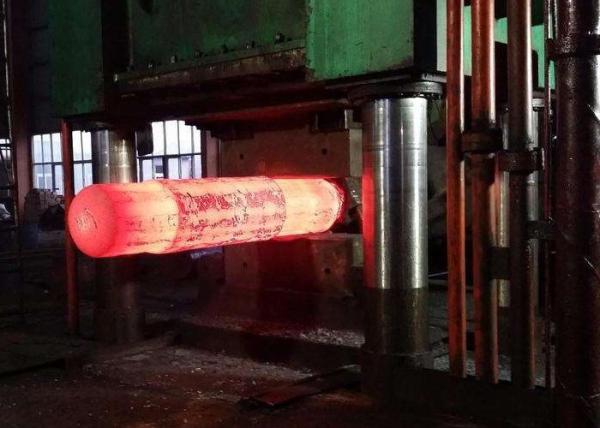

Produce Process

Drawings→ mould making → pre-forging →rough machining

or finish machining →surface treatment →product checking

→ packing →delivery
Forging Material Carbon Steel, Alloy steel,Stainless steel
Standard ISO, GB, ASTM, DIN, JIS
Produce Equipment

Friction Screw Press Series, CNC Lathe, Machining Center

(Vertical Spindles), CNC Milling Machine, Bench Drilling

Machine, Heat Treatment Equipments and so on.
Surface treatment

Heat treatment, Polishing, shot blasting,

Painting, Electro-plating, Chemical Plating,

Inspection

Equipments

Metallurgical analysis, Tensile strength tester, Hardness

tester, Altimeter, Scale Micrometer, pressure tester, etc.
Delivery

Samples are sent by express

Large quantity products delivered to customer by sea

or according to your request

Chemical requirements:

Grade C Si Mn P S Cr Mo Cu
4140 0.38~0.43 0.15~0.35 0.75~1.00 ≤0.035 ≤0.040 0.80~1.10 0.15~0.25 /
SCM440 0.38~0.43 0.15~0.35 0.60~0.85 ≤0.030 ≤0.030 0.90~1.20 0.90~1.20 ≤0.30
42CrMo4 0.38~0.45 ≤0.40 0.60~0.90 ≤0.035 ≤0.035 0.90~1.20 0.15~0.30 /
42CrMo 0.38~0.45 0.17~0.37 0.50~0.80 ≤0.030 ≤0.030 0.90~1.20 0.15~0.25 /

Package

In bundle or as your request.

Our Services

Third Party inspection acceptable. such as SGS, BV etc.

Supplying financial support with usance L/C 180 days after B/L date.

4140 / 42CrMo4 / SCM440 Carbon Steel Shaft , OD 80-1200 Mm Rotor Shaft

4140 / 42CrMo4 / SCM440 Carbon Steel Shaft , OD 80-1200 Mm Rotor Shaft

Please feel free to contact us again if you have any further questions. We look forward to receiving an order from you.
