AISI8260 / 21NiCrMo2 / DIN1.6523 Forged Steel Shaft For Mechnical OD 80-1200 Mm
AISI8260 / 21NiCrMo2 / DIN1.6523 Forged Steel Shaft For Mechnical OD 80-1200 Mm
AISI8260 / 21NiCrMo2 / DIN1.6523 Forged Steel Shaft For Mechnical OD 80-1200 Mm
AISI8260 / 21NiCrMo2 / DIN1.6523 Forged Steel Shaft For Mechnical OD 80-1200 Mm
AISI8260 / 21NiCrMo2 / DIN1.6523 Forged Steel Shaft For Mechnical OD 80-1200 Mm
AISI8260 / 21NiCrMo2 / DIN1.6523 Forged Steel Shaft For Mechnical OD 80-1200 Mm
AISI8260 / 21NiCrMo2 / DIN1.6523 Forged Steel Shaft For Mechnical OD 80-1200 Mm
AISI8260 / 21NiCrMo2 / DIN1.6523 Forged Steel Shaft For Mechnical OD 80-1200 Mm
Specifications
Brand Name :
UST
Model Number :
OD: 80-1200mm
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
MOQ: 1 pieces
Price :
USD 80- 1200/pieces
Supply Ability :
2000/pieces
Delivery Time :
Within 5-35 days
Packaging Details :
Wooden case or according to customers' requirement
Production Technique :
hot forged
Quality Standard :
ISO, GB, ASTM, DIN, JIS
Product name :
Alloy steel,
Delivery condition :
Hot Forged +Rough Machined (black Surface)
Inspection :
The third party is acceptable
Material :
8620
Description

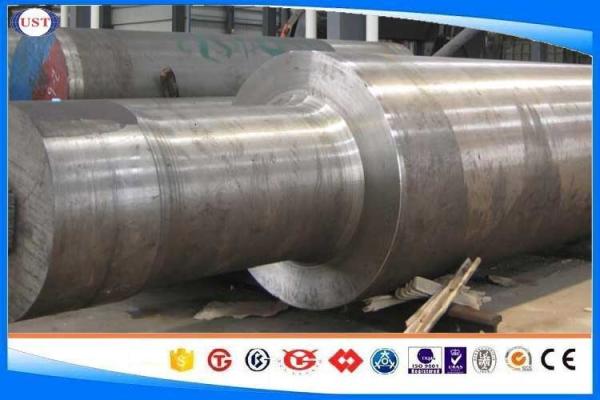

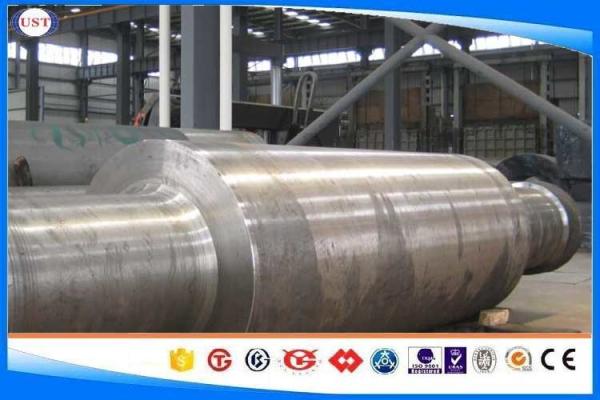

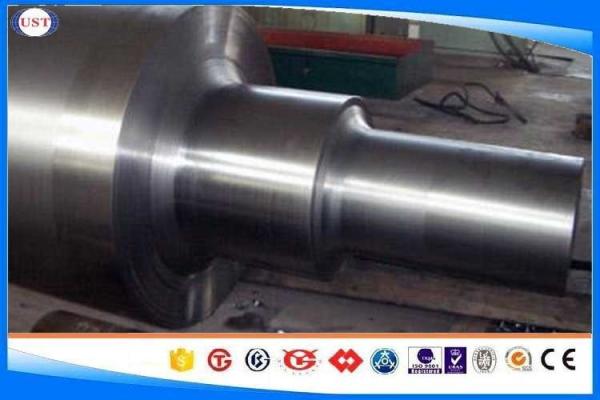

AISI8260/21NiCrMo2/DIN1.6523 high-quality hot forged steel shaft for mechnical purpose, OD: 80-1200mm

APPLICATIONS:

AISI 8620 is a common, carburizing alloy steel used for a variety of medium-strength applications including gears, camshafts, fasteners, and chains/chain pins. Flexibility in hardening treatments allow optimization of case/core properties. Typical uses are: Arbors, Bearings, Bushings, Cam Shafts, Differential Pinions, Guide Pins, King Pins, Pistons Pins, Splined Shafts, Ratchets, Sleeves etc..

Related Specifications

Australia AS 1444-1996-8620/8620H

Germany W.Nr 1.6523 DIN 21NiCrMo2

Great Britain BS970: PART 3: 1991 805 M20

BS970: 1955 - EN362

Japan JISG 4052 SNCM 220H

JIS SNCM 21 , JIS SNCM 21 H

U.S.A. SAE 8620 AISI 8620

ASTM A29/A29M 1991 8620

UNS G86200

AMS 6274 , AMS 6274G , AMS 6276 , AMS 6276C , AMS 6277 , AMS 6277A ,

ASTM A322 , ASTM A331 , ASTM A505 , ASTM A513 ,

MIL SPEC MIL-S-16974 ,

SAE J404 , SAE J770 ,

UNS G86200

France: AFNOR 20 NCD 2 , AFNOR 22 NCD 2

Italy: UNI 20 NiCrMo 2

Chemical Composition(%):

Carbon 0.17-0.23

Silicon 0.10-0.40

Manganese 0.60-0.95

Nickel 0.35-0.75

Chromium 0.35-0.75

Molybdenum 0.15-0.25

Phosphorous 0.04 max

Sulphur 0.04 max

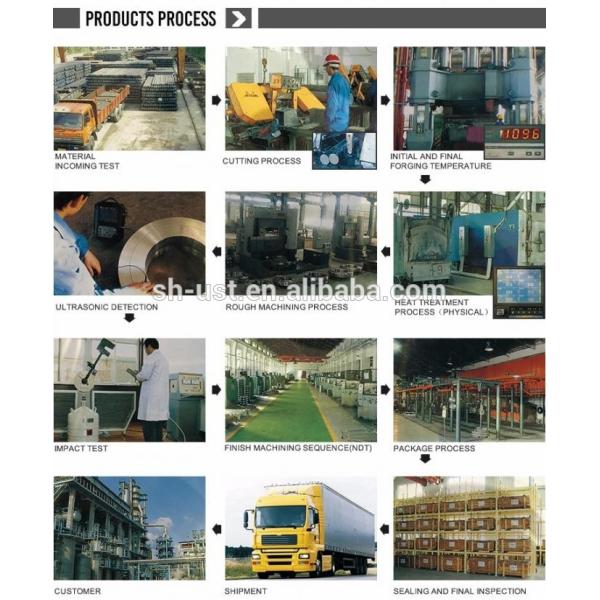

Process: EAF+LF+VOD+Forged+Heat Treatment(optional)

Annealed:(Metallurgy) to temper or toughen (something) by heat treatment

Normalized:To remove strains and reduce coarse crystalline structures in (metal), especially by heating and cooling.

Quenched: To cool (hot metal) by thrusting into water or other liquid.

Tempered: Having the requisite degree of hardness or elasticity. Used of glass or a metal.

SIZE RANGE:

Hot Forged: Dia 80 mm -1200mm

SURFACE FINISHES:

Black, grinded, rough turned, turned by machine

Test: Ultrasonic test according to SEP 1921-84

AISI8260 / 21NiCrMo2 / DIN1.6523 Forged Steel Shaft For Mechnical OD 80-1200 MmAISI8260 / 21NiCrMo2 / DIN1.6523 Forged Steel Shaft For Mechnical OD 80-1200 Mm
