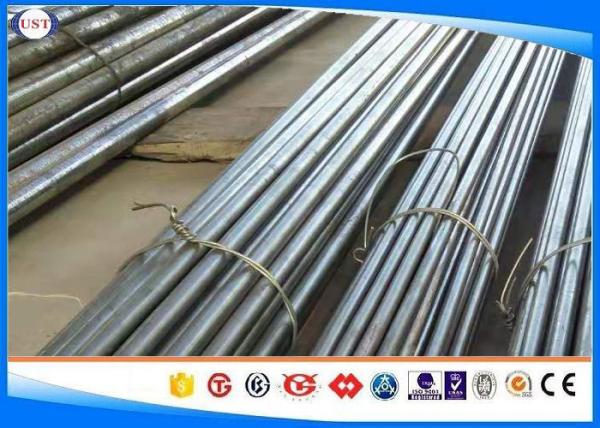

Annealed Tool Steel Bar For Roller 9KH2 Grade Electrical Resistance ISO 9001
Annealed Tool Steel Bar For Roller 9KH2 Grade Electrical Resistance ISO 9001
Specifications
Brand Name :
UST
Model Number :
9KH2 ( 9Х2 )
Certification :
ISO 9001:2008
Place of Origin :
CHINA
MOQ :
1-3 Ton/Tons
Price :
1000-1500$/ton
Payment Terms :
L/C, T/T
Supply Ability :
1000 Ton/Tons per Month
Delivery Time :
5-8 work days
Packaging Details :
In bundles, plywood cases, wooden cases with water-proof package,or as customer required
Classification : :
Tool steel for roller
Delivery condition :
Annealed
MOQ :
1TONS
Surface :
Black or bright
skype :
amywang20131
Application :
Tool steel for roller
Description

Tool steel for roller Characteristics for grade 9KH2 ( 9Х2 )

Grade : 9KH2 ( 9Х2 )
Substitute: 9Х1
Classification : Tool steel for roller
Equivalent grades:

Chemical composition in % for grade 9KH2 ( 9Х2 )

C Si Mn Ni S P Cr
0.85 - 0.95 0.25 - 0.5 0.2 - 0.7 max 0.5 max 0.03 max 0.03 1.7 - 2.1


Temperature of critical points for grade 9KH2 ( 9Х2 ).

Ac1 = 756 , Ac3(Acm) = 783
Technological properties for grade 9KH2 ( 9Х2 )
Weldability: is not used.
Flakes : predisposed
Temper brittleness: predisposed


Equivalent steels for grade 9KH2 ( 9Х2 )
Warning! Indicated both exact and nearest equivalents.
USA Germany France England
- DIN,WNr AFNOR BS
L3
1.2067
Y100C6
BL3


Specification :
Mechanical properties :
sв - Tensile strength , [MPa]
sT - Yield stress, [MPa]
d5 - Specific elongation at fracture , [ % ]
y - Reduction of area , [ % ]
KCU - Impact strength , [ kJ / m2]
HB - Brinell hardness , [MPa]

Physical properties :
T - Test temperature , [Grade]
E - Young modulus , [MPa]
a - Coefficient of linear expansion (range 20o - T ) , [1/Grade]
l - Termal (heat) condition coefficient , [Watt/(m·Grade)]
r - Density , [kg/m3]
C - Specific heat ( range 20o - T ), [J/(kg·Grade)]
R - Electrical resistance , [Ohm·m]

Weldability :
without limitations - welding is done without heating and subsequent heat treeting
limited weldability - welding is possible under heating up to 100-120 grade and subsequent heat treeting
hard weldability - obtaining the quality welding needs the additional operations:heating up to 200-300 grade; the heat treeting ia annealing
9KH2 ( 9Х2 ) - Tool steel for roller: chemical composition, mechanical and physical properties, hardness
Database of steels and alloys (Marochnik) contains information about chemical composition and properties more then 3000 steels and alloys

Weldability: is not used.
Flakes : predisposed
Temper brittleness: predisposed
