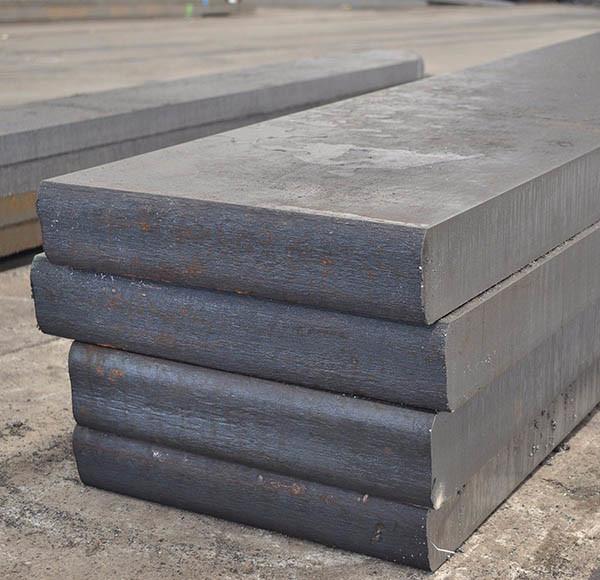

3KH3M3F Rectangular Steel Bar / Die Tool Steel Flat Bar Corrosion Resistance
3KH3M3F Rectangular Steel Bar / Die Tool Steel Flat Bar Corrosion Resistance
Specifications
Brand Name :
UST
Model Number :
DIA16-800MM
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
MOQ: 2 ton
Price :
USD$1000-1500/ton
Payment Terms :
L/C, T/T
Supply Ability :
1500 ton/month
Delivery Time :
Within 5-35 days
Packaging Details :
Plastic plugs in both ends, Hexagonal bundles of max 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips.
model :
DIA16-800MM
Equivalent steels :
3KH3M3F ( 3Х3М3Ф )
MOQ :
2 TONS
Length :
as your requirements
Application :
Mold steel
Hot sale :
Discount code
Description

Steel and Alloy -Tool steel 3KH3M3F / 3Х3М3Ф

Characteristics for grade 3KH3M3F ( 3Х3М3Ф )

Grade: 3KH3M3F ( 3Х3М3Ф )

Classification: Die tool steel

Chemical Composition in % for grade 3KH3M3F ( 3Х3М3Ф )

C:0.27-0.34
Si: 0.1-0.4
Mn: 0.2-0.5
Ni:0.4 max
S: 0.03 max
P: 0.03max
Cr: 2.8-3.5
Mo:2.5-3
V: 0.4-0.6
Cu: 0.3max

Mechanical properties under Т=20oС for grade 3KH3M3F ( 3Х3М3Ф )

Assortment

Dimension

Direct.

sв

sT

d5

y

KCU

Heat treatment

-

mm

-

MPa

MPa

%

%

kJ / m2

-

Steel

1670

1470

50

220

Guenching 1040oC, oil, Drawing 600oC, 2h,

Brinell hardness for 3KH3M3F ( 3Х3М3Ф ) (heat treatment) , GOST 5950-2000

HB 10 -1 = 229 MPa



Physical properties for grade 3KH3M3F ( 3Х3М3Ф )
TE 10- 5a 10 6lrCR 10 9
GradeMPa1/GradeWatt/(m·Grade)kg/m3J/(kg·Grade)Ohm·m
202.07 327828 314
100 347808 365
200 367783 430
3001.77 367754 515
400 367721 600
500 367684 710
600 347642 835
700 347597 965
800 337565 1118
900 347525 1151
TE 10- 5a 10 6lrCR 10 9

Equivalent steels for grade 3KH3M3F ( 3Х3М3Ф )
Warning! Indicated both exact and nearest equivalents.

USA

Germany

Japan

France

England

European

Italy

Spain

Bulgaria

Hungary

Poland

Romania

Czechia

Austria

-

DIN,WNr

JIS

AFNOR

BS

EN

UNI

UNE

BDS

MSZ

PN

STAS

CSN

ONORM

H10

H12

T20810

1.2365

30CrMoV12

45WCrV7

X30WCrV5-3

X30WCrV9-3

X32CrMoV3-3

X32CrMoV33

SKD62

SKD7

32CDV12-28

32CrMoV12-28

Z35CWDV5

2365

BH10

BH12

1.2365

1.6580

30CrMoV12-11

30CrNiMo8

32CrMoV12-28

30CrMoV12-27KU

30CrMoV12

32CrMoV12-28

CMV40

K14

WLV

31VMoCr29

19541

BOHLERW320

W320


Types of delivery of grade 3KH3M3F ( 3Х3М3Ф
В22 - Graded and shaped rolling
B31 - Blanks, Blanks, Slabs
В32 - Graded and shaped rolling
B33 - Sheets and Strips

Specification :
Mechanical properties :
sв- Tensile strength , [MPa]
sT- Yield stress, [MPa]
d5- Specific elongation at fracture , [ % ]
y- Reduction of area , [ % ]
KCU- Impact strength , [ kJ / m2]
HB- Brinell hardness , [MPa]

Physical properties :
T- Test temperature , [Grade]
E- Young modulus , [MPa]
a- Coefficient of linear expansion (range 20o - T ) , [1/Grade]
l- Termal (heat) condition coefficient , [Watt/(m·Grade)]
r- Density , [kg/m3]
C- Specific heat ( range 20o - T ), [J/(kg·Grade)]
R- Electrical resistance , [Ohm·m]

3KH3M3F ( 3Х3М3Ф ) - Die tool steel: chemical composition, mechanical and physical properties, hardness
Database of steels and alloys (Marochnik) contains information about chemical composition and properties more then 3000 steels and alloys
