CRAWLER EXCAVATOR KBA10750 CX290 CX290B TRAVEL MOTOR LJ018700 LN001980 CX300C MOTOR ASSY TRAVEL
CRAWLER EXCAVATOR KBA10750 CX290 CX290B TRAVEL MOTOR LJ018700 LN001980 CX300C MOTOR ASSY TRAVEL
CRAWLER EXCAVATOR KBA10750 CX290 CX290B TRAVEL MOTOR LJ018700 LN001980 CX300C MOTOR ASSY TRAVEL
CRAWLER EXCAVATOR KBA10750 CX290 CX290B TRAVEL MOTOR LJ018700 LN001980 CX300C MOTOR ASSY TRAVEL
Specifications
Brand Name :
TCY
Model Number :
CX290 CX300 ect.
Place of Origin :
Made in china
MOQ :
1
Price :
1000-2000
Payment Terms :
T/T,Alipay,Wechat ...etc.,
Delivery Time :
2-3/Negotiate
Packaging Details :
Wooden Case
Part Number: :
KBA10750 LJ018700R LJ018700C LJ014910 ect.
Apply for :
CX290 CX290B CX300 CX300C ect.
Product Name: :
Final drive
Weight :
410kg
Packing :
55*55*75
Warranty :
6 months
Application :
Excavator Final Device
Delivery Port :
guangzhou ningbo yiwu
Description

New Aftermarket

CRAWLER EXCAVATOR KBA10750 CX290 CX290B TRAVEL MOTOR LJ018700 LN001980 CX300C MOTOR ASSY TRAVEL

Product description

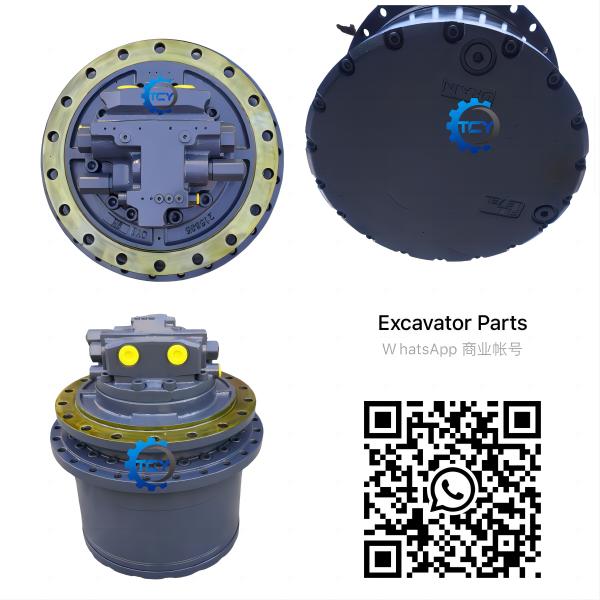

Model:CX290 CX290B CX300 CX300C Part name:Travel Motor Assy
Part NO.:KBA10750 LJ018700R LJ018700C LJ014910 ect. MOQ:1PCS
Packing:Wooden case Place of Origin:China
Aftersale service provided:Online support Apply To:Excavator Final Device
Delivery Time: 1-3 days Or negotiate Note: Other models can be consulted online

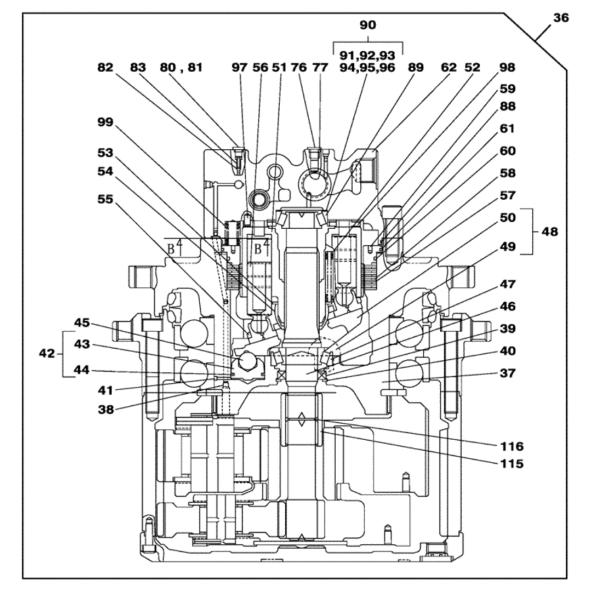

Product structure diagram

CRAWLER EXCAVATOR KBA10750 CX290 CX290B TRAVEL MOTOR LJ018700 LN001980 CX300C MOTOR ASSY TRAVEL

CRAWLER EXCAVATOR KBA10750 CX290 CX290B TRAVEL MOTOR LJ018700 LN001980 CX300C MOTOR ASSY TRAVEL

Pos. Part No Qty Parts name Comments
KBA10750 [1] MOTO-REDUCTION GEAR SUM Includes All Parts On Figures 06-02-06-04 Superseded by
part number:LJ018700,LN001980
·· LJ018700R [1] REMAN-HYD MOTOR RAC CX290B CRAWLER EXCAVATOR TIER 3(NA)(1/07-),ASSY,
Reman for New PN KBA10750
LJ018700C [1] CORE-MOTOR HYDRAULIC RAC Return Number
·· LJ014910 [1] HYDRAULIC MOTOR SUM Motor,Piston;Incl.37-116;Also Includes Parts On Figure
06-04 Superseded by part number:LJ018700
37. LW005120 [1] BOX SUM
38. LK005330 [1] PLUG SUM
39. LE00997 [1] OIL SEAL SUM
40. 800-2168 [1] SNAP RING,M68,Int CAS Superseded by part number:11061376
41. LK00394 [1] PLUG SUM
·· LJ013800 [1] PISTON SUM Incl.43,44
43. LJ013810 [1] PISTON SUM Superseded by part number:LJ013800
44. LE012890 [1] SEAL SUM Superseded by part number:LJ013800
45. LB011180 [1] BALL SUM
46. LB00792 [1] DRIVE SHAFT SUM
47. LB00796
[1]		 TAPERED BEARING,45mm IDx85mm

ODx24.75mm W		 SUM
·· LR015510 [1] PLATE SUM Incl.49,50
49. NSS [2] NOT SOLD SEPARAT CON Bearing,Roller
50. NSS [1] NOT SOLD SEPARAT CON Plate,Shoe
51. LS00206 [1] CYLINDER BLOCK SUM
52. LG00430 [9] COMPRESSION SPRING SUM
53. LR00862 [1] SPRING SEAT SUM
54. LB00795 [1] BALL JOINT SUM
55. LH00320 [1] RETAINER SUM
56. LJ00955 [9] PISTON SUM
57. LR00859 [5] ADJUSTING PLATE SUM
58. LR00858 [4] PLATE SUM
59. LJ00954 [1] PISTON SUM
60. LE012900 [1] SEALING RING SUM SEALRING
61. LE012910 [1] SEALING RING SUM SEALRING
62. LW005130 [1] COVER SUM
76. LK00391 [2] PLUG SUM
77. 154467A1 [2] O-RING,10.8mm IDx2.4mm Width SUM
80. TK00028 [5] PLUG SUM
81. 154455A1 [5] O-RING SUM
82. TJ00129 [3] CHECK VALVE SUM
83. TG00045 [3] SPRING SUM
88. LE00999 [1] O-RING SUM
89. LB00797 [1] TAPERED BEARING,35mm IDx72mm

ODx24.25mm W		 SUM
·· LH00389 [1] SHIM KIT SUM Incl.91-96
91. LH00428 [1] SHIM,0.4mm Thk SUM
92. LH00429 [1] SHIM,0.5mm Thk SUM
93. LH00430 [1] SHIM,0.6mm Thk SUM
94. LH00431 [1] SHIM,0.7mm Thk SUM
95. LH00432 [1] SHIM,0.8mm Thk SUM
96. LH00433 [1] SHIM,0.9mm Thk SUM
97. 837-8012 [1] DOWEL,M8×12 CAS
98. LR00860 [1] PLATE SUM
99. LG00431 [14] COMPRESSION SPRING SUM
115. LB00793 [1] COUPLING FLANGE SUM
116. 800-2140 [1] SNAP RING,M40,Int CAS Superseded by part number:300644

Exhibition

CRAWLER EXCAVATOR KBA10750 CX290 CX290B TRAVEL MOTOR LJ018700 LN001980 CX300C MOTOR ASSY TRAVEL

CRAWLER EXCAVATOR KBA10750 CX290 CX290B TRAVEL MOTOR LJ018700 LN001980 CX300C MOTOR ASSY TRAVEL

CRAWLER EXCAVATOR KBA10750 CX290 CX290B TRAVEL MOTOR LJ018700 LN001980 CX300C MOTOR ASSY TRAVEL

About shipping

CRAWLER EXCAVATOR KBA10750 CX290 CX290B TRAVEL MOTOR LJ018700 LN001980 CX300C MOTOR ASSY TRAVEL

CRAWLER EXCAVATOR KBA10750 CX290 CX290B TRAVEL MOTOR LJ018700 LN001980 CX300C MOTOR ASSY TRAVEL

FAQ

Q:What is your sample policy?

A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q:What are your main products?

A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.

If you need other excavator accessories, we can also supply according to your.

Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.

Q:How do I order?

A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.

Q:How do I pay?
A:You can pay through T/T, Alibaba trade guarantee or negotiate payment.
