230-00067 104-00045 No.2 Carrier Assembly Dx300lc Solar300ll Dx300lca Dh300-7 Swing Gearbox K1002518B Spare Part
230-00067 104-00045 No.2 Carrier Assembly Dx300lc Solar300ll Dx300lca Dh300-7 Swing Gearbox K1002518B Spare Part
230-00067 104-00045 No.2 Carrier Assembly Dx300lc Solar300ll Dx300lca Dh300-7 Swing Gearbox K1002518B Spare Part
230-00067 104-00045 No.2 Carrier Assembly Dx300lc Solar300ll Dx300lca Dh300-7 Swing Gearbox K1002518B Spare Part
230-00067 104-00045 No.2 Carrier Assembly Dx300lc Solar300ll Dx300lca Dh300-7 Swing Gearbox K1002518B Spare Part
230-00067 104-00045 No.2 Carrier Assembly Dx300lc Solar300ll Dx300lca Dh300-7 Swing Gearbox K1002518B Spare Part
Specifications
Brand Name :
TCY
Model Number :
DX300LCA
Place of Origin :
Made in china
MOQ :
1
Price :
20-200
Payment Terms :
T/T,Alipay,Wechat ...etc.
Delivery Time :
2-3/Negotiate
Packaging Details :
Standard export packing
Part Number: :
230-00067 104-00045 ect
Product Name: :
No.2 Carrier assembly
Apply For :
DX300lc Solar300ll DX300LCA DH300-7
Weight :
40KG/Set
MOQ :
1Set
Application :
Excavator Swing Device
Condition :
New
Type :
After Market
Delivery time :
Within 1-3 days after payment/negotiation
Description

TCY 230-00067 104-00045 No.2 Carrier Assembly Dx300lc Solar300ll Dx300lca Dh300-7 Swing Gearbox Spare Part

Product details

Model DX300LCA
Part name 2nd Swing Carrier Assembly
Part Number 230-00067 ect
Quality High-Quality
MOQ 1PCS
Application Excavator Swing Drive
Processing Casting
Place of Origin zhejiang,China
Delivery Time 1-3 days Or negotiate
Note Other models can be consulted online

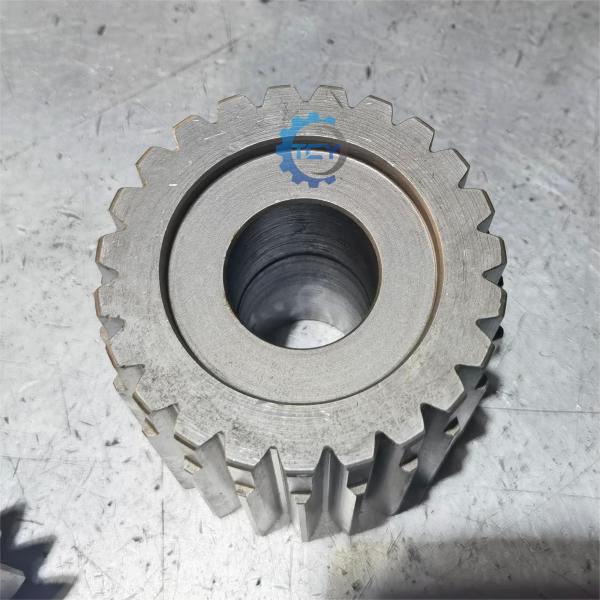

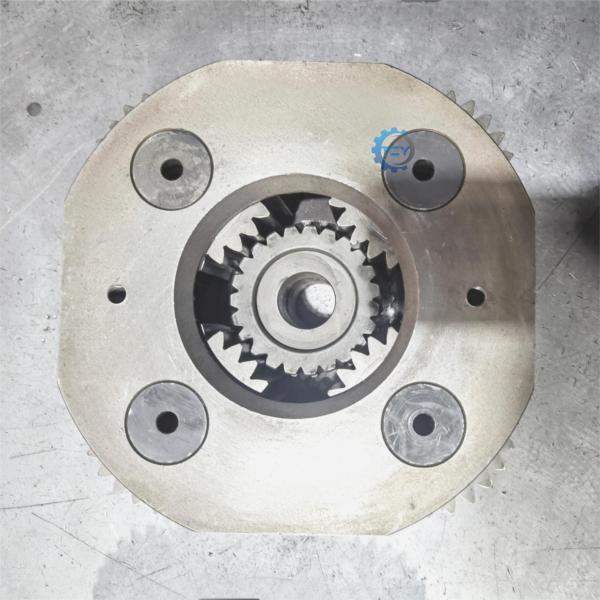

Product picture

230-00067 104-00045 No.2 Carrier Assembly Dx300lc Solar300ll Dx300lca Dh300-7 Swing Gearbox K1002518B Spare Part

230-00067 104-00045 No.2 Carrier Assembly Dx300lc Solar300ll Dx300lca Dh300-7 Swing Gearbox K1002518B Spare Part

Parameter

Part name NO.2 swing carrier assy
Centre gear teeth 23T
Carrier teeth Planet carrier 30T Planet gear 26T

230-00067 104-00045 No.2 Carrier Assembly Dx300lc Solar300ll Dx300lca Dh300-7 Swing Gearbox K1002518B Spare Part

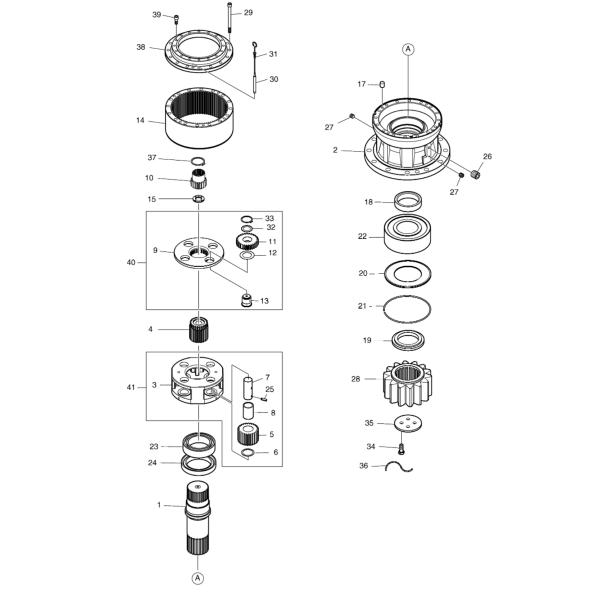

1 K1002518B REDUCTION GEAR;SWING
2 130401-00021
3 105-00011A SHAFT
4 101-00024 GEAR;SUN NO.1
5 104-00041 GEAR:PLANETARY NO.1
6 223-00044 PLATE:SIDE NO.1
7 123-00457 PIN
8 120501-00457
9 104-00046 GEAR;RING
10 223-00045 PLATE;THRUST
11 705-00008 PIN:LOCK
12 114-00543 SPACER
13 114-00544 COLLAR
14 245-00001 CASE;GEAR
15 109-00168 BEARING;SPHERICAL ROLLER
16 104-00044 GEAR:PLANETARY NO.2
17 230-00059A CARRIER NO.2
18 230-00066 CARRIER NO.1
19 2403-1046A COVER
20 230-00067 CARRIER NO.2
21 230-00058 CARRIER NO.1


About us

230-00067 104-00045 No.2 Carrier Assembly Dx300lc Solar300ll Dx300lca Dh300-7 Swing Gearbox K1002518B Spare Part

230-00067 104-00045 No.2 Carrier Assembly Dx300lc Solar300ll Dx300lca Dh300-7 Swing Gearbox K1002518B Spare Part
Factory processing

230-00067 104-00045 No.2 Carrier Assembly Dx300lc Solar300ll Dx300lca Dh300-7 Swing Gearbox K1002518B Spare Part

Package

230-00067 104-00045 No.2 Carrier Assembly Dx300lc Solar300ll Dx300lca Dh300-7 Swing Gearbox K1002518B Spare Part

230-00067 104-00045 No.2 Carrier Assembly Dx300lc Solar300ll Dx300lca Dh300-7 Swing Gearbox K1002518B Spare Part


FAQ

Q:What is your sample policy?

A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q:What are your main products?

A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.

If you need other excavator accessories, we can also supply according to your.

Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.

Q:How do I order?

A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.

Q:How do I pay?
A:You can pay through T/T, Alibaba trade guarantee or negotiate payment.
