39Q8-42101 39Q8-42102 39Q8-42100 Travel Reduction Gearbox R300-9 R300 Walking Gearbox Final Drive
39Q8-42101 39Q8-42102 39Q8-42100 Travel Reduction Gearbox R300-9 R300 Walking Gearbox Final Drive
39Q8-42101 39Q8-42102 39Q8-42100 Travel Reduction Gearbox R300-9 R300 Walking Gearbox Final Drive
39Q8-42101 39Q8-42102 39Q8-42100 Travel Reduction Gearbox R300-9 R300 Walking Gearbox Final Drive
39Q8-42101 39Q8-42102 39Q8-42100 Travel Reduction Gearbox R300-9 R300 Walking Gearbox Final Drive
39Q8-42101 39Q8-42102 39Q8-42100 Travel Reduction Gearbox R300-9 R300 Walking Gearbox Final Drive
39Q8-42101 39Q8-42102 39Q8-42100 Travel Reduction Gearbox R300-9 R300 Walking Gearbox Final Drive
39Q8-42101 39Q8-42102 39Q8-42100 Travel Reduction Gearbox R300-9 R300 Walking Gearbox Final Drive
Specifications
Brand Name :
TCY
Model Number :
R300LC-9A
Place of Origin :
Made in china
MOQ :
1
Price :
1200-3000
Payment Terms :
T/T,Alipay,Wechat ...etc., Western Union, MoneyGram, D/P
Delivery Time :
2-3/Negotiate
Packaging Details :
Wooden Case
Product Name: :
Travel Reduction Gearbox
Model :
R300LC-9A
Part NO. :
39Q8-42101 39Q8-42102 39Q8-42100
Weight :
375KG
Box Size :
61*61*77
Application :
Excavator Final Device
Delivery Port :
guangzhou ningbo yiwu
Description

TCY 39Q8-42101 39Q8-42102 39Q8-42100 Travel Reduction Gearbox R300-9 R300 Walking Gearbox Final Drive

1. Efficient transmission
Precision gear design and high-quality materials are used to ensure efficient power transmission and improve the overall working efficiency of the excavator.
2. Strong durability
High-strength materials and advanced manufacturing processes are used to ensure long-term reliable operation under harsh working conditions and extend service life.
3. Compact design
The compact structure saves installation space and is easy to install and maintain in the limited space of the excavator.
4. Good heat dissipation performance
Designed with an efficient heat dissipation structure to prevent overheating and ensure the stability of the equipment under long-term high-load work.
5. Low-noise operation
Noise reduction technology is used to reduce noise during operation, improve the operating environment, and meet environmental protection requirements.
6. High sealing
With good sealing performance, it effectively prevents dust, moisture and other impurities from entering, protects internal parts, and extends service life.
Model: R300LC-9A Part name:Travel Reduction Gearbox
Part number.: 39Q8-42101 39Q8-42102 39Q8-42100 ect. OQ:1PCS
Packing:Wooden case-61*61*77 Place of Origin:China
Aftersale service provided:Online support Apply To:Excavator Final Device
Delivery Time: 1-3 days Or negotiate Note: Other models can be consulted online

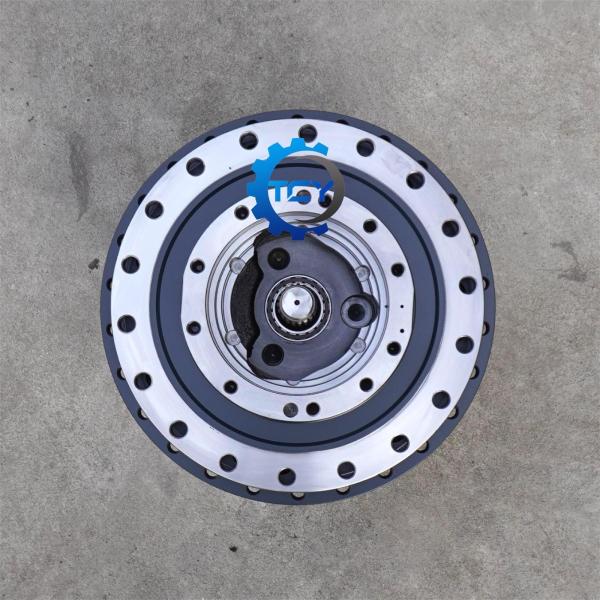

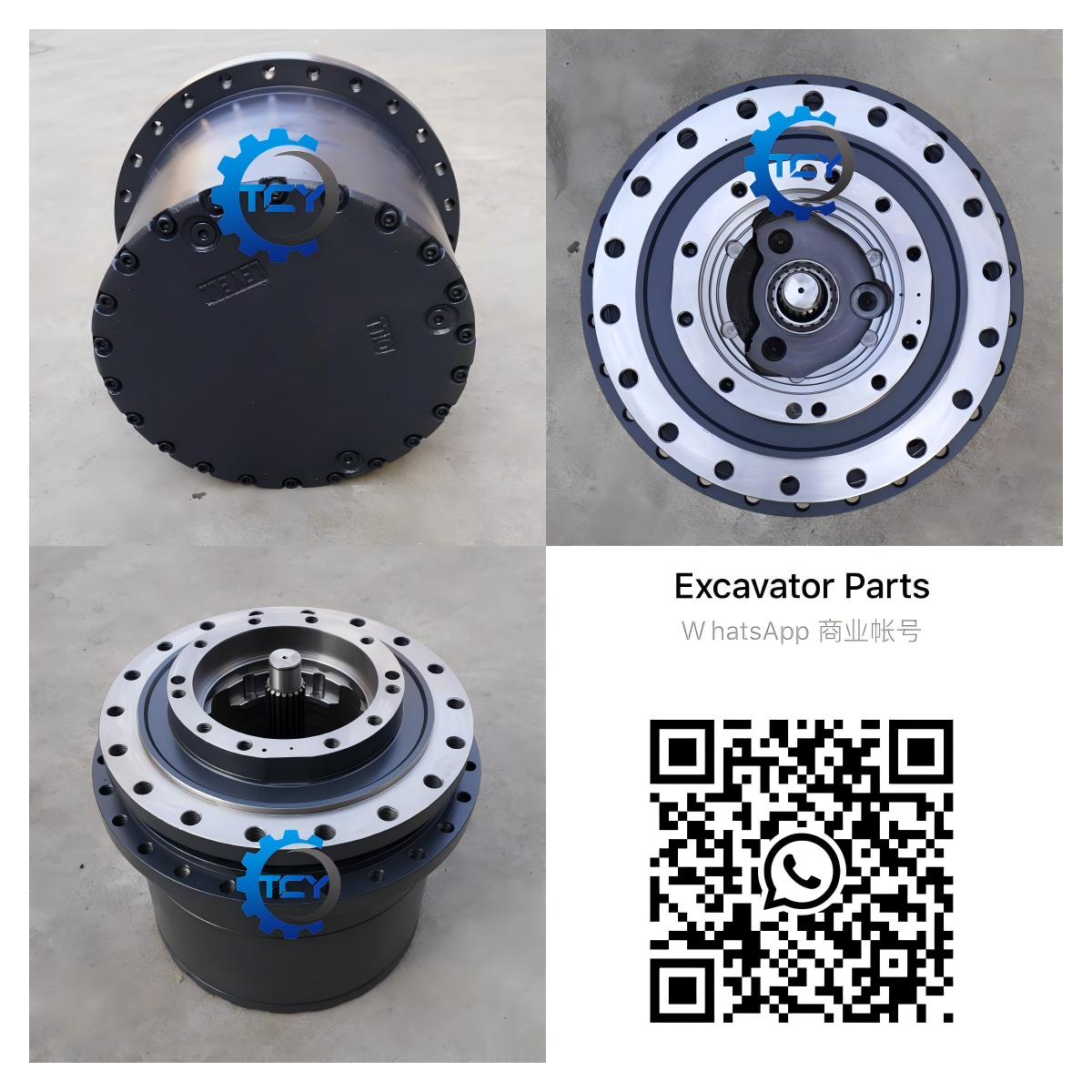

Product Picture

39Q8-42101 39Q8-42102 39Q8-42100 Travel Reduction Gearbox R300-9 R300 Walking Gearbox Final Drive

39Q8-42101 39Q8-42102 39Q8-42100 Travel Reduction Gearbox R300-9 R300 Walking Gearbox Final Drive

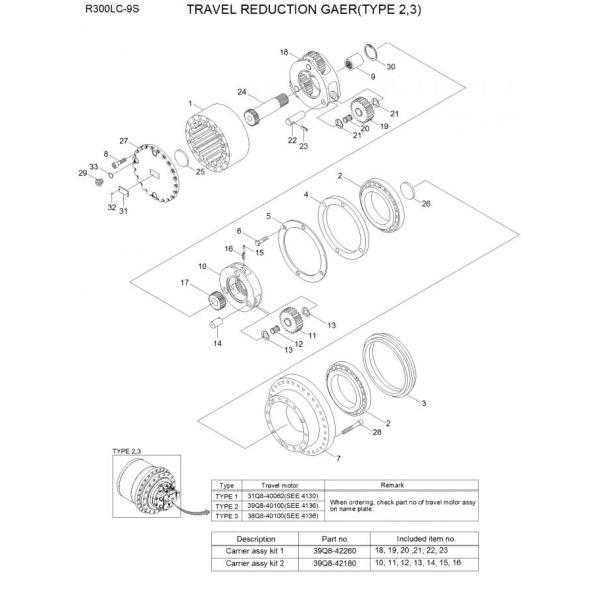

Pos. Part No QTY Parts name
*. [1] TRAVEL MOTOR ASSY
N*-2. 39Q8-42100 [1] TRAVEL REDUCTION GEAR
N*-2. 39Q8-42101 [1] TRAVEL REDUCTION GEAR
1. 39Q8-42110 [1] GEAR-RING
2. 39Q8-42120 [2] BEARING-ANG.BALL
3. 39Q8-42130 [2] SEAL ASSY-FLOATING
4. 39Q8-42140 [1] RING-NUT
5. 39Q8-42150 [1] PLATE-LOCK
6. S017-120206 [4] BOLT-HEX
7. 39Q8-42160 [1] HOUSING
8. S129-070206 [22] BOLT-SOCKET,UNIFIED
9. 39Q8-42170 [1] COUPLING
9. 39Q8-42171 [1] COUPLING
K10 39Q8-42190 [1] CARRIER 2
K11. 39Q8-42200 [3] GEAR-PLANETARY 2
K12. 39Q8-42210 [3] BEARING-NEEDLE
K13 39Q8-42220 [6] WASHER-THRUST 2
K14 39Q8-42230 [3] PIN-CARRIER 2
K15. XKBR-00128 [3] PIN-SPRING 2
K16. 39Q8-42240 [3] PIN-SOLID

17.		 39Q8-42250 [1] GEAR-SUN 2
K18 39Q8-42270 [1] CARRIER 1
K19. 39Q8-42280 [3] GEAR-PLANETARY1
K20. 39Q8-42290 [3] BEARING-NEEDLE 1
K21. 39Q8-42300 [6] WASHER-THRUST 1
K22. 39Q8-42310 [3] PIN-CARRIER 1
K23. S472-600504 [3] PIN-SPRING
24. 39Q8-42320 [1] GEAR-SUN 1
25. 39Q6-42320 [1] PLATE-THRUST
26. 39Q8-42330 [1] PLATE-THRUST
27. 39Q8-42340 [1] COVER
28. S109-18140D [25] BOLT-HEX SOCKET HEAD
N28 S109-18140V [25] BOLT-SOCKET
29. P220-110205 [3] PLUG-HEX
30. S602-045001 [1] RING-RETAINING,C TYPE
31. 39Q8-42350 [1] NAME PLATE
32. 39Q6-41800 [2] RIVET
33. S631-024001 [3] O-RING
K. 39Q8-42180 [1] CARRIER ASST KIT 2
K. 39Q8-42260 [1] CARRIER ASST KIT 1

​

Factory processing

39Q8-42101 39Q8-42102 39Q8-42100 Travel Reduction Gearbox R300-9 R300 Walking Gearbox Final Drive

Exhibition

39Q8-42101 39Q8-42102 39Q8-42100 Travel Reduction Gearbox R300-9 R300 Walking Gearbox Final Drive

Packaging

39Q8-42101 39Q8-42102 39Q8-42100 Travel Reduction Gearbox R300-9 R300 Walking Gearbox Final Drive

39Q8-42101 39Q8-42102 39Q8-42100 Travel Reduction Gearbox R300-9 R300 Walking Gearbox Final Drive

FAQ

Q:What is your sample policy?

A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q:What are your main products?

A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.

If you need other excavator accessories, we can also supply according to your.

Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.

Q:How do I order?

A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.

Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
