Aluminium Camlock Coupling Adapter Fittings Dust Plug , Cam And Groove Hose Fittings
Aluminium Camlock Coupling Adapter Fittings Dust Plug , Cam And Groove Hose Fittings
Specifications
Brand Name :
Duoli
Model Number :
TYPE DP
Place of Origin :
Zhejiang,China(Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
Negotiable
Packaging Details :
standard exporting package or as per customers' requests.
Material :
Aluminum cam and Groove
Color :
White
Type :
Hydraulic Quick Coupling
Assembly Size: :
1/2 " To 8 "
Description

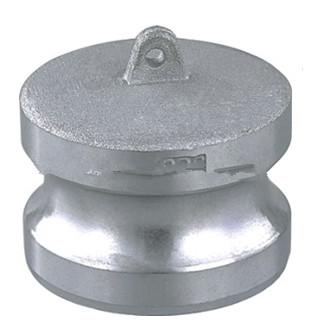

Aluminium Camlock Coupling CAMLOCK Type DP (Dust plug)

Characteristics

Applicaton and features
* Normal presure:16-70MPA, many differs from different items
* Operating temperature:-30~+120
* Application: for oil, gas, vacuum, grease, acid, water plus transport and sealing purpose in auto parts, ship manufacturing industry aerospace industry chemical industry traffic industry power industry centralied heating industry etc
* Thread specification: NPT, PT, SP, DIN
* Connection method: Threaded fitting, flare fitting, welding bite-type fittig, mechanical grip fitting, crimp fitting, end fitting, push-to connect, etc.

Description:E201 is easy to be connected and disconnected with nice appearance and good corrosion resistance. Safe for operation through self-locking connection.

Iitem No.: A B C D E F DC DP
Material:Brass, stainless steel 304/316, aluminum

SIZE
1/2'', 3/4'', 1'' ,1, 1/4'', 1 1/2'', 2'',2 1/2'' ,3'', 4'' ,5'' ,6''

Aluminium Camlock Coupling
1/2" DP-050-AL Dust Plug 1/2" Aluminium
3/4" DP-075-AL Dust Plug 3/4" Aluminium
1" DP-100-AL Dust Plug 1" Aluminium
1 1/4" DP-125-AL Dust Plug 1-1/4" Aluminium
1 1/2" DP-150-AL Dust Plug 1-1/2" Aluminium
2" DP-200-AL Dust Plug 2" Aluminium
2 1/2" DP-250-AL Dust Plug 2-1/2" Aluminium
3" DP-300-AL Dust Plug 3" Aluminium
4" DP-400-AL Dust Plug 4" Aluminium
5" DP-500-AL Dust Plug 5" Aluminium
6" DP-600-AL Dust Plug 6" Aluminium
8" DP-800-AL Dust Plug 8" Aluminium

BODY SIZE(IN) 1/4 3/8 1/2 3/4 1
RATED PRESSURE(PSI) 5000 4000 4000 3000 3000
RATED FLOW(GPM) 3 6 12 28 50
TEPERATURE RANGE(STD SEALS) -20 degree~+80 degree
STANDARD SEAL MATERIAL IS FLOUROCARBON

Assembling


It is forbidden to add sealant and other fillers. In order to obtain better sealing effect, the sealant is coated with sealant, the sealant is driven into the hydraulic system

when connecting the pipe, the pipe should be sufficiently deformed to avoid tension

when connecting the pipe, it should be avoided to be subjected to lateral force, and the lateral force will

cause the seal to be lax


when connecting the pipeline, should be a good one, to avoid multiple removal, otherwise it will make the sealing performance worse
