0.5T One Stage Hydraulic Transmission Jack Gearbox Support Jack
0.5T One Stage Hydraulic Transmission Jack Gearbox Support Jack
0.5T One Stage Hydraulic Transmission Jack Gearbox Support Jack
0.5T One Stage Hydraulic Transmission Jack Gearbox Support Jack
0.5T One Stage Hydraulic Transmission Jack Gearbox Support Jack
0.5T One Stage Hydraulic Transmission Jack Gearbox Support Jack
0.5T One Stage Hydraulic Transmission Jack Gearbox Support Jack
0.5T One Stage Hydraulic Transmission Jack Gearbox Support Jack
0.5T One Stage Hydraulic Transmission Jack Gearbox Support Jack
0.5T One Stage Hydraulic Transmission Jack Gearbox Support Jack
Specifications
Brand Name :
YEEDA
Model Number :
YD05-001
Certification :
CE
Place of Origin :
Zhejiang , China
MOQ :
20 PCS
Price :
USD90.95/PCS
Payment Terms :
T/T
Supply Ability :
1000PCS/MONTH
Delivery Time :
15 days after received deposit
Packaging Details :
Wood Box
Payment term :
T/T 30% deposit, 70% before shipment
Applicable Industries :
Machinery Repair Shops, Vehicle repair
Test Video :
Provided
Model No. :
YD05-001
Warranty of core components :
1 Year
After Warranty Service :
Video technical support, Online support, Spare parts
Name :
0.5T One Stage Hydraulic Transmission Jack
Capacity :
500KGS
Color :
Red,blue, customized color acceptable
Surface treatment :
Powder Coating
MOQ :
20 PCS
Packaging :
Crate
Description

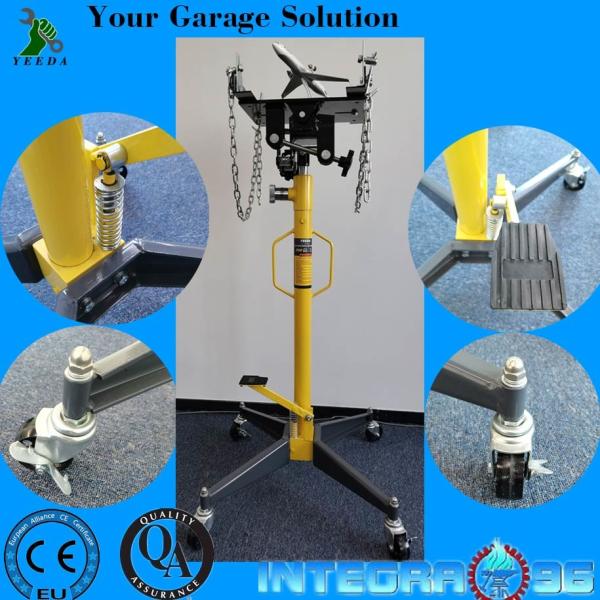

One Stage 0.5 Ton (500kg) Hydraulic Transmission Jack Vertical

Model No.: YD05-001 ,0.5 Ton One Stage Hydraulic Transmission Jack With Adaptor

Manufactured to exacting standards and suitable for general workshop applications. Model features dead man's handle for added safety and strong construction for durability. This economy hydraulic unit is slightly smaller than other models in the range. Can be fitted with Adjustable Gearbox Support - check specification in table.

Features

  • High speed lift to gearbox - just lift piston

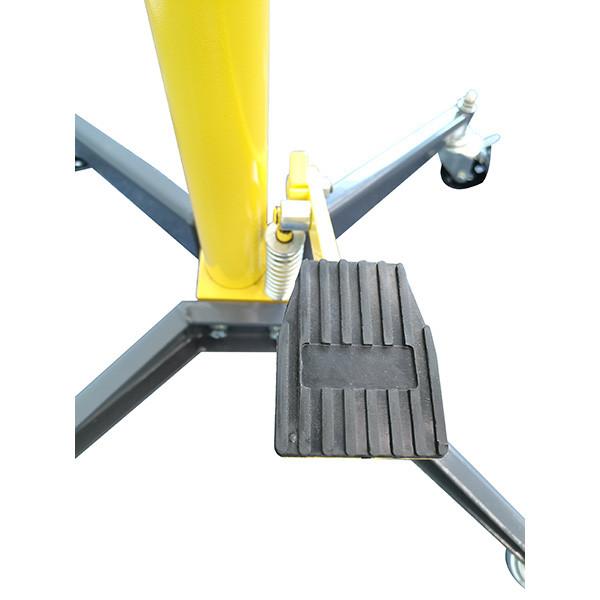

  • Foot pedal operation keeps hands-free

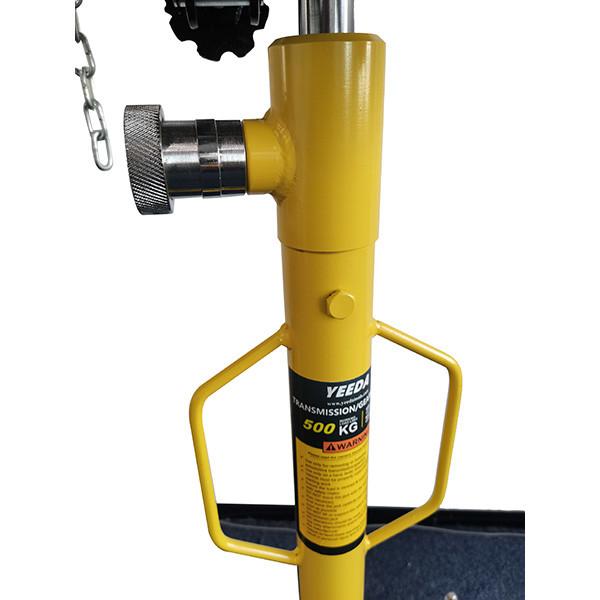

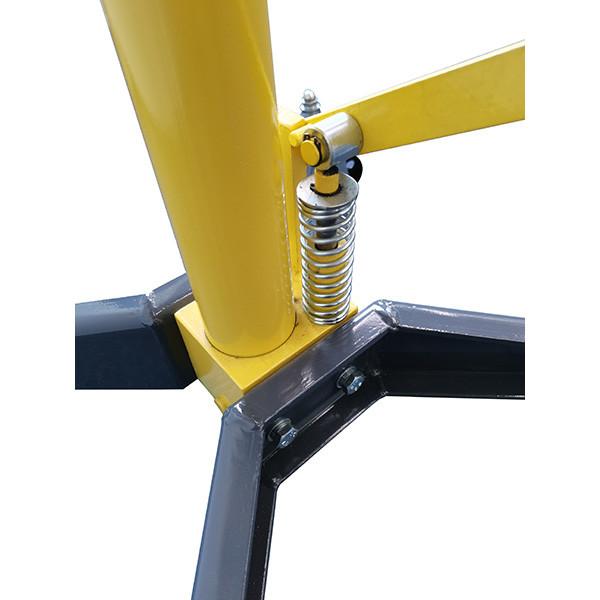

  • Spring loaded dead man's safety release control reduces the risk of inadvertent lowering
  • Highly manoeuvrable on castors

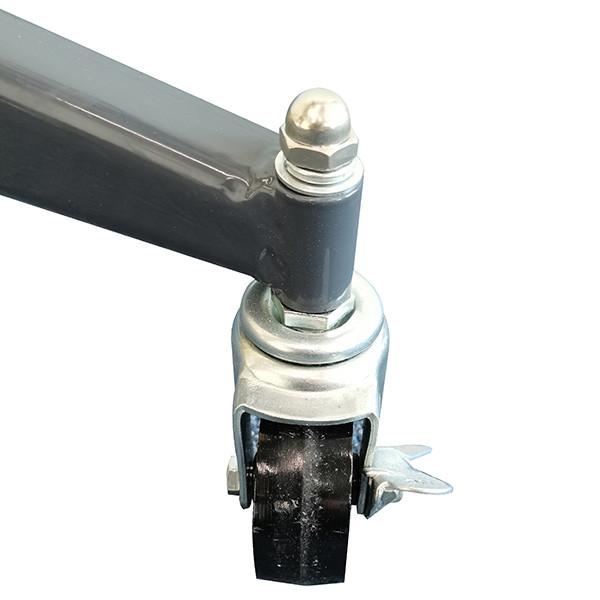

  • two wheels with brake function
  • Colour: Yellow+Gray+Black

Technical details

  • total dimensions (LxW): 70 x 65 x 127 cm
  • drive: hydraulic
  • working height min. and max.: 127 cm - 195 cm
  • stroke: 68 cm
  • gearbox mount platform (LxW): 36 x 27 cm
  • cross base (LxW): 70 x 65 cm
  • wheels diameter: 8 cm
  • backup chain (L): 80 cm
  • bearing capacity (max.): 500 kg
  • material: steel
  • Net weight: 37 kg
  • G.W.: 39 kg
  • Package Size: 1270 x 25 x 27mm
