Vehicle Repair 2 Stage 465mm 1T Hydraulic Transmission Jack Vertical Telescopic
Vehicle Repair 2 Stage 465mm 1T Hydraulic Transmission Jack Vertical Telescopic
Vehicle Repair 2 Stage 465mm 1T Hydraulic Transmission Jack Vertical Telescopic
Vehicle Repair 2 Stage 465mm 1T Hydraulic Transmission Jack Vertical Telescopic
Specifications
Brand Name :
YEEDA
Model Number :
YD05-004
Certification :
CE
Place of Origin :
Zhejiang , China
MOQ :
20 pcs
Payment Terms :
T/T
Supply Ability :
500PCS/MONTH
Delivery Time :
20 days after received deposit
Packaging Details :
Wood Box
Model No. :
YD05-004
Name :
1T Two Stage Hydraulic Transmission Jack
Applicable Industries: :
Machinery Repair Shops, Vehicle repair
Capacity :
1000KGS
Color :
Red,blue, customized color acceptable
Surface treatment :
Powder Coating
MOQ :
20pieces
Packaging :
Crate
Payment term :
T/T 30% deposit, 70% before shipment
Test Video :
Provided
Warranty of core components :
1 Year
After Warranty Service :
Video technical support, Online support, Spare parts
Description

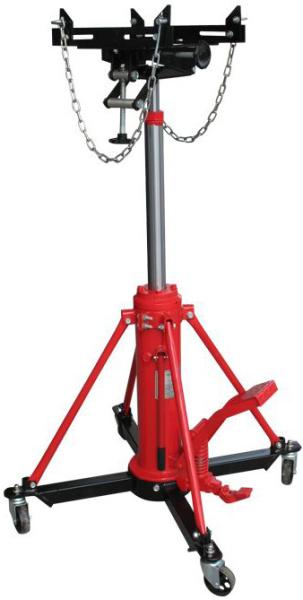

Vehicle Repair 2 Stage 465mm 1T Hydraulic Transmission Jack Vertical Telescopic

Model No.:YD05-004

1T Double Ram Hydraulic Transmission Jack

Expert Quality, hydraulic vertical transmission jack with a telescopic twin stage ram. Fitted with a lowering control system (LCS) which safely lowers the load precisely into positionand the safety overload valveprovides addeduser protection. Operated via the twin position andlsquo;Quick Lift' foot pedal for hands - free operation and attached with chain straps for added support and adjustable supporting struts for increased stability. The nylon wheels provide a quieter and smoother operation whilst preventing damage to workshop floors and the side - mounted handle aids positioning and increases manoeuvrability. The fully adjustable saddle can accept a wide variety of gearboxes/components and the forward, backward and side - to - side tilt features aids the user further.

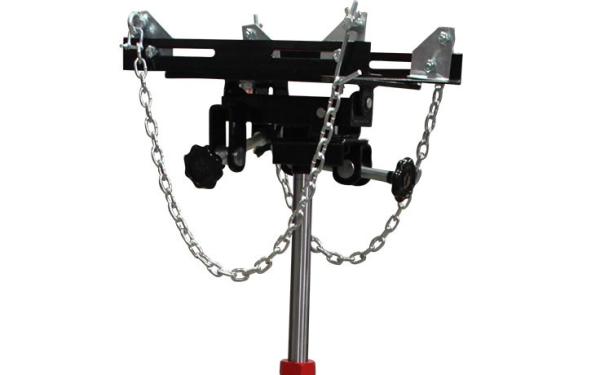

1 Ton 2 Stage Telescoping Transmission Jack offers high end transmission jack features at an affordable price. This full-featured transmission jack has a 2-way adjustable saddle with independently adjustable fingers for greater flexibility and safety. It also has smooth rolling, rubber coated steel casters with locks for easy operation. The internal shaft retention system reduces potential leak points for added durability. Foot operated pump and release pedals provide hands-free lifting and lowering control.

Specification:

Capacity:1000 kgs

Height (Min.)........880mm

Height (Max.).......1810mm

1St Stage Stroke........465mm

2 nd Stage Stroke..........465mm

G.W........85kgs

N.W........75kgs

Packing Size.........55 x 36 x 85cm
