One Stage 0.5 Ton 500kg Hydraulic Transmission Jack
One Stage 0.5 Ton 500kg Hydraulic Transmission Jack
One Stage 0.5 Ton 500kg Hydraulic Transmission Jack
One Stage 0.5 Ton 500kg Hydraulic Transmission Jack
One Stage 0.5 Ton 500kg Hydraulic Transmission Jack
One Stage 0.5 Ton 500kg Hydraulic Transmission Jack
One Stage 0.5 Ton 500kg Hydraulic Transmission Jack
One Stage 0.5 Ton 500kg Hydraulic Transmission Jack
One Stage 0.5 Ton 500kg Hydraulic Transmission Jack
One Stage 0.5 Ton 500kg Hydraulic Transmission Jack
Specifications
Brand Name :
YEEDA
Model Number :
YD05-001
Certification :
CE
Place of Origin :
Zhejiang , China
MOQ :
20 PCS
Payment Terms :
T/T
Supply Ability :
1000PCS/MONTH
Delivery Time :
15 days after received deposit
Price :
USD90.95/PCS
Packaging Details :
Wood Box
Applicable Industries :
Machinery Repair Shops, Vehicle repair
Model No. :
YD05-001
Name :
0.5T One Stage Hydraulic Transmission Jack
Capacity :
500KGS
Color :
Red,blue, customized color acceptable
Surface treatment :
Powder Coating
MOQ :
20 PCS
Packaging :
Crate
Payment term :
T/T 30% deposit, 70% before shipment
Test Video :
Provided
Warranty of core components :
1 Year
After Warranty Service :
Video technical support, Online support, Spare parts
Description

Model No.: YD05-001

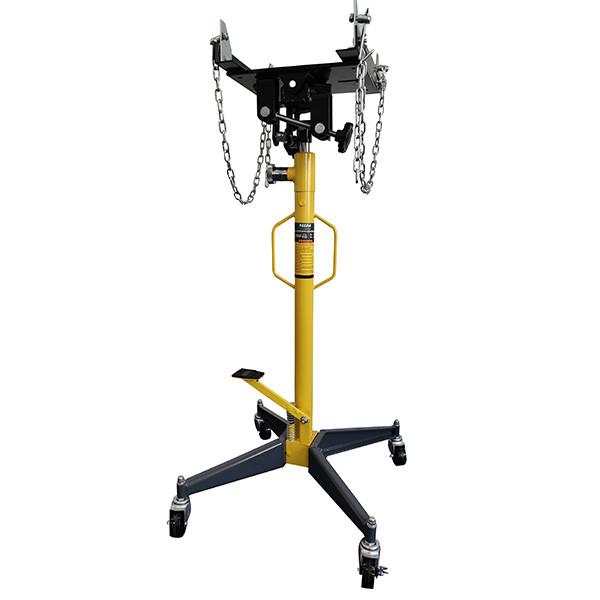

0.5 Ton One Stage Hydraulic Transmission Jack With Adaptor

With this high-quality hydraulic jack from Yeeda, you can easily lift and lower transmissions or other heavy parts with little effort. The transmission jack is capable of lifting up to 0.5 tonnes. This practical tool is simply placed under the vehicle and raised using the foot pedal. You can lower it using the hand wheel, which offers infinite positioning. Order your hydraulic jack from tectake today.

Highlights

  • lifting capacity of 0.5 tonnes
  • adjustable height

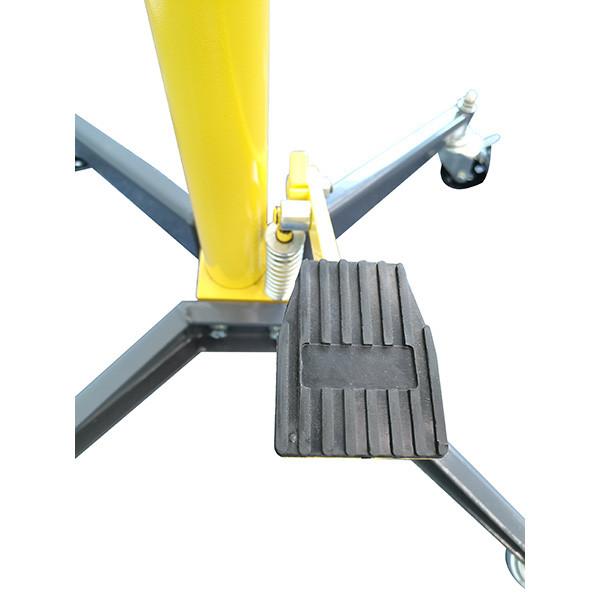

  • hydraulic lift by means of a foot pedal

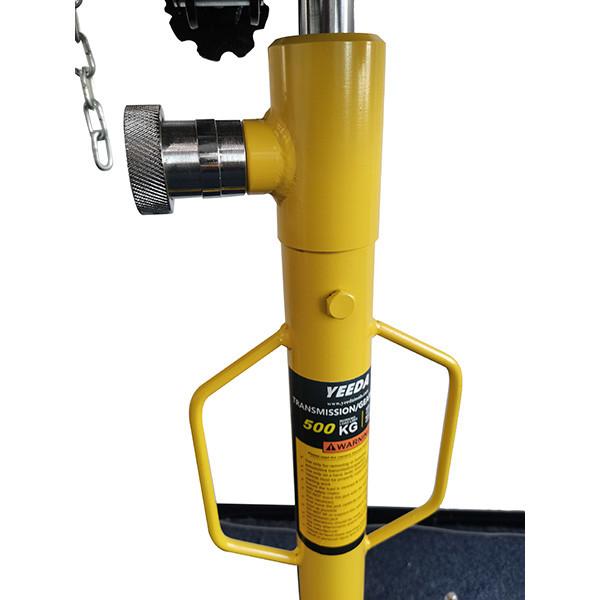

  • lowering by means of a handwheel
  • the lowering speed is especially closely adjustable
  • backup chain for more safety and stability
  • retaining plate individually adjustable to the shape of the gear or transmission

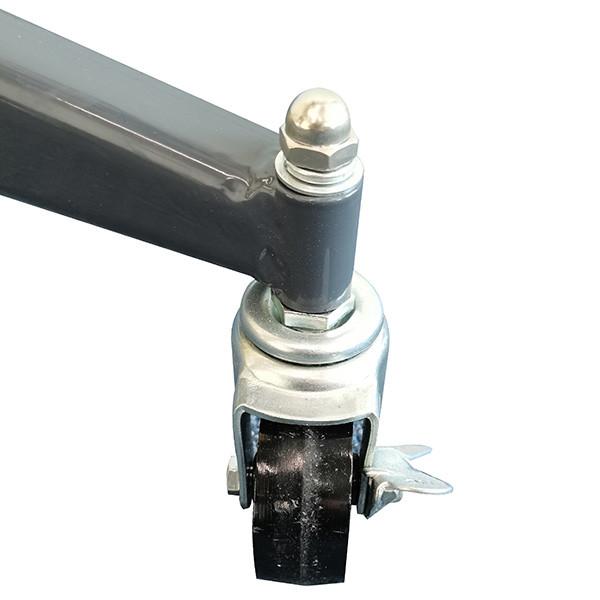

  • stable, steerable wheels
  • two wheels with brake function
  • Colour: Yellow+Gray+Black

Technical details

  • total dimensions (LxW): 70 x 65 x 127 cm
  • drive: hydraulic
  • working height min. and max.: 127 cm - 195 cm
  • stroke: 68 cm
  • gearbox mount platform (LxW): 36 x 27 cm
  • cross base (LxW): 70 x 65 cm
  • wheels diameter: 8 cm
  • backup chain (L): 80 cm
  • bearing capacity (max.): 500 kg
  • material: steel
  • Net weight: 37 kg
  • G.W.: 39 kg
  • Package Size: 1270 x 25 x 27mm

One Stage 0.5 Ton 500kg Hydraulic Transmission Jack
