Three Stages Telescopic 25Ton Pneumatic Hydraulic Jack
Three Stages Telescopic 25Ton Pneumatic Hydraulic Jack
Three Stages Telescopic 25Ton Pneumatic Hydraulic Jack
Three Stages Telescopic 25Ton Pneumatic Hydraulic Jack
Three Stages Telescopic 25Ton Pneumatic Hydraulic Jack
Three Stages Telescopic 25Ton Pneumatic Hydraulic Jack
Three Stages Telescopic 25Ton Pneumatic Hydraulic Jack
Three Stages Telescopic 25Ton Pneumatic Hydraulic Jack
Three Stages Telescopic 25Ton Pneumatic Hydraulic Jack
Three Stages Telescopic 25Ton Pneumatic Hydraulic Jack
Specifications
Brand Name :
YEEDA
Model Number :
YD21-019
Certification :
CE
Place of Origin :
Zhejiang , China
MOQ :
10 PCS
Payment Terms :
T/T
Supply Ability :
200 PCS/MONTH
Delivery Time :
30-45DAYS
Packaging Details :
Carton Box
Model No. :
YD21-019
Name :
10/25/50 Ton Capacity Three Stages Telescopic Air Trolley Jack
Capacity :
50Ton
Material :
Steel
Type :
Air and Hydraulic
Color :
Gray and Yellow, customized color acceptable
MOQ :
10 pcs
Deliver time :
30 days
Package :
carton box
Payment :
1) T/T, 30% Deposit, 70% Against B/L Copy. 2)L/C At Sight.
Description

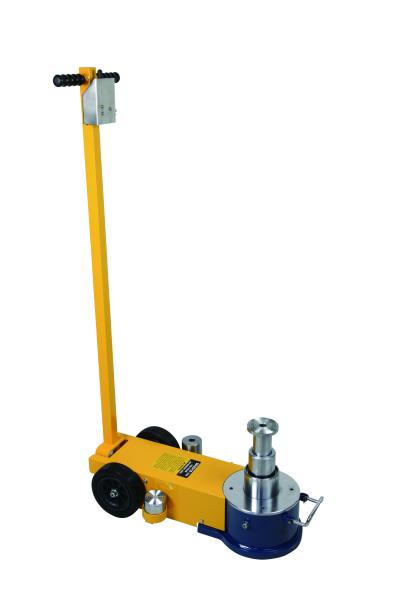

10/25/50 Ton Capacity Three Stages Telescopic Air Trolley Jack In Garage Repair

The true king of rolling floor jacks, the YD21-019 rules the garage with its mighty 110,000-lb(50Ton). lifting capacity. Simply hook it up to a shop air line and experience total ease of use and incredible safety when lifting five-axle semis and other heavy-duty equipment.

Features:

  • 110,000-lb(50Ton). lifting capacity
  • Designed for heavy commercial use
  • Air-hydraulic operation
  • Lowered profile for low ground-clearance vehicles
  • Hardened alloy-plated telescoping ram for maximum durability
  • Heavy-duty steel saddle
  • Large rubber wheels for easy maneuverability
  • Compact design fits easily between tandem wheels
  • Dead-man controls for safe operation

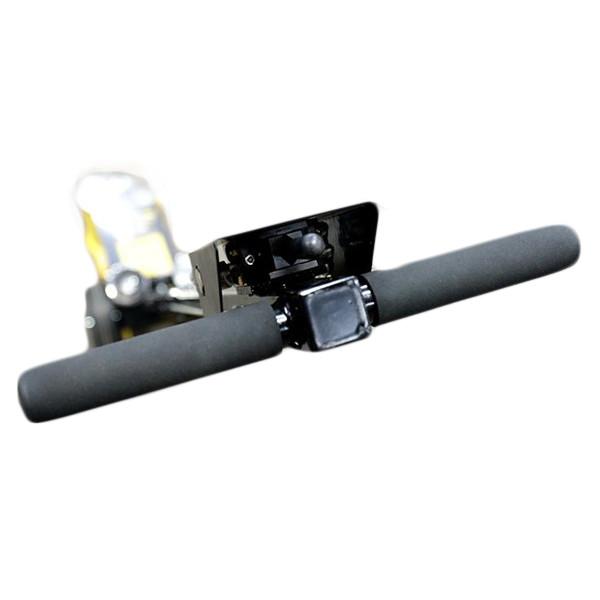

  • Long "T" handle for easy positioning
  • "T" handle can be locked in three different positions
  • Double-sealed for longer service life

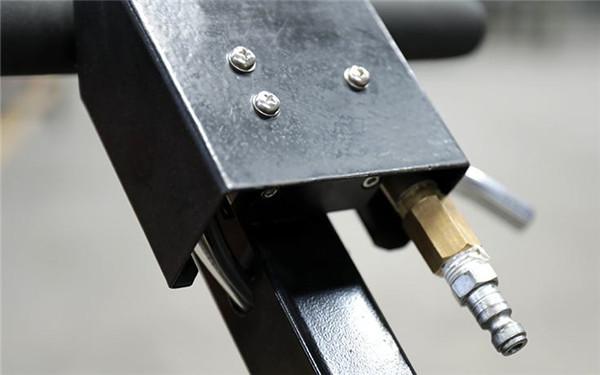

  • Air valve with integrated filter
  • Heavy-duty air motor provides maximum power
  • Sealed hydraulic unit prevents contamination
  • Built-in safety valve prevents jack from being used beyond its rated capacity
  • Additional lifting saddles included

Technical Specification:

Model No. YD21-019
Lifting Capacity - 1st Stage 110,000 lbs. (50,000 kg)
Lifting Capacity - 2nd Stage 55,000 lbs. (25,000 kg)
Lifting Capacity - 3rd Stage 　 22,000 lbs. (10,000 kg)
Min Height 6.5" (150 mm)
Max Height 14.5"(367 mm)
Air Pressure 0.7-1.0Mpa
Shipping Weight 157 lbs. (71.5 kg)
Shipping Dimensions 28" x 14" x 11" (720 x 365 x 300 mm)

Three Stages Telescopic 25Ton Pneumatic Hydraulic Jack

Three Stages Telescopic 25Ton Pneumatic Hydraulic JackThree Stages Telescopic 25Ton Pneumatic Hydraulic Jack
