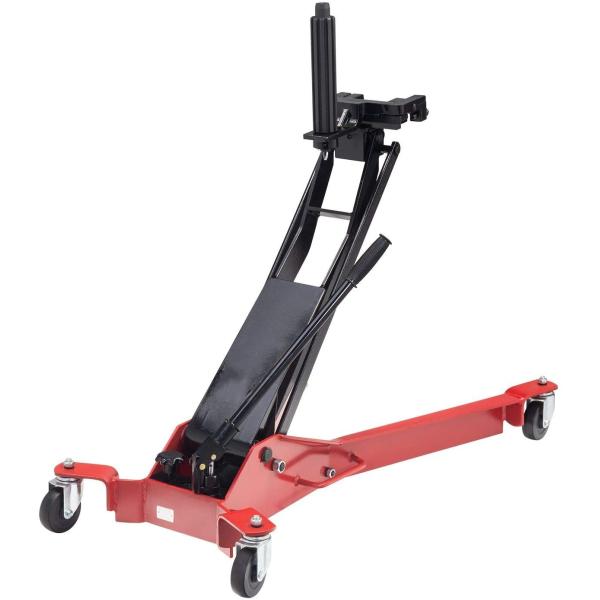

Tilting Saddle 24inch 300LBS Heavy Duty Clutch Jack
Tilting Saddle 24inch 300LBS Heavy Duty Clutch Jack
Tilting Saddle 24inch 300LBS Heavy Duty Clutch Jack
Tilting Saddle 24inch 300LBS Heavy Duty Clutch Jack
Tilting Saddle 24inch 300LBS Heavy Duty Clutch Jack
Tilting Saddle 24inch 300LBS Heavy Duty Clutch Jack
Tilting Saddle 24inch 300LBS Heavy Duty Clutch Jack
Tilting Saddle 24inch 300LBS Heavy Duty Clutch Jack
Tilting Saddle 24inch 300LBS Heavy Duty Clutch Jack
Tilting Saddle 24inch 300LBS Heavy Duty Clutch Jack
Specifications
Brand Name :
YEEDA
Model Number :
YD21-006
Certification :
CE
Place of Origin :
Zhejiang , China
MOQ :
20PCS
Payment Terms :
T/T
Supply Ability :
1000PCS/MONTH
Delivery Time :
30 days after received deposit
Packaging Details :
Carton Box
Model NO. :
YD21-006
Name :
Clutch Jack
Color :
Normal in red and blue, and can be customized
Surface treatment :
Powder Coating
MOQ :
20PCS
Use :
Transport clutches and flywheels
Payment :
1) T/T, 30% deposit, 70% against B/L copy. 2)L/C at sight
Description

YD21-006 /300 LBS Heavy Duty Clutch Jack -Transport clutches and flywheels

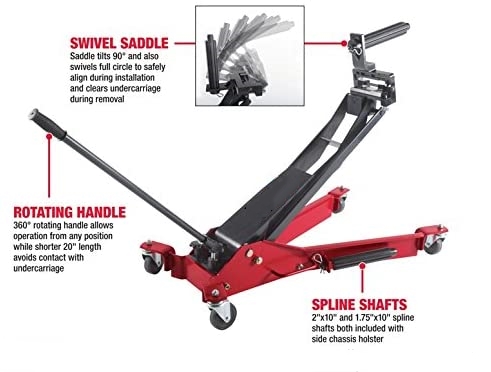

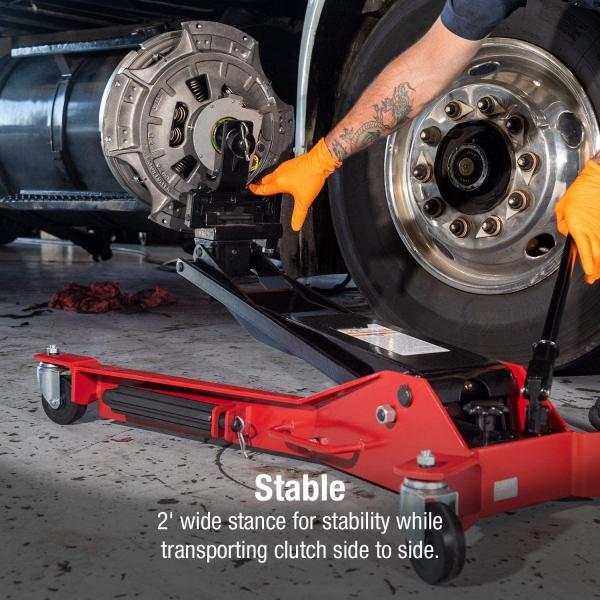

300-pound heavy-heavy duty clutch jack comes standard with both two spline shafts, both included with a side chassis holster. Its swivel saddle tilts 90 degrees and also swivels full-circle to safely align during installation and clear undercarriage during removal. A wide, 24-inch width ensures stability during use, and a 360-degree rotating handle allows operation from any position, while short 20-inch handle length avoids contact with undercarriage.

Features:

  • Clutch/flywheel removal and installation becomes a one man job.
  • Tilting saddle enables clutch to be positioned in either horizontal position for clearing underneath truck or vertical position for installation and removal.
  • Adjustment bolt on saddle aligns clutch and flywheel.
  • Spline shaft rotates 360 degrees, turns left and right for clutch and engine alignment. 2” and 1-3/4” spline shafts included.
  • Conveniently located release valve and 360 degree rotating pump handle allow jack to be operated in any work position.

Technical Specification:

Model No. YD21-006
Weight Capacity 300LB (136KGS)
Min Height 11.34"(288mm)
Max Height 38.58"(980mm)
G.W. 136lb(62kg)
N.W. 132lb(60kg)
Package size 42"x28"x8.6"(1070x710x220mm)

Tilting Saddle 24inch 300LBS Heavy Duty Clutch JackTilting Saddle 24inch 300LBS Heavy Duty Clutch JackTilting Saddle 24inch 300LBS Heavy Duty Clutch Jack
