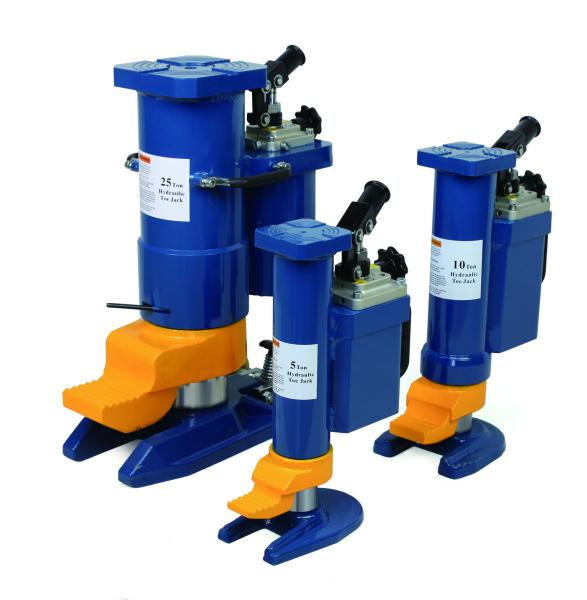

Multi Type Heavy Duty Rotational Hydraulic Toe Lift Jack
Multi Type Heavy Duty Rotational Hydraulic Toe Lift Jack
Multi Type Heavy Duty Rotational Hydraulic Toe Lift Jack
Multi Type Heavy Duty Rotational Hydraulic Toe Lift Jack
Specifications
Brand Name :
YEEDA
Model Number :
YD21-011---YD21-013
Certification :
CE
Place of Origin :
Zhejiang , China
MOQ :
20PCS
Payment Terms :
T/T
Supply Ability :
1000PCS/MONTH
Delivery Time :
30 days after received deposit
Packaging Details :
Carton Box or Plywood Crate
Model NO. :
YD21-011---YD21-013
Name :
Industrial Toe Jack
Color :
Normal in red and blue, and can be customized
Surface treatment :
Powder Coating
MOQ :
20PCS
Use :
lift heavy plant or machinery
Description

YD21-011/ Multi-Type Heavy Duty Hydraulic Rotational Industrial Toe Jack Lifting Gear

- A compact, well constructed jack that can be used in any position, with the housing revolving 360 degrees
- The lowering speed can be accurately adjusted and the jack is protected against overloading

Features :

  • Stable reversed ram structure
  • Suitable for lifting railway, machine, or other heavy appliance
  • Housing revolves 360 degrees
  • Internal device for controlled descend rate
  • Safety valve for protecting from overload
  • Removable pump lever
  • Meet ANSI/ASME PALD 2009 standards

Technical Specification:

Model No. YD21-012 YD21-013 YD21-014
Toe Capacity 11,000LB (5,000KGS) 22,000LB (10,000KGS) 33,000LB (15,000KGS)
Head Capacity 13,200LB (6,000KGS) 30,800LB (14,000KGS) 44,000LB (20,000KGS)
Min./Max Toe Height 1.06"(27mm) / 5.8"(147mm) 1.22"(31mm) / 6.9"(176mm) 1.22"(31mm) / 7.7"(196mm)
Min / Max Head Height 11.5"(293mm)/16.25"(413mm) 12.8"(327mm)/18.6"(472mm) 13.58"(345mm)/20"(510mm)
Toe Size 2.95"x2.2"(75x57mm) 3.3"x2.36"(84x60mm) 3.9"x2.75"(100x70mm)
Base Size 10.6"x7.2"(270x183mm) 11.3"x9.4"(287x240mm) 11.8"x9.8"(300x250mm)
N.W./G.W. 49.5/52.8lb(22.5/24kg) 82.5/85.8lb(37.5/39kg) 106.7/110lb(48.5/50kg)
Package Size 12.6"x9"x12.6"(320x230x320mm) 13.4"x11.4"x14.2"(340x290x360mm) 14.7"x11.8"x16"(374x300x405mm)

Multi Type Heavy Duty Rotational Hydraulic Toe Lift JackMulti Type Heavy Duty Rotational Hydraulic Toe Lift Jack
