0.5t Air Over Hydraulic Transmission Jack 500KGS Hydraulic Transmission Jack
0.5t Air Over Hydraulic Transmission Jack 500KGS Hydraulic Transmission Jack
Specifications
Brand Name :
YEEDA
Certification :
CE
Place of Origin :
Zhejiang , China
MOQ :
20 PCS
Price :
USD90.95/PCS
Payment Terms :
T/T
Supply Ability :
1000PCS/MONTH
Delivery Time :
15 days after received deposit
Packaging Details :
Wood Box
Name :
500KGS Hydraulic Transmission Jack
Applicable Industries :
Machinery Repair Shops, Vehicle repair
Capacity :
500KGS
Color :
Red,blue, customized color acceptable
Surface treatment :
Powder Coating
Packaging :
Crate
Test Video :
Provided
After Warranty Service :
Video technical support, Online support, Spare parts
Description

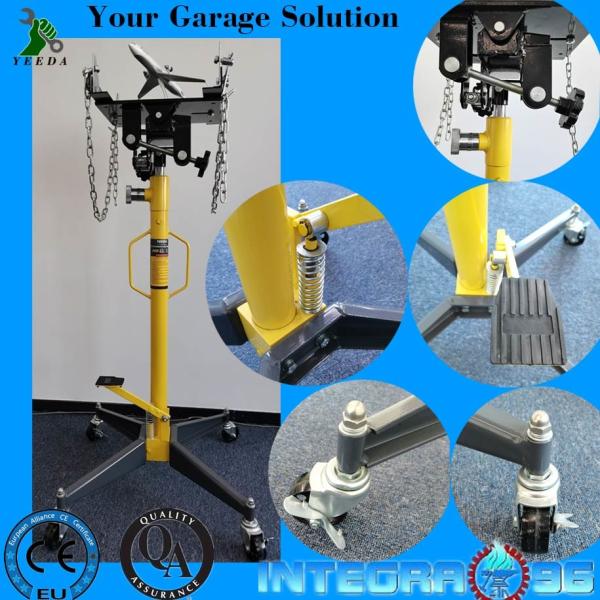

0.5t Air Over Hydraulic Transmission Jack 500KGS Hydraulic Transmission Jack

Compact, upright transmission jack with a maximum lift capacity of 500KGS .Built with the same heavy-duty materials as the larger models, the Hydraulic Transmission Jack allows you to safely and easily remove, transfer and install transmissions, transaxles and other drive-train components weighing up to half a ton. The unit features a built-in safety overload valve for your protection and a foot operated pump for hands free operation. Small storage area? No problem! The cross base (LxW): 70 x 65 cm makes this one of Ranger's most space efficient designs.

Highlights

  • lifting capacity of 0.5 tonnes
  • adjustable height
  • hydraulic lift by means of a foot pedal
  • lowering by means of a handwheel
  • the lowering speed is especially closely adjustable
  • backup chain for more safety and stability
  • retaining plate individually adjustable to the shape of the gear or transmission
  • stable, steerable wheels
  • two wheels with brake function
  • Colour: Yellow+Gray+Black

Technical details

  • total dimensions (LxW): 70 x 65 x 127 cm
  • drive: hydraulic
  • working height min. and max.: 127 cm - 195 cm
  • stroke: 68 cm
  • gearbox mount platform (LxW): 36 x 27 cm
  • cross base (LxW): 70 x 65 cm
  • wheels diameter: 8 cm
  • backup chain (L): 80 cm
  • bearing capacity (max.): 500 kg
  • material: steel
  • Net weight: 37 kg
  • G.W.: 39 kg
  • Package Size: 1270 x 25 x 27mm

0.5t Air Over Hydraulic Transmission Jack 500KGS Hydraulic Transmission Jack
