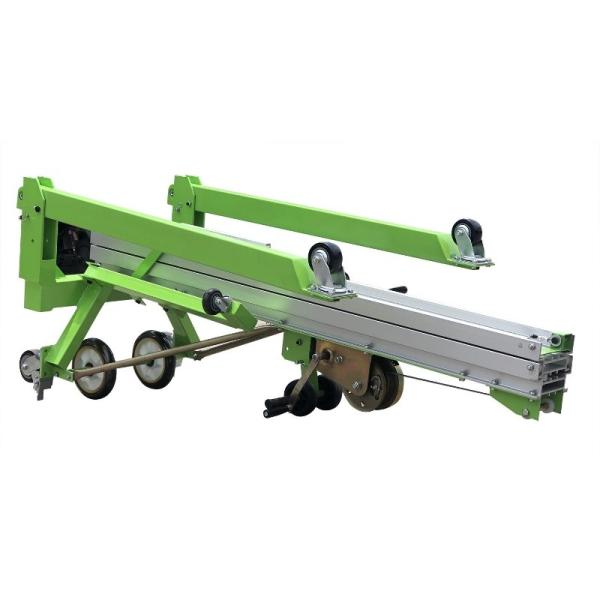

Portable Material Lift with manual winch
Portable Material Lift with manual winch
Portable Material Lift with manual winch
Portable Material Lift with manual winch
Portable Material Lift with manual winch
Portable Material Lift with manual winch
Portable Material Lift with manual winch
Portable Material Lift with manual winch
Portable Material Lift with manual winch
Portable Material Lift with manual winch
Portable Material Lift with manual winch
Portable Material Lift with manual winch
Portable Material Lift with manual winch
Portable Material Lift with manual winch
Portable Material Lift with manual winch
Portable Material Lift with manual winch
Portable Material Lift with manual winch
Portable Material Lift with manual winch
Specifications
Place of Origin :
China
Brand Name :
CHEN LIFT
Certification :
CE
Model Number :
SLA-20
MOQ :
1 set
Price :
$1200-$1500
Packaging Details :
Wrapped in pallets
Delivery Time :
10 days
Payment Terms :
T/T L/C
Supply Ability :
100 sets/month
Working height -up :
6.52m
Working height -down :
5.98m
Working length (m) :
2.09m
storage height (m) :
2m
Storage and working width (cm) :
80cm
Storage length (m :
73.9cm
Weight (kg) :
183kg
Standard loading (kg) :
262kg
Power unit :
man power
After-sales service provided :
Overseas service center available,Free spare parts,Overseas third-party support available
Weight :
163-224kg
Lift drive / actuation :
Hand
Power :
manual
Lift mechanism :
winch
Description

6m Manual Material Lift

Quick Detail:

Name

Manual Material Lift

 Brand Name CHEN LIFT

Lifting Height-“up”

 6.45m

Lifting Height–“down”

 5.93m

Load at 46cm

 363Kg

Load at 61cm

 272kg

Load at 1.07m

 159kg Power

Manual one speed winch

Color

Blue or Optional

Description:

Manually operated material lift with multiple base, winch and load handling options to create just the lift you need. The compact, portable design rolls through standard single doorways and it is easy for one person to set up, operate and transport in a standard pickup or service truck. Maneuverable front casters and rear casters with swivel locks. Plus, a wide variety of options and accessories make them extremely adaptable to fit your specific needs.

Main Features:

1. Manually operated with multiple base, winch and load handling options

2. Compact, portable design

3. Easily rolls through standard single doorways

4. It is easy for one person to set up, operate and transport in a standard pickup or service truck.

5. Maneuverable front casters and rear casters with swivel locks.

6. A wide variety of options and accessories make them extremely adaptable to fit specific needs.

Major Parameters

Model SLA-20
Working height
standard forks-up 6.45m
standard forks-down 5.93m
Adjustable forks-up 6.45m
Adjustable forks-down 5.93m
Flat forks
Boom*** 6.25m
Load platform**-forks up 6.46m
Load platform**-forks down 5.94m
Height-stowed 1.98m
Length-stowed 0.75m
Length-operating 2.2m
Width-stowed 0.79m
—stabilizers lowered 1.9m
Width-straddle base*
Minimum
Maximum
Maximum inside
Ground clearance-center 0.05m
Load height minimum 0.15m
Productivity
Load capacity 　
46cm load center 454kg
61cm load center 272kg
1.07m load center 159kg
Power
Power Single speed winch
Weight
Standard 203kg

Applications:

Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
