Specifications
Place of Origin :
China
Brand Name :
CHEN LIFT
Model Number :
FSEP3-2.7
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Packed with Pallet, Wrapped with Film
Delivery Time :
30 days after order confirmed
Payment Terms :
T/T or L/C
Supply Ability :
100 sets/month
Certification :
CE ISO9001:2008 IPAF member
Max. Platform Height :
2.7m
Max. Working Height :
4.12m
Loading Capacity :
300kg
Platform Size :
600*640 mm
Lifting Motor :
24V/1.6kw
Overall Weight :
450kg
Description

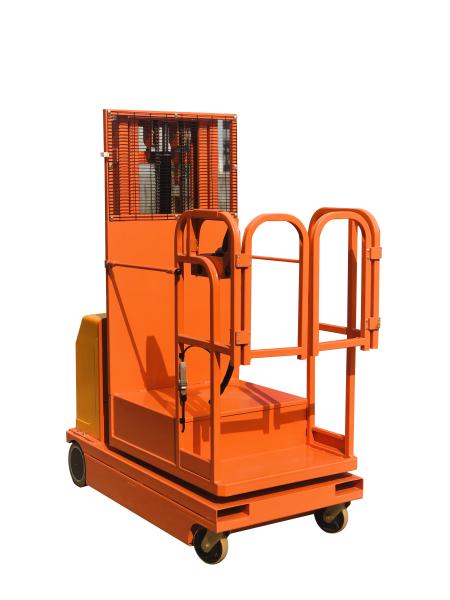

FSEP Model Self Propelled Full Electric Aerial Order Picker

Self-propelled Aerial Order Picker is the best equipment for materials picking and handling. It is widely used in warehouse and supermarket. Easy moving and poperating. Lift or fall steadily. Safe and reliable. Suitable for order picking application in distribution warehouse.

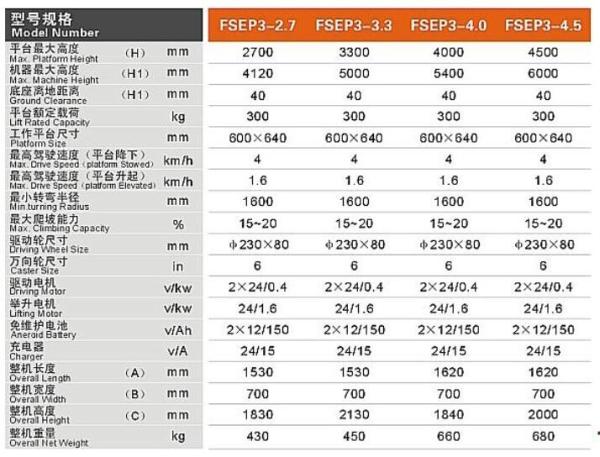

Product name Whole Electromotion Aerial Order Picker -FSEP3-2.7
Load capacity 300KG
Drive motor DC motor
Battery 12V/120Ah battery
Color Yellow , Red ,Green ,or Customized
Max .Platform Height 2700mm/3300mm/4000mm/4500mm
Overall length &Width&height 1530*700*1830mm
Charger 24V/15Ah
Platform size 600*640mm
Operating type Stand

FSEP Model Self Propelled Full Electric Aerial Order Picker Customized Color

Structure Principle & Instruction

1. Charging the battery before you use it. After charging up the battery, please cut off the power, then unplug it.
2. Lift the platform to its top position to check that there is enough hydraulic oil in the system. Refill if necessary with YA-N32 or a similar oil.
3. Turn the key and switch on, the display indicator shows. Choose the mode of rising, control the height by Joy-stick.
4. Change the mode to walk. Also can be controlled by Joy-stick, the "rabbit" pattern indicates speed up, the "tortoise" pattern indicates speed down.


The structure of Self-propelled Aerial Order Picker is as below:
