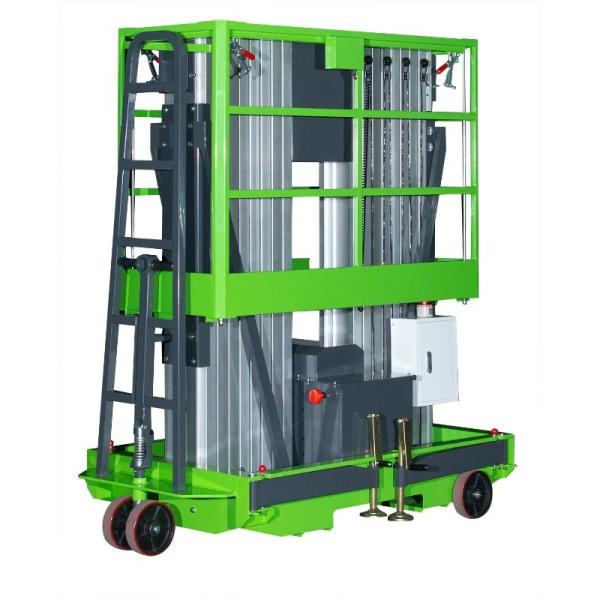

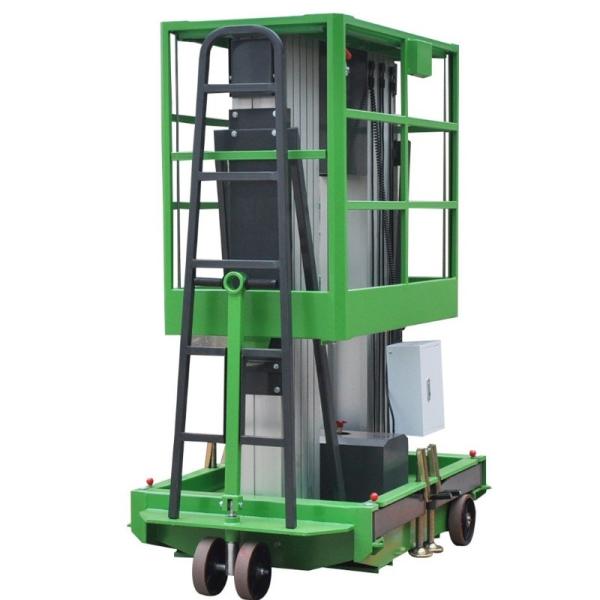

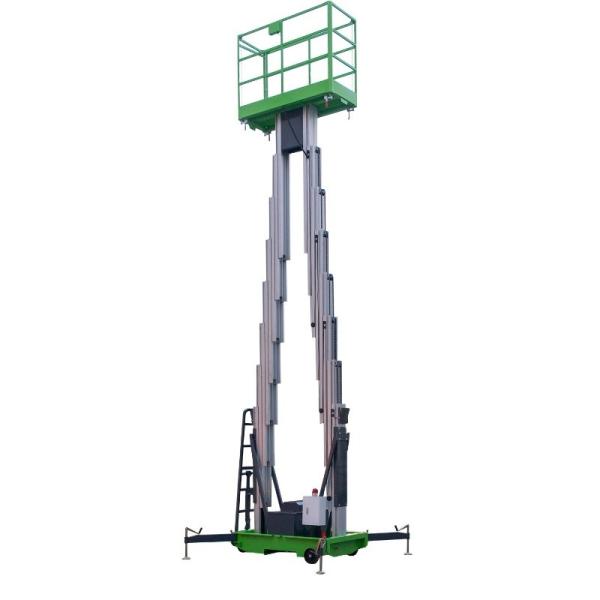

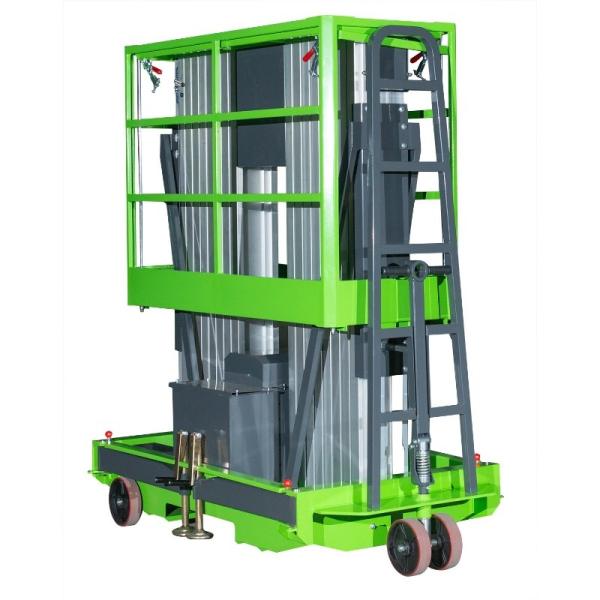

6m Platform Height Mobile Vertical Lifting Platform With Double Mast
6m Platform Height Mobile Vertical Lifting Platform With Double Mast
6m Platform Height Mobile Vertical Lifting Platform With Double Mast
6m Platform Height Mobile Vertical Lifting Platform With Double Mast
Specifications
Brand Name :
Bestmax Lift
Model Number :
ME600-2
Certification :
ISO； IPAF； CE
Place of Origin :
CN
MOQ :
1 unit
Price :
USD 1800-2500
Payment Terms :
L/C, T/T
Supply Ability :
2000 units per month
Delivery Time :
Within 15 days
Packaging Details :
Packed in Pallet, Wrapped with Film
Material :
Aluminum
Max Platform Height :
6m
Max Working Height :
8m
Platform Size :
0.60*0.55 m
Standard Power :
AC
Optional Power :
DC; AC+DC
Description

6m Platform Height 200kg Load Capacity Mobile Vertical Lifting Platform with Double Mast

Description

Name Aluminum Aerial Work Platform Brand Name BestmaxLift
Loading Capacity 200Kg Platform Height 6m
Platform Size 1.3*0.62m Color Yellow, Green or Optional
Motor Power 1.10Kw Power Supply AC/DC


Application
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds.


Main Configurations of Man Pushing Around Aluminum Aerial Work Platform

6m Platform Height Mobile Vertical Lifting Platform With Double Mast

Safety Features of Man pushing Around Aluminum Aerial Work Platform

  • Toe protection boards on the platform
  • Anti-skid deck on the platform
  • Auxiliary Lowering
  • Dual limit switch for safety
  • Operation voltage at 24V
  • Safety belt holding
  • Anti-burst valve on the cylinder
  • Emergency stop button both on platform and ground
  • Short Circuit and leakage protection system for AC version
  • Fuse for DC version for electric shock protection

Major Parameter of Single Mast Aluminum Aerial Work Platform

Model NO. Working Height (m) Loading Capacity (Kg) Platform
Size (m)		 Lifting
Power (Kw)		 Weight
(Kg)		 Dimension (m)
GTWY6-100 8 130 0.60x0.55 0.75 260 1.38x0.80x1.65
GTWY8-100 10 130 0.60x0.55 0.75 300 1.38x0.80x1.98
GTWY9-100 11 130 0.60x0.55 0.75 326 1.44x0.85x1.98
GTWY10-100 12 130 0.60x0.55 0.75 400 1.44x0.85x1.98


Major Parameters of Double Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY6-200 8 200 1.3x0.62 1.1 380 1.38x0.85x2.00
GTWY8-200 10 200 1.3x0.62 1.1 480 1.38x0.95x2.00
GTWY9-200 11 200 1.3x0.62 1.1 548 1.58x0.95x2.00
GTWY10-200 12 200 1.52x0.62 1.1 610 1.68x0.95x2.00
GTWY12-200 14 200 1.52x0.62 1.1 650 1.68x0.95x2.00
GTWY14-200 16 150 1.52x0.62 1.1 650 1.68x0.95x2.00


Major Parameters of Triple Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY10-300 12 300 1.43x0.88 2.2 900 1.78x1.10x2.05
GTWY12-300 14 300 1.43x0.88 2.2 950 1.78x1.10x2.05
GTWY14-300 16 250 1.63x0.88 2.2 980 1.90x1.10x2.32


Major Parameters of Quadruple Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY10-400 12 300 1.40x0.80 2.2 950 1.78x1.25x2.05
GTWY12-400 14 300 1.40x0.80 2.2 980 1.78x1.25x 2.32
GTWY14-400 16 200 1.40x0.80 2.2 1000 1.90x1.25x2.32
GTWY16-400 18 200 1.40x0.80 2.2 1100 2.28x1.35x2.82


Major Parameters of Six Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY16-420 18 150 1.45x0.90 2.2/1.1 1200 2.28x1.35x2.18
GTWY18-420 20 150 1.45x0.90 2.2/1.1 1400 2.28x1.35x2.42
GTWY20-420 22 150 1.55x0.90 2.2/1.1 1780 2.50x1.40x2.62
GTWY22-420 24 150 1.55x0.90 2.2/1.1 2000 3.00x1.60x2.82

6m Platform Height Mobile Vertical Lifting Platform With Double Mast

Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

Customer Visiting

6m Platform Height Mobile Vertical Lifting Platform With Double Mast
