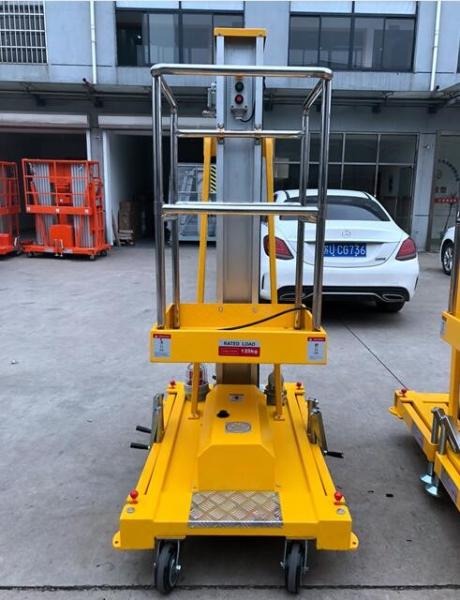

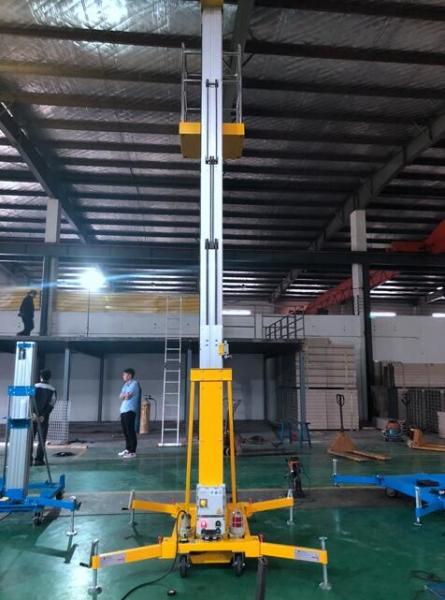

6 Meters Flame Proof Aluminum Aerial Work Platform Single Mast Man Lift 130Kg
6 Meters Flame Proof Aluminum Aerial Work Platform Single Mast Man Lift 130Kg
6 Meters Flame Proof Aluminum Aerial Work Platform Single Mast Man Lift 130Kg
6 Meters Flame Proof Aluminum Aerial Work Platform Single Mast Man Lift 130Kg
6 Meters Flame Proof Aluminum Aerial Work Platform Single Mast Man Lift 130Kg
6 Meters Flame Proof Aluminum Aerial Work Platform Single Mast Man Lift 130Kg
Specifications
Brand Name :
CHEN LIFT
Model Number :
GTWY6-100-FP
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
200 sets per month
Delivery Time :
30 days after down payment
Packaging Details :
Wrapped in pallet or in wooden case
Lift capacity :
130kg
Platform height :
6m
Working height :
8m
Platform size :
0.60*0.55m
Lifting Motor :
0.75kw
Overall Size :
1.54*0.85*2.00m
Description

6 Meters Flame Proof Aluminum Aerial Work Platform Single Mast Man Lift

Quick Detail:

Name Flame Proof Aluminum Aerial Work Platform Brand Name CHEN LIFT
Loading Capacity 130Kg Platform Height 6m
Platform Size 0.60*0.55m Color Yellow or Optional
Motor Power 0.75Kw Power Supply AC/DC

Description:

Explosion Proof Aerial Work Platform has these parts made into explosion proof type: electric box, socket and plug. And all the aluminum aerial work platform can be made into this explosion proof type. Besides that, Single Aluminum Aerial Work Platforms has light structure and small size.

Applications:

It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 4m to 9m and lifting capacity varies from 100kg to 125kg.The power sources could be 220V, 380V or chargeable battery.

Main Features:

1. Most rigid aluminum alloy profile

2. Auxiliary platform lowering

3. Multi-guide pulley on mast

4. Durable base system

5. Chassis with level gauge

6. DC working power on the platform

7. Easily rolls through a narrow space

8. Emergency stop button

9. Over load protection

10. Built-in pressure release valve

11. Dual activated up/down switch

12. Locking Key Switch

Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet
