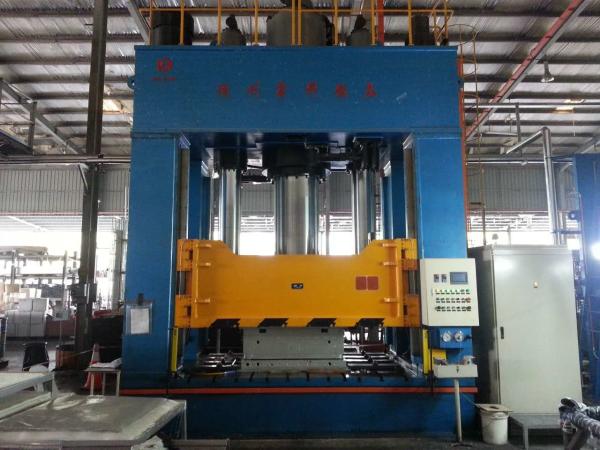

1600 Ton Automatic Hydraulic Press Machine For Bicycle Crank High Precision
1600 Ton Automatic Hydraulic Press Machine For Bicycle Crank High Precision
Specifications
Brand Name :
XINKE
Certification :
CE; ISO9001:2000
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD10000-1000000 per set
Supply Ability :
8 sets per month
Delivery Time :
3 month
Packaging Details :
normal
Structure :
Frame
Drive :
Hydraulic
Control :
PLC
Application :
Extrude bicycle parts
Description

1600 Ton Automatic Hydraulic Press Machine For Bicycle Crank High Precision

Features:

  1. Finite element analyzed straight sided frame, high rigidity and precision
  2. Integrated cartridge valve is adopted to ensure tiny hydraulic impact
  3. Individual electrical & electronic control system with Mitsubishi PLC
  4. Operation mode: Manual, automatic
  5. Stroke, working force can be preset. Suitable for precision extruding production of shafts, gears
  6. 8-facet guiding, high resistance to unbalanced loading
  7. High strokes of working speed for high working efficiency

Application:

Suitable for the process of cold extruding and hot extruding (equipped with ingot heating device).

A complete forging line (with ingot heating equipment) is designed and available on request

Technical Data:

Item 　 HY61-1600
Nominal force kN 16000
Return force kN 1200
Ejecting force kN 800
Pressure of medium Mpa 25
Stroke of slider mm 700
Ejecting stroke mm 350
the opening daylight mm 1200
Size of worktable
(L.R. x F.B.)		 mm×mm 1000x1300
Speed of slider Descend mm/s 300
Working mm/s 8-24
Return mm/s 215
Speed of ejecting Ejecting mm/s 120
Return mm/s 240
Motor power kW 148
Machine weight t 50

1600 Ton Automatic Hydraulic Press Machine For Bicycle Crank High Precision1600 Ton Automatic Hydraulic Press Machine For Bicycle Crank High Precision1600 Ton Automatic Hydraulic Press Machine For Bicycle Crank High Precision
